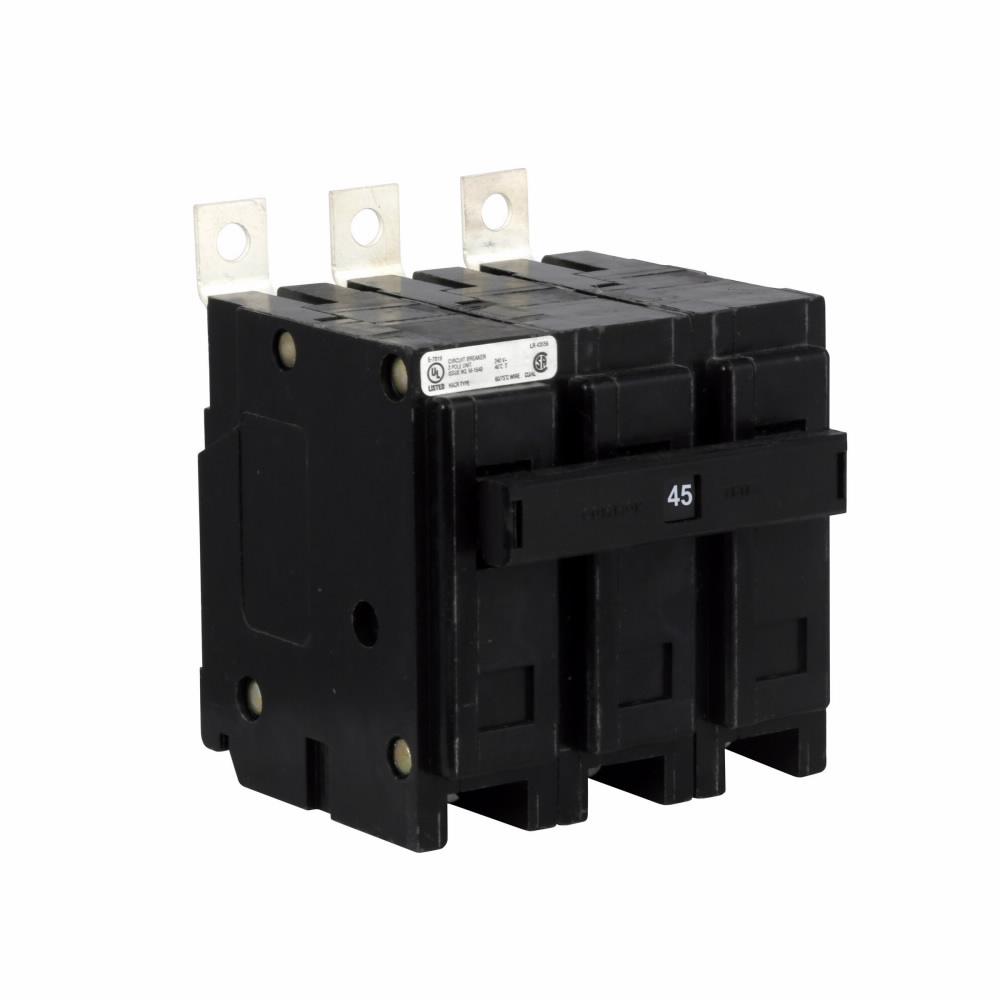

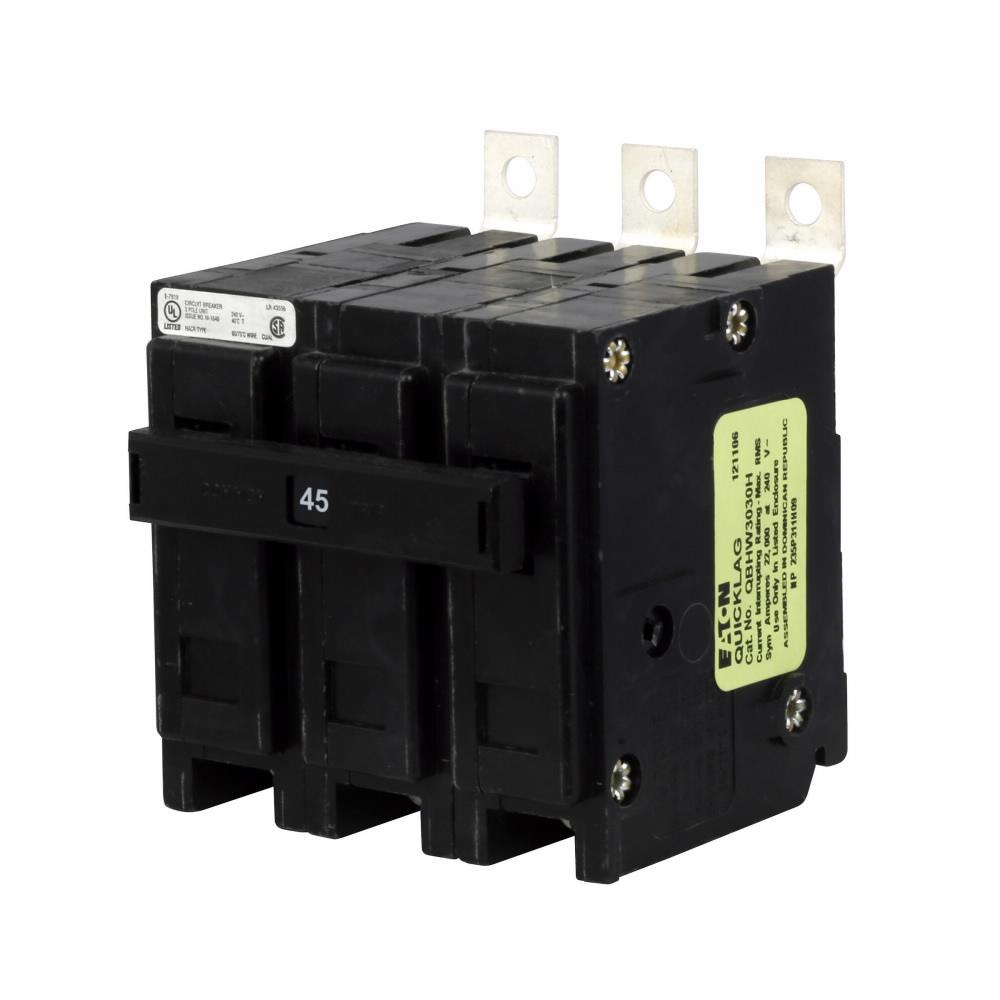

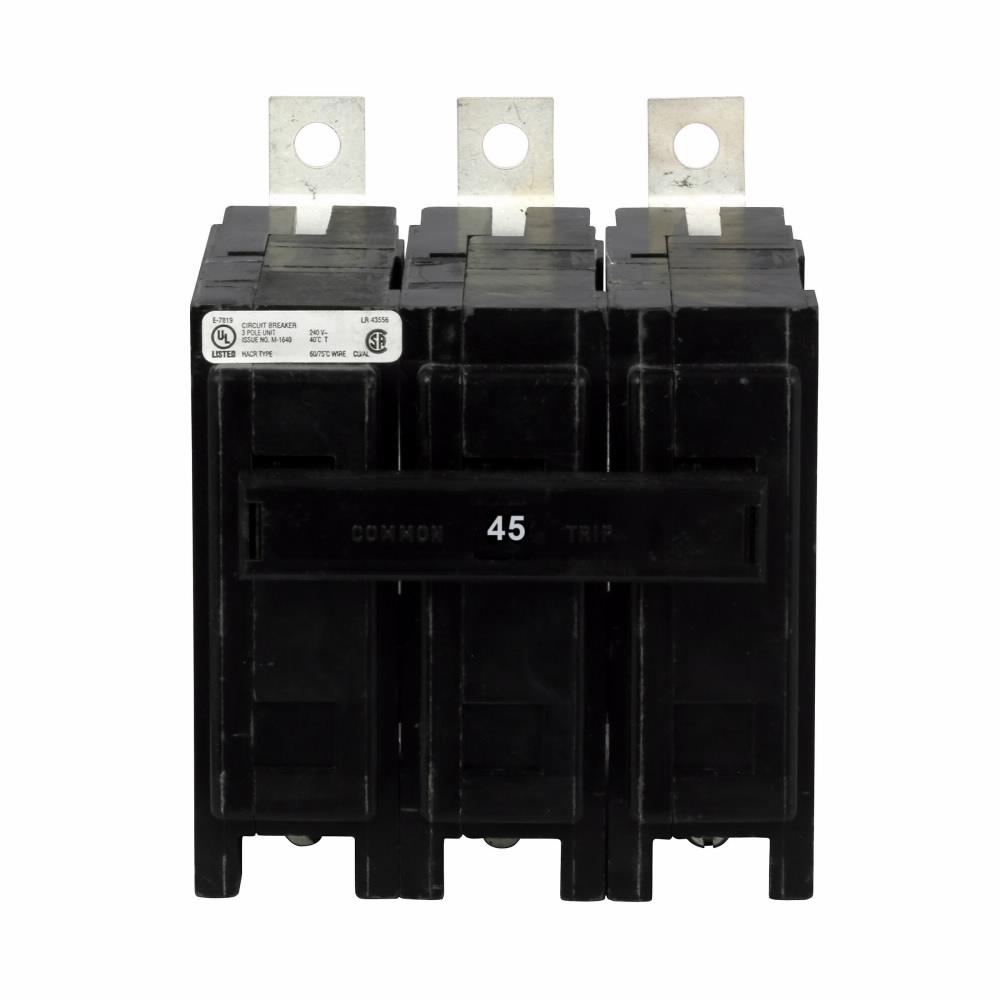

QBHW3045H - Cutler Hammer 45 Amp 3 Pole 240V Quicklag Thermal Magnetic Circuit Breaker Bolt-On

QBHW3045H

QBHW3045H is a Cutler Hammer 3 pole, 45 amp thermal magnetic circuit breaker designed for industrial applications.QBHW3045H features a 240V voltage rating with a 22kA interrupting capacity, bolt-on mounting, and long time plus instantaneous trip functions for reliable circuit protection. It is UL listed and CSA certified, suitable for use in HACR rated equipment.

Key Specifications
• Amperage: 45 A
• Voltage: 120/240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kAIC at 240V
• Series/Frame: QBHW Quicklag
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Certifications: UL Listed, CSA Certified
• Terminal Connection: Line and Load Side Lug
• Wire Gauge: 14 to 4 AWG, Copper/Aluminum
• Standards: HACR Rated
• Temperature Rating: 40 ¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBHW3045H
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : QBHW
• Voltage : 240
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679393420
• GTIN : 00786679393420
• Country of Origin : Dominican Republic
• Dimensions : 3.8 in x 4.4 in x 3.3 in (Length/Depth x Height x Width)
• Weight : 1.15
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
• Wire Size : 14 to 4 AWG, Cu/Al
