QBHW3015H - Cutler Hammer 15A 240V 3 Pole QBHW Bolt-On Thermal-Magnetic Circuit Breaker, 22 kAIC, UL Listed, CSA Certified, HACR Rated

QBHW3015H

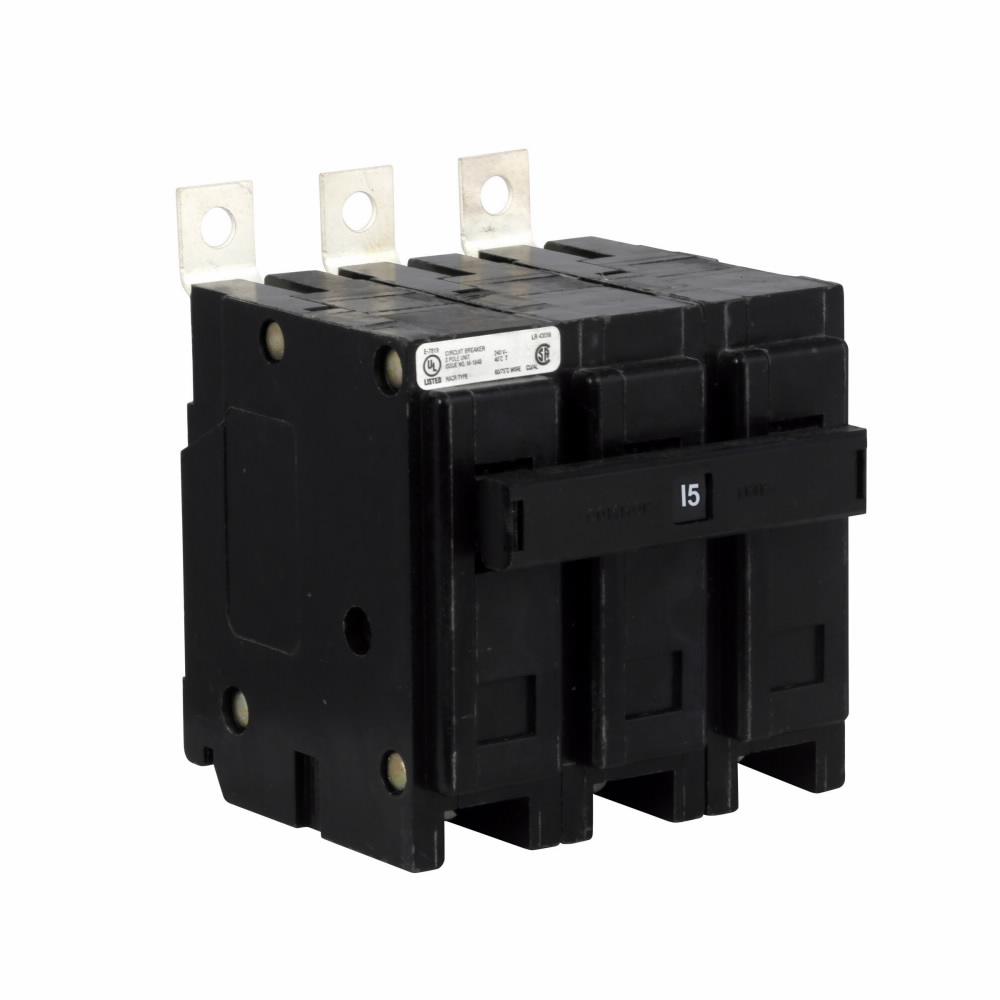

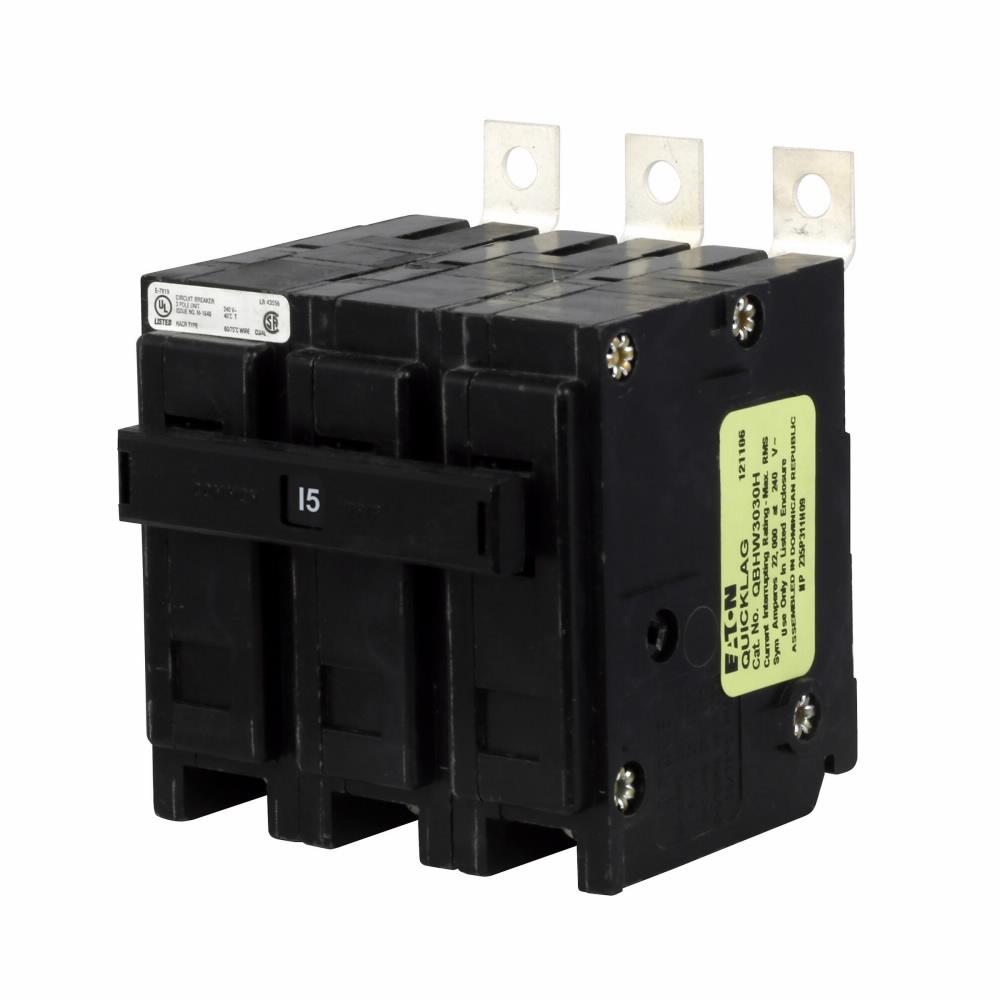

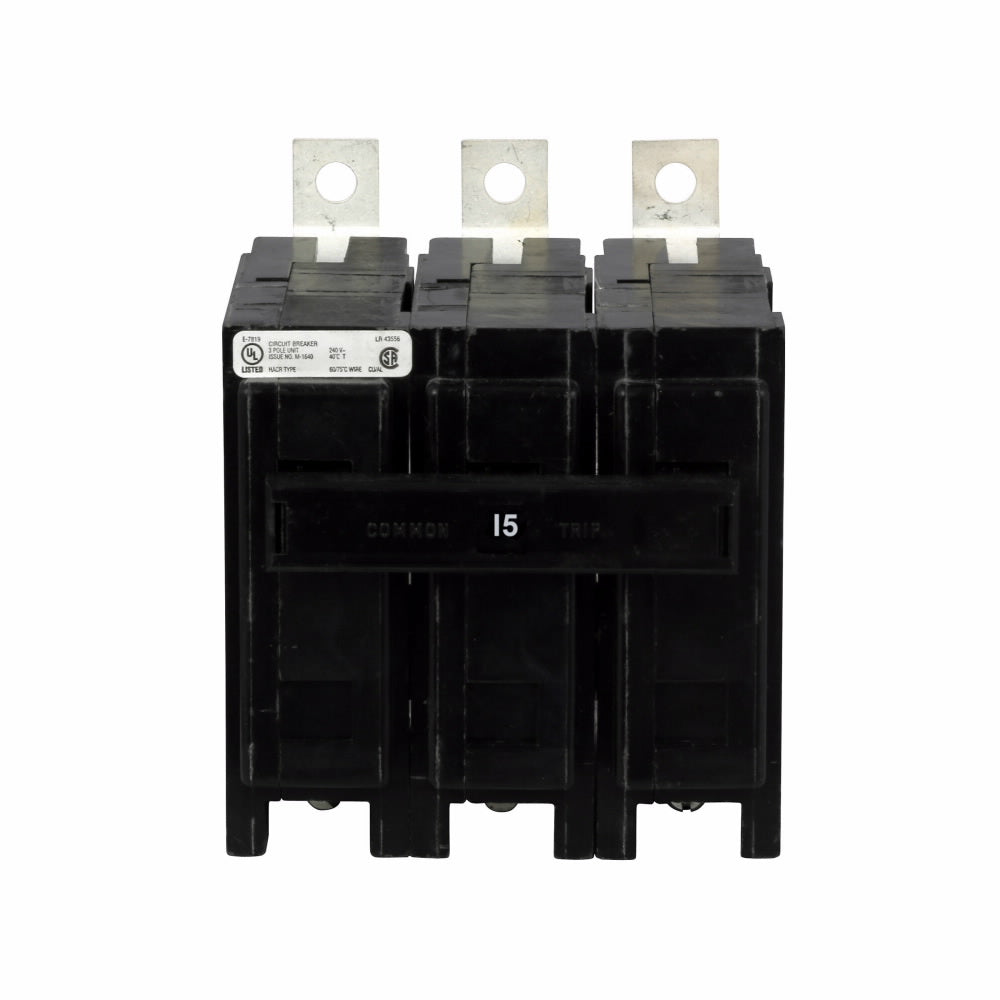

QBHW3015H is a Cutler Hammer (Eaton) three-pole, bolt-on, thermal-magnetic circuit breaker designed for industrial applications.

This Quicklag series breaker features a 15A amperage rating, 240V voltage rating, and a 22 kAIC interrupt rating. It is certified for safety and performance with UL Listing and CSA Certification, and is HACR rated for HVAC equipment. The non-interchangeable trip unit ensures reliable protection, and the bolt-on mounting provides secure installation in compatible panels.

Key Specifications
• Part Number: QBHW3015H
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 15A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Bolt-on
• Interrupt Rating: 22 kAIC
• Series/Frame: QBHW
• Trip Unit: Thermal-magnetic, non-interchangeable
• Certifications: UL Listed, CSA Certified, HACR Rated
• Dimensions: 3.8 in (L) x 4.9 in (H) x 3.1 in (W)
• Weight: 1.15 lb
• Warranty: 1 year

At Essential Parts, we offer fast shipping, &l(more...)

Specifications

• Part Number: QBHW3015H
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : QBHW
• Voltage : 240
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786679393154
• GTIN : 00786679393154
• Country of Origin : Dominican Republic
• Dimensions : 3.8 in x 4.9 in x 3.1 in (Length/Depth x Height x Width)
• Weight : 1.15
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
