QBHW3040H - Cutler Hammer 40 Amp 3 Pole 240V Bolt-On Circuit Breaker, QBHW Series, 22kA Interrupt, Thermal Magnetic Trip, UL/CSA/CE Certified

QBHW3040H

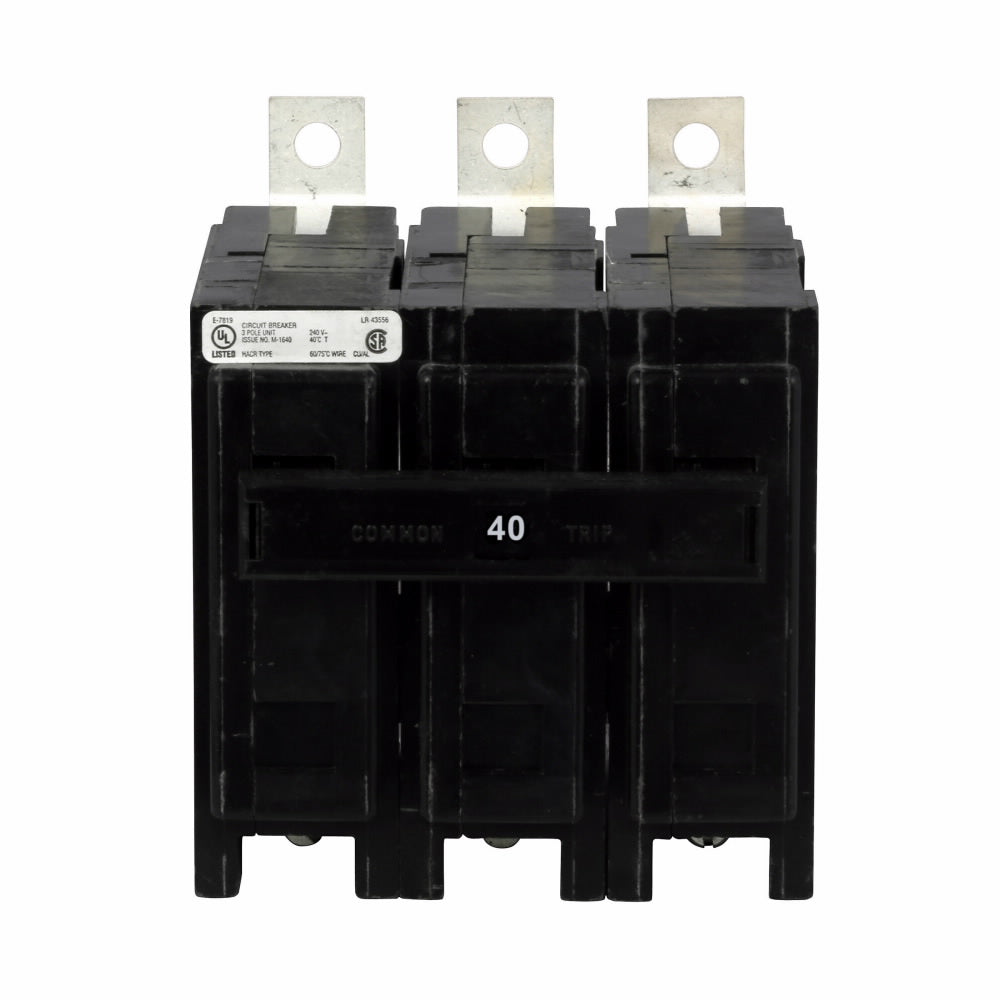

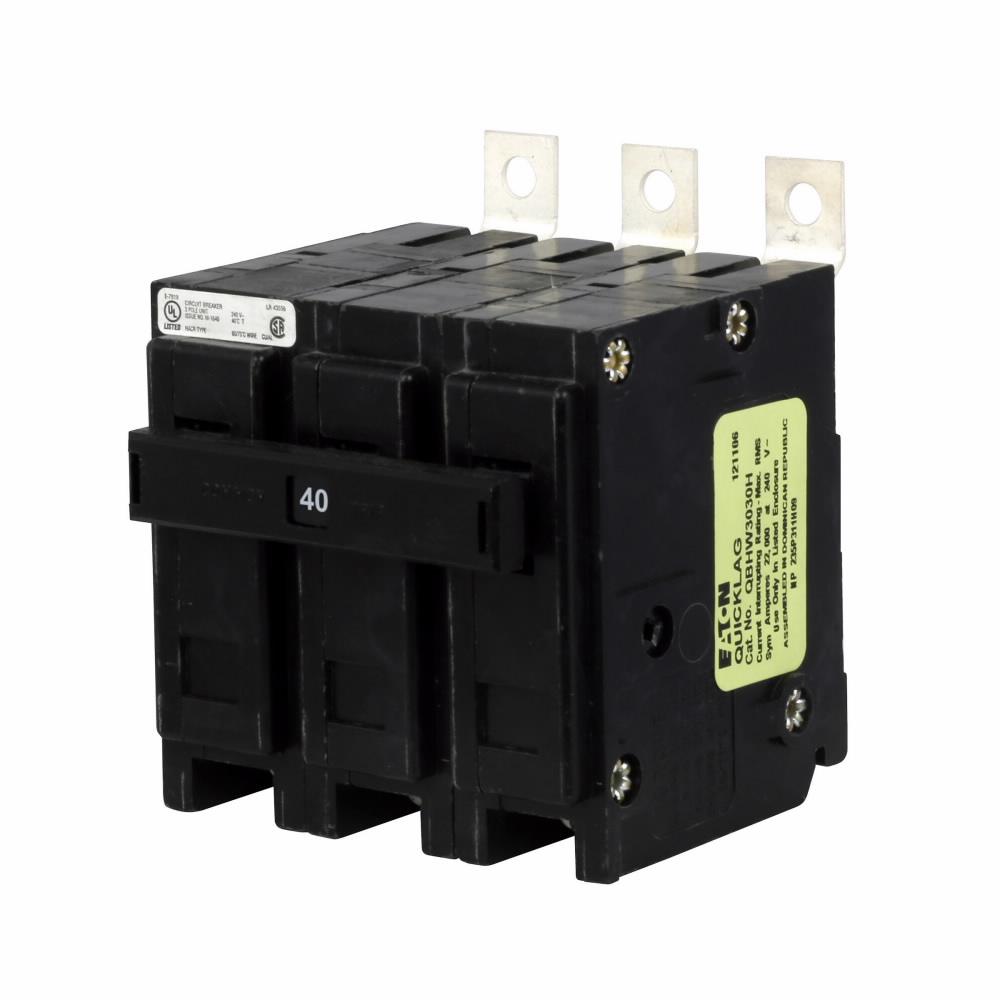

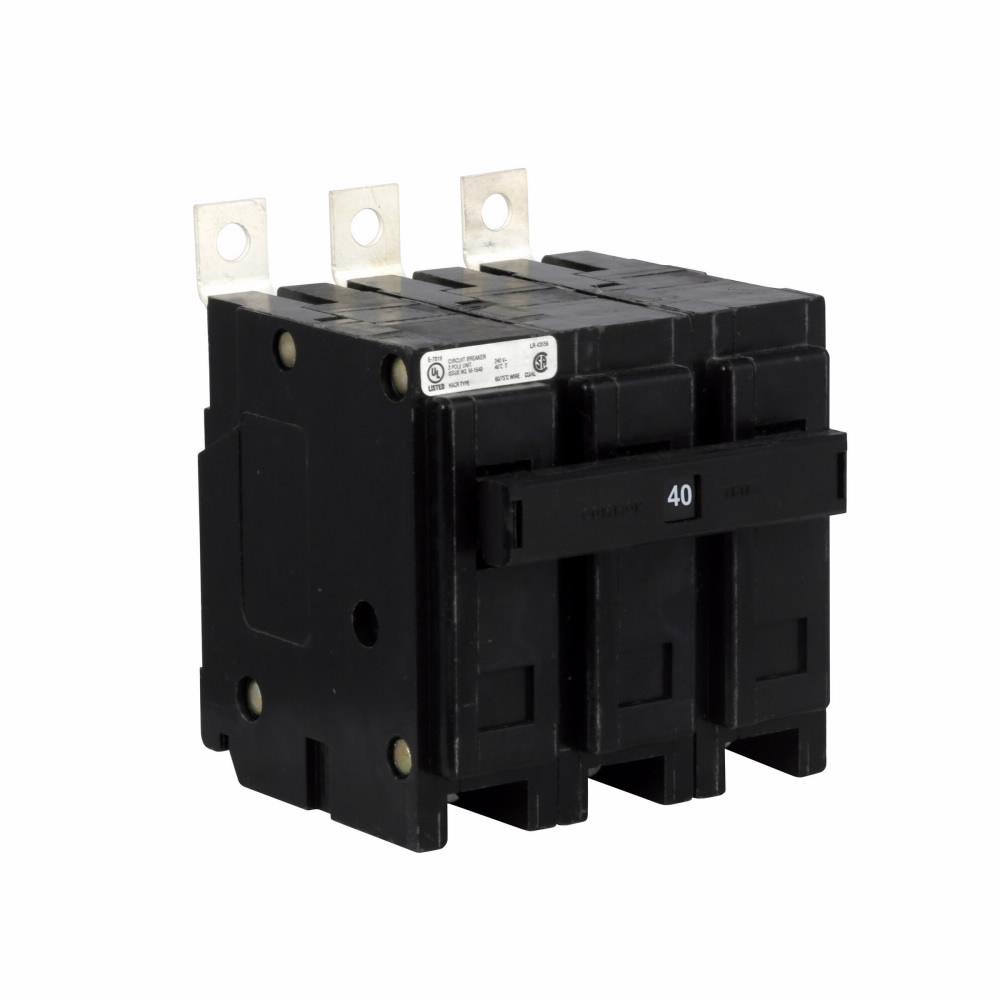

QBHW3040H is a Cutler Hammer 3-pole, 40 amp, 240V bolt-on circuit breaker designed for commercial and light industrial applications.

This thermal magnetic trip circuit breaker features a 22,000 amp interrupting rating at 240V AC, non-interchangeable trip, and is approved for use in air conditioning, heating, and refrigeration (HACR) applications. It is part of the QBHW series with a 100A frame and offers reliable protection with direct bolt-on mounting for enhanced durability and performance.

Key Specifications
• Part Number: QBHW3040H
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 40A at 40¡C
• Voltage: 240V AC (120/240V AC system)
• Poles: 3
• Mounting Type: Bolt-on
• Interrupt Rating: 22,000A at 240V AC
• Series/Frame: QBHW, 100A frame
• Trip Unit: Thermal magnetic, fixed, non-interchangeable
• Certifications: UL 489, CSA, CE, HACR
• Terminal: Extended tang line, box lug load
• Wire Size: 8 to 1/0 AWG (aluminum/copper)
• Application: Commercial, light industrial, HVAC

&lt(more...)

Specifications

• Part Number: QBHW3040H
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : QBHW
• Voltage : 240
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786679393406
• GTIN : 00786679393406
• Country of Origin : Dominican Republic
• Dimensions : 3.8 in x 4.7 in x 3.2 in (Length/Depth x Height x Width)
• Weight : 1.1
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
