Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QB1015CAF

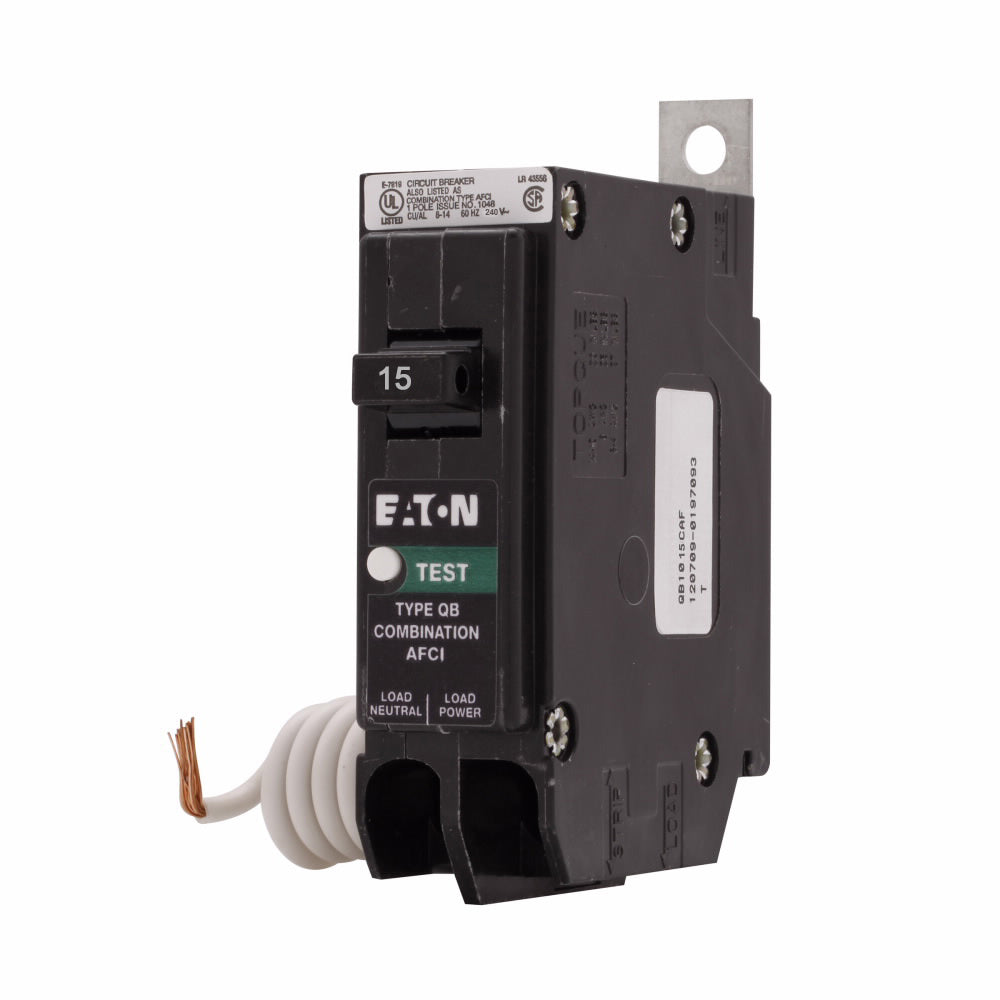

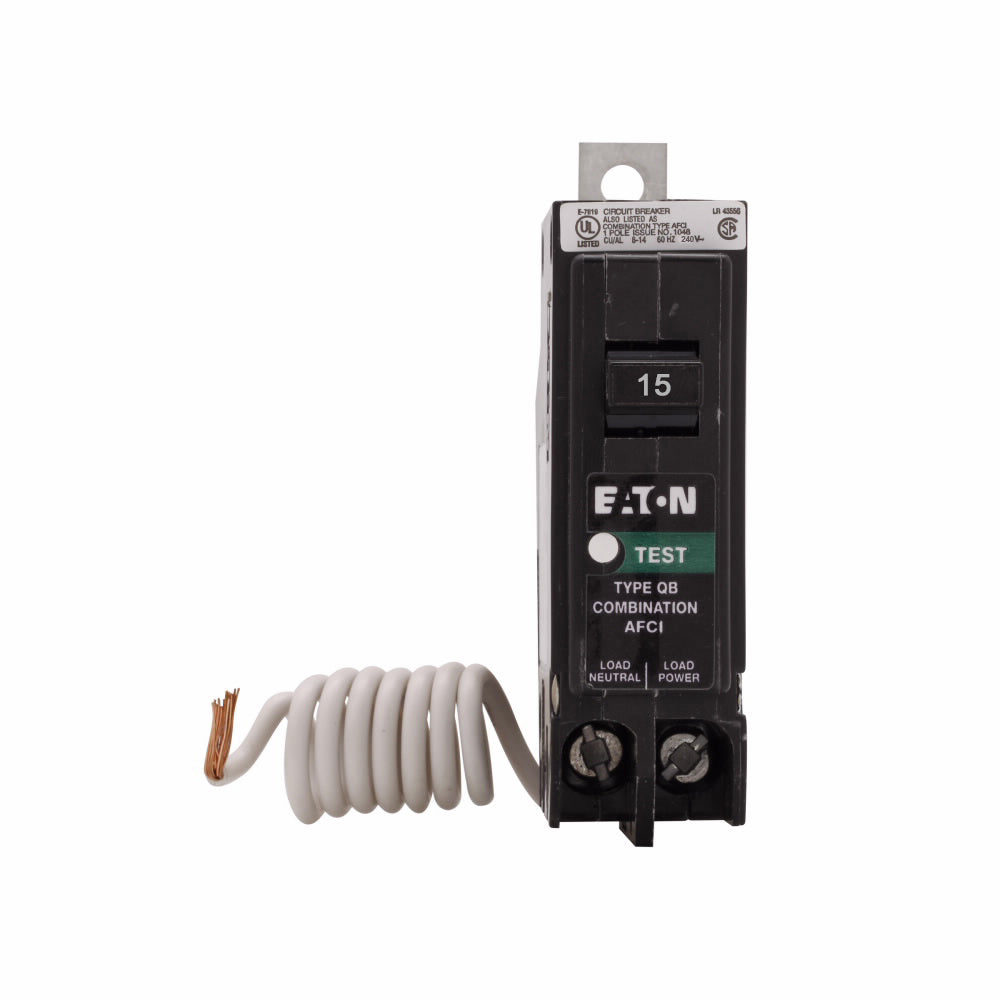

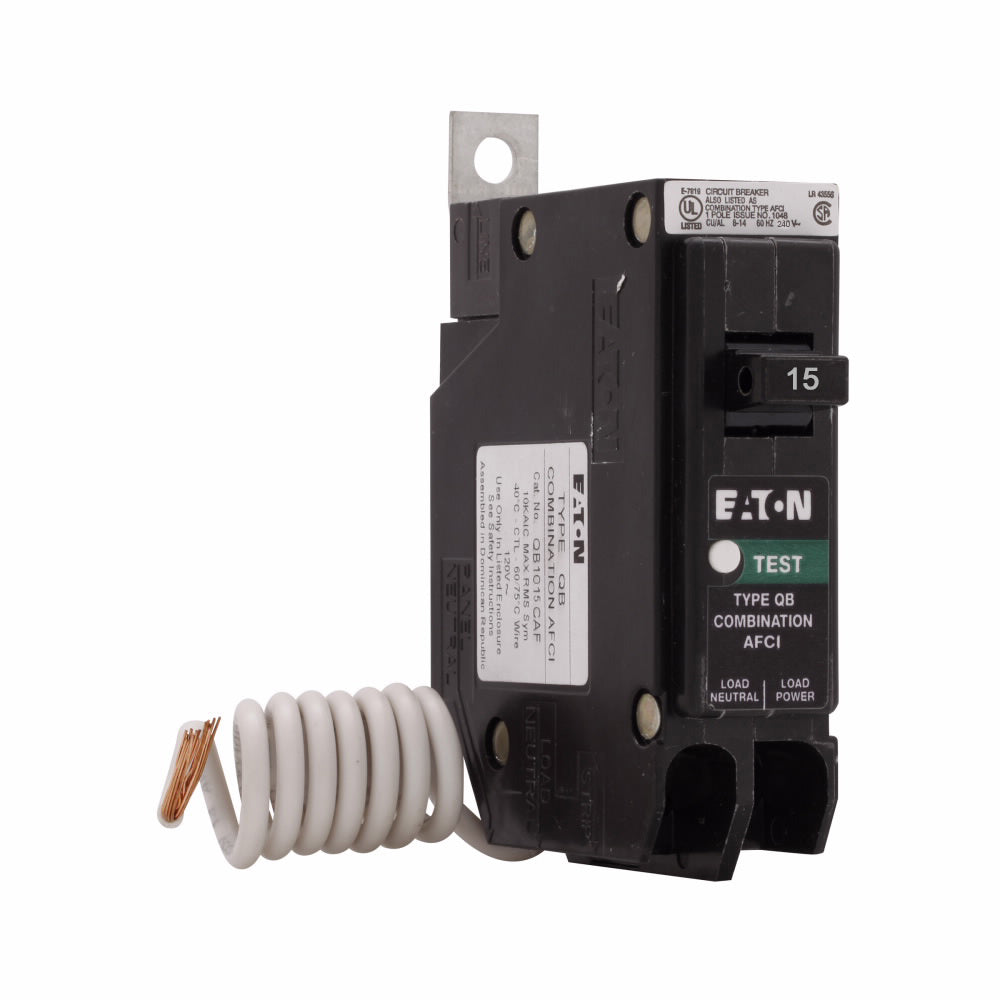

QB1015CAF is a Cutler Hammer 1 pole, 15 amp combination arc fault circuit breaker designed for 120/240VAC applications with a bolt-on mounting type.This circuit breaker features thermal magnetic protection with long time and instantaneous trip functions. It has a 10kA interrupting rating at 240V and is part of the QB series with a BAB frame. The breaker supports 60 Hz frequency and operates within an ambient temperature range of -31°C to 66°C. It complies with UL 489, UL 1699, and UL 1998 standards.
- Key Specifications
- Amperage: 15 Amps
- Voltage: 120/240 VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupting Rating: 10kAIC @ 240V
- Series/Frame: QB / BAB
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Frequency: 60 Hz
- Operating Temperature: -31°C to 66°C
- Certifications: UL 489, UL 1699, UL 1998
- Connection Type: Bolt-On
Specifications
- Part Number: QB1015CAF
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QBCAF
- Voltage : 240
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786685514420
- GTIN : 00786685514420
- Country of Origin : Dominican Republic
- Dimensions : 6 in x 1 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 0.4
