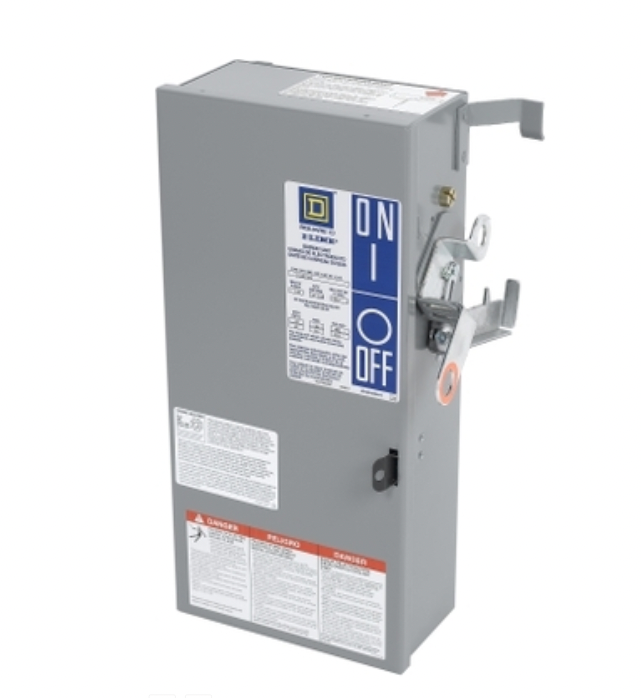

PQ3610GR - Schneider Electric 100A 3-Phase 600V Fusible I-Line Bus Plug

PQ3610GR

PQ3610GR is a Schneider Electric three-phase fusible bus plug designed for I-Line busway systems with a 100 ampere rating at 600 volts maximum. This plug-in unit features a compact, totally enclosed design that is lightweight and easy to handle, with sandwich-type construction that provides superior voltage drop characteristics even at low power factors. The unit is constructed with tough, durable polyester powder coat paint finish and plated contacts to ensure low surface-to-surface contact resistance, enabling quick installation with up to 75% savings in installation time.

• Amperage Rating: 100A
• Voltage Rating: 600V AC
• Phase: 3-Phase
• Wire Configuration: 3-Wire with Integral Ground Bus
• Interrupting Rating: 200 kA at 480V
• Fuse Type: Class R Reject
• Mounting Style: I-Line Busway Plug-In
• Series: PQ
• Construction: Sandwich-Type
• Finish: Polyester Powder Coat
• Contact Plating: Low Resistance Surface-to-Surface

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ3610GR
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 100
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H, K, J
• Wire : 3

Product Data

• UPC : 785901409083
• GTIN : 00785901409083
• Country of Origin : Mexico
• Dimensions : 18.9 in (480 mm) x 10.5 in (266 mm) x 4.6 in (118 mm) (Height x Width x Depth)
• Weight : 17
• Certification : CSA C22.2 No 27 - UL listed file E22182
