Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fusible
Description
PQ3610GLP

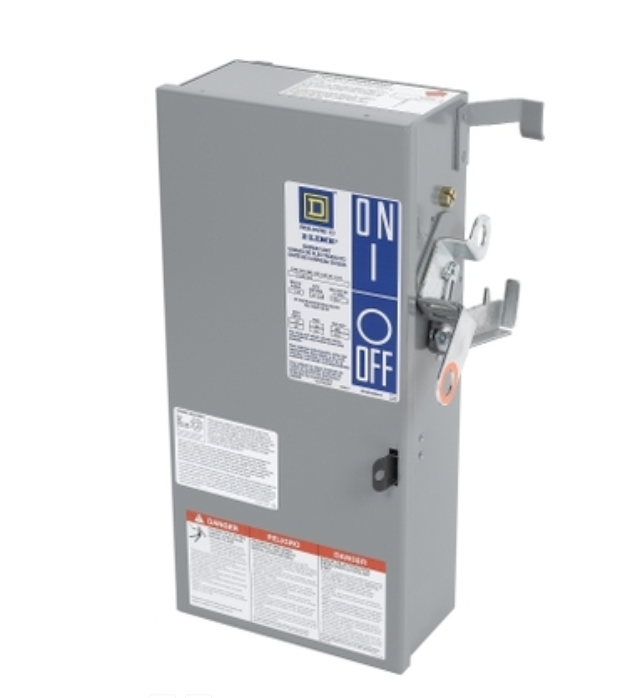

PQ3610GLP is a Schneider Electric fusible bus plug designed for use in I-Line busway systems, providing reliable circuit protection for industrial and commercial power distribution applications.This 3 pole fusible bus plug is rated for 100 amps and 600 volts AC, featuring a plug-in mounting configuration for quick and secure installation. The unit is compatible with Class H, K, J, or R fuses and is engineered for use with I-Line style I & II aluminum and copper busway systems. Its robust design ensures durability and efficient performance in demanding environments.
- 100 Amp rated current
- 600 Volt maximum voltage
- 3 Pole configuration
- Plug-in mounting type
- Compatible with I-Line I & II busway systems
- Accepts Class H, K, J, or R fuses
- Interrupt rating: 200 kA at 480V
- FS frame
- NEMA 1 enclosure
- 3-wire with integral ground bus
Specifications
- Part Number: PQ3610GLP
- Manufacturer : Schneider Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H,K,R
- Wire : 3
Product Data
- Weight : 35
