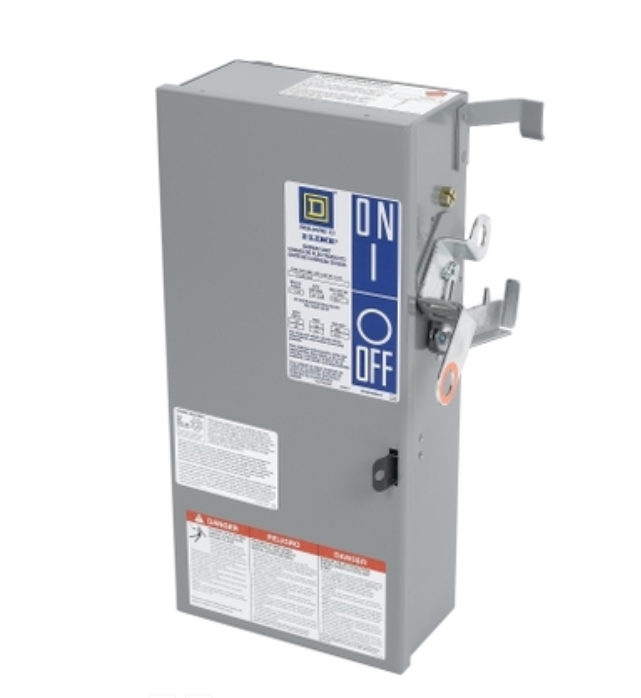

PQ3610GGSC - Square D 100 Amp 600V 3-Pole Fusible Busway Plug-In Unit

PQ3610GGSC

PQ3610GGSC is a three-phase, 100-ampere fusible busway plug-in unit rated for 600V AC maximum, designed for use with Square D I-Line style busway systems. This plug-in unit features a 3-wire configuration with integral ground bus and accepts Type H, K, J, or R class fuses for flexible protection options. The unit includes a door gasket and copper mechanical lugs for secure connections, making it suitable for industrial power distribution applications where flexible busway systems are deployed.

• Amperage Rating: 100A
• Voltage Rating: 600V AC
• Phase: 3-Phase
• Poles: 3
• Wiring Configuration: 3-Wire with Integral Ground Bus
• Fuse Classes Accepted: Type H, K, J, R
• Interrupt Rating: 200kA at 480V
• Connection Type: Plug-In
• Enclosure Type: NEMA 1
• Accessories: Door Gasket, Copper Mechanical Lugs
• Suitable for I-Line Style I and II Busway Systems
• Manufacturer: Schneider Electric (Square D)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ3610GGSC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 100
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H, K, J, R
• Wire : 3

Product Data

• Country of Origin : Mexico
• Dimensions : 18.9 in (480 mm) x 10.5 in (266 mm) x 4.6 in (118 mm) (Height x Width x Depth)
• Weight : 0.013
• Certification : CSA C22.2 No 27 - UL listed file E22182
