Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fusible
Description
PQ3610GGS

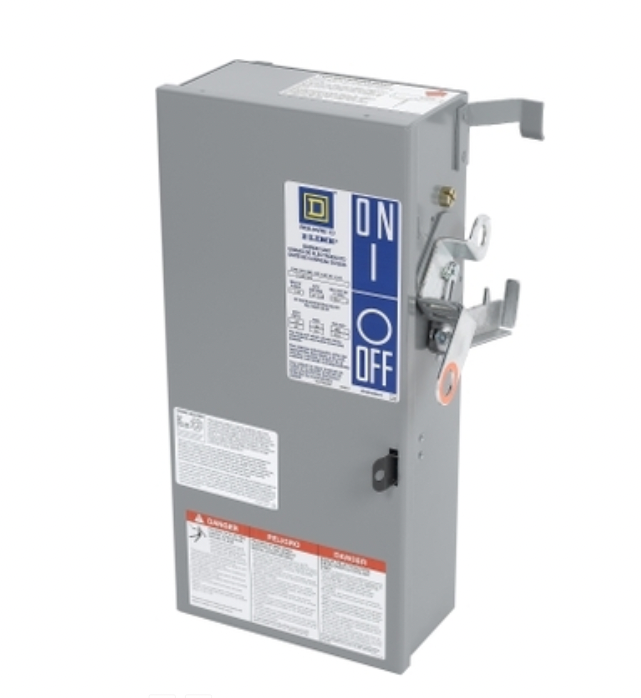

PQ3610GGS is a 100 amp, 600 volt, 3-pole fusible bus plug from Square D's I-Line series designed for plug-in bus duct systems.This fusible bus plug features a 3-wire configuration with integral ground, compatible with Class H, K, J, and R fuses. It has an interrupting rating of 200kA at 480V and is suitable for use with Square D I-Line I and II aluminum and copper busway systems. The unit includes mechanical lugs and a plug-in mounting type for easy installation.
- Manufacturer: Square D
- Part Number: PQ3610GGS
- Amperage: 100A
- Voltage: 600V
- Poles: 3
- Mounting Type: Plug-in
- Fuse Classes: H, K, J, R
- Interrupt Rating: 200kA @ 480V
- Series/Frame: I-Line
- Wiring: 3-wire with integral ground
- Fuse Type: Fusible
- Certifications: OEM authentic
Specifications
- Part Number: PQ3610GGS
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H, K, J, R
- Wire : 3
Product Data
- Dimensions : 18.9 in (480 mm) x 10.5 in (266 mm) x 4.6 in (118 mm) (Height x Width x Depth)
- Weight : 18.001
- Certification : UL listed file E22182 - CSA C22.2 No 27
