Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Fusible
- Series
- I-Line
- Frame
- PQ
- Rated current
- 100
- Voltage
- 600 AC
- Phases
- 3
- Interrupting rating
- 200kA@480V
- Wires
- 3
- Fuse class
- H, K, J, R
- Country of origin
- Mexico
- UPC
- 078590126392
- GTIN
- 00785901263920
Show all specifications (3 more)
- Dimensions
- 19 in x 8-7/8 in
- Weight
- 17.551 lb
- Certification
- CSA Certified, UL Listed
Product description & additional details

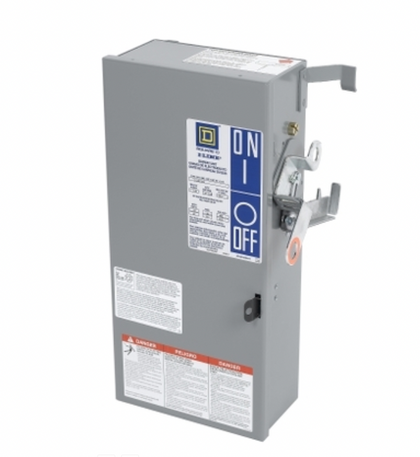

PQ3610G
PQ3610G Square D 100A 600V 3P fusible bus plug delivers reliable power distribution for industrial applications.
This plug-in unit is designed for Square D I-Line II busway systems, offering a fusible disconnect solution with a high interrupting rating. It features a switch-operated design, accepts Class H, K, J, or R fuses, and includes an integral ground bus for enhanced safety. The unit is engineered for easy installation and maintenance, reducing downtime and improving system flexibility.
Key Specifications
- Amperage: 100A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Plug-In (Busway)
- Interrupt Rating: 200kA at 480V
- Series/Frame: I-Line II
- Trip Unit: Fusible (Class H, K, J, or R)
- Certifications: NEMA 1
- Wiring: 3-wire with integral ground
- Fuse Type: Accepts H, K, J, or R fuses
- Enclosure: NEMA 1
- Dimensions: 19" L x 4-2/3" W x 8-7/8" H (approximate)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PQ3610G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600 AC
- Amperage : 100
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H, K, J, R
- Wire : 3
Product Data
- UPC : 078590126392
- GTIN : 00785901263920
- Country of Origin : Mexico
- Dimensions : 19 in x 8-7/8 in
- Weight : 17.551 lb
- Certification : CSA Certified, UL Listed
Technical Documents
