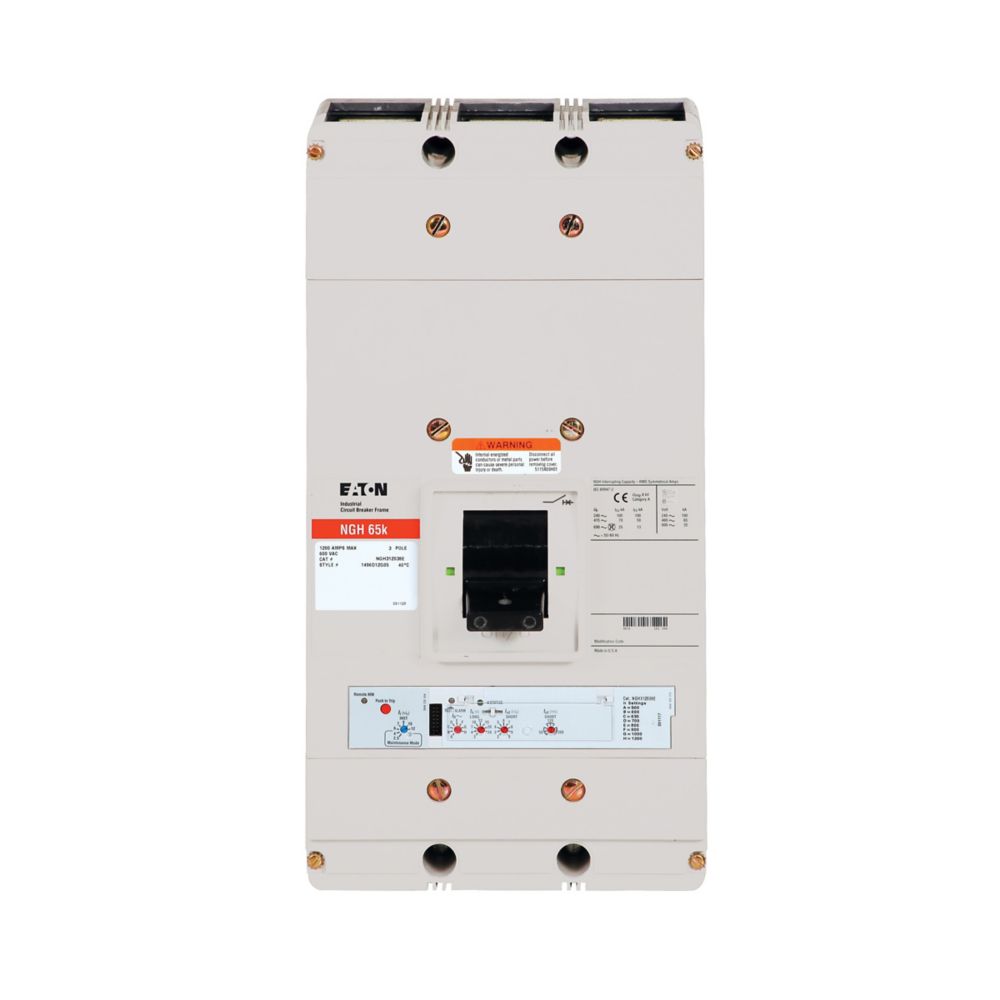

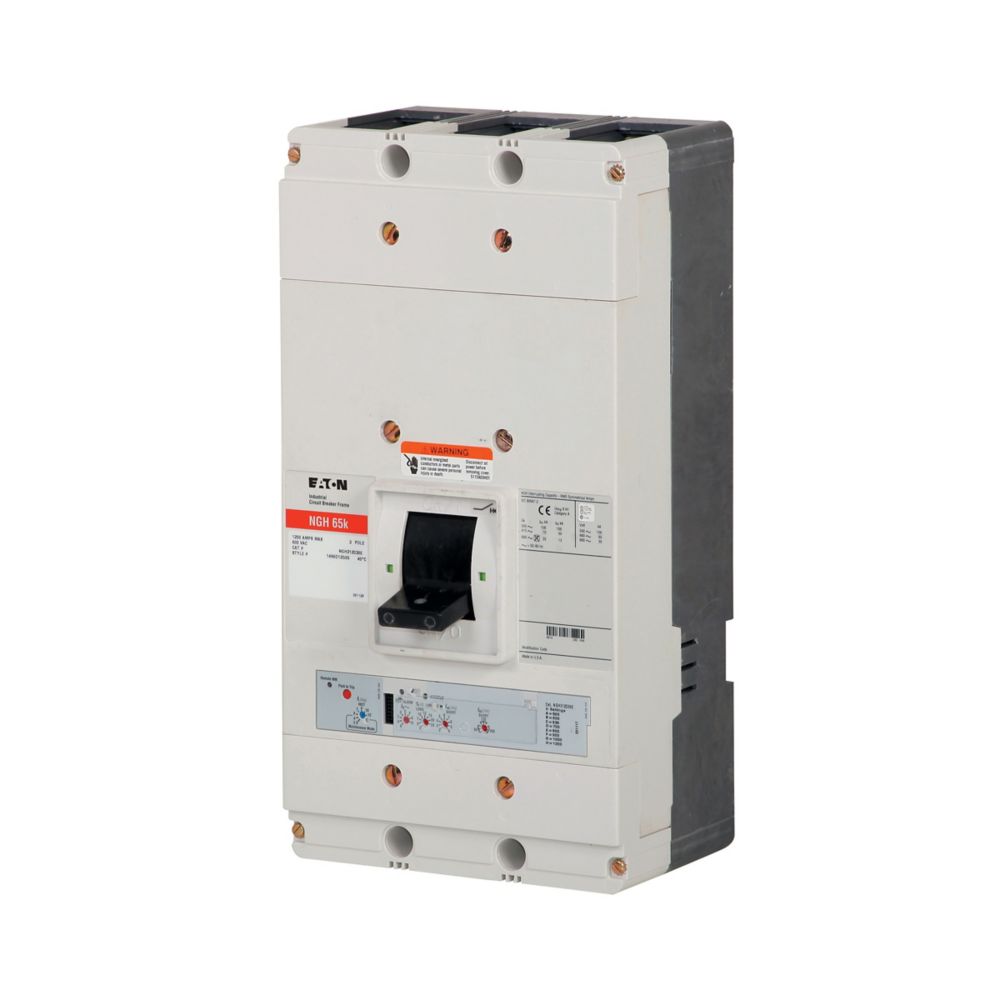

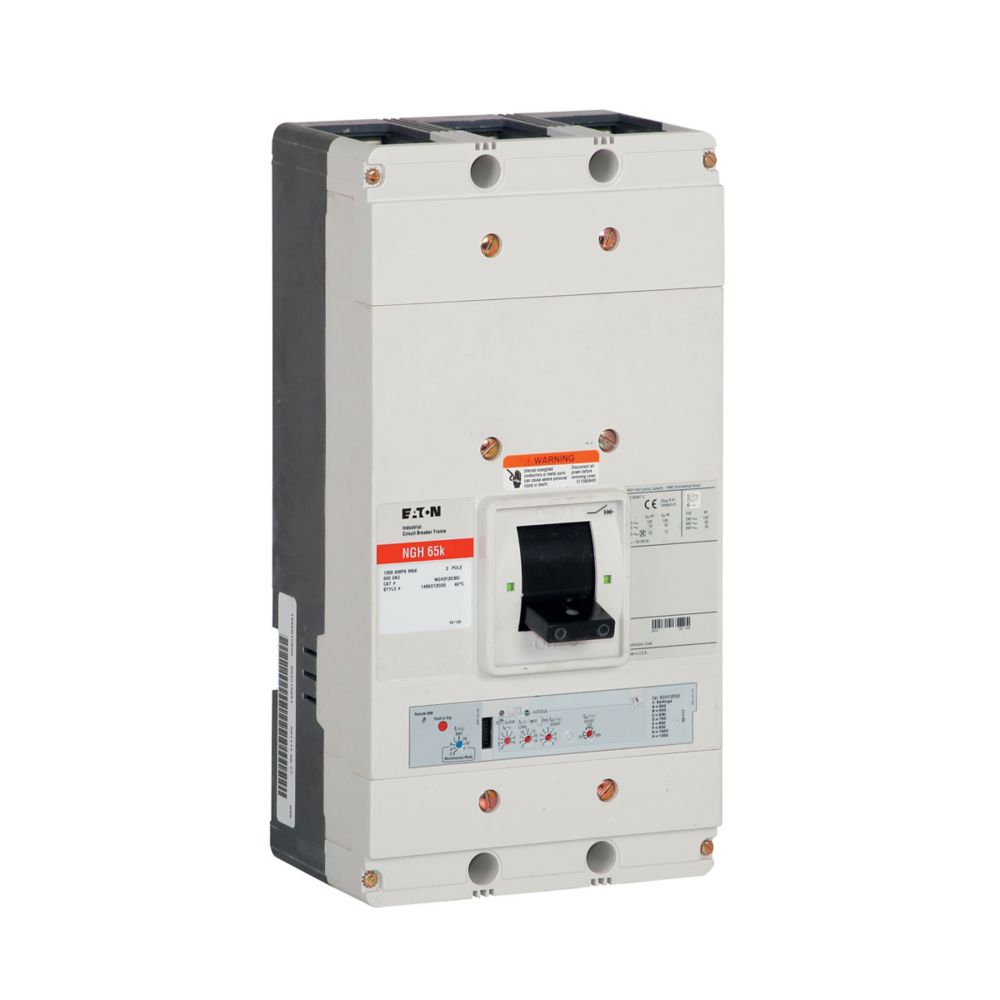

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Molded Case
- Series
- Series G
- Frame
- NG
- Rated current
- 1200
- Voltage
- 480 V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35 kA
- Trip functions
- ALSI - Arcflash Reduction, Long-Time, Short-Time and Instantaneous
- Protection
- Solid State
- Connection
- Bolt-On
- Country of origin
- United States
- Frame Size
- NG frame
Show all specifications (6 more)
- Breaker Type
- Molded case, electronic trip
- Trip Type
- Electronic ALSI with maintenance mode
- UPC
- 786685580531
- Dimensions
- 6 in x 9 in x 9 in (Length/Depth x Height x Width)
- Weight
- 48 lb
- Certification
- CSA Certified,UL Listed,HACR Rated
Product description & additional details
NGH312038EC
NGH312038EC is an Eaton Series G NG-frame electronic molded case circuit breaker designed for power distribution and overcurrent protection in industrial applications.This molded case circuit breaker features a 3-pole configuration, 1200 A current rating, and is rated up to 480 Vac with an electronic Digitrip 310 RMS ALSI trip unit including maintenance mode.Key Specifications
- Part Number: NGH312038EC
- Manufacturer: Eaton
- Voltage: 480 V
- Amperage: 1200 A
- Poles: 3
- Interrupt Rating: 35 kA
- Framesize: NG frame
- Breakertype: Molded case, electronic trip
- Trip Type: Electronic ALSI with maintenance mode
- Family: Series G
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: NGH312038EC
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : NG
- Voltage : 480 V
- Amperage : 1200 A
- Phase : 3
- Poles : 3
- AIC rating : 35 kA
- Connection : Bolt-On
- Functions : ALSI - Arcflash Reduction, Long-Time, Short-Time and Instantaneous
- Frame Size : NG frame
- Breaker Type : Molded case, electronic trip
- Protection : Solid State
- Trip Type : Electronic ALSI with maintenance mode
Product Data
- UPC : 786685580531
- Country of Origin : United States
- Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
- Weight : 48 lb
- Certification : CSA Certified,UL Listed,HACR Rated
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
