BRP115DF

BRP115DF

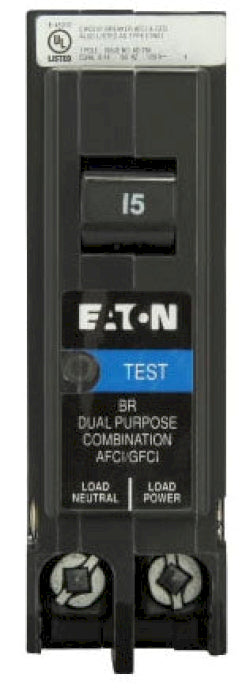

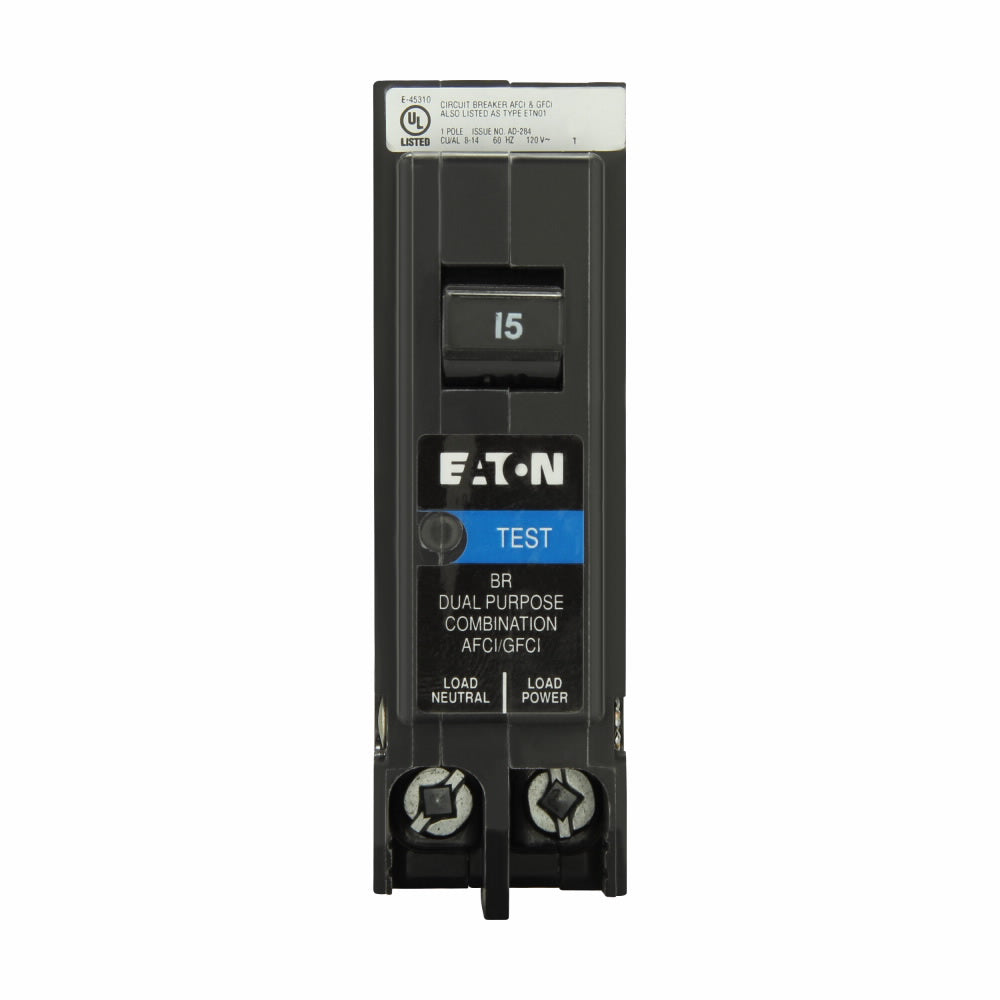

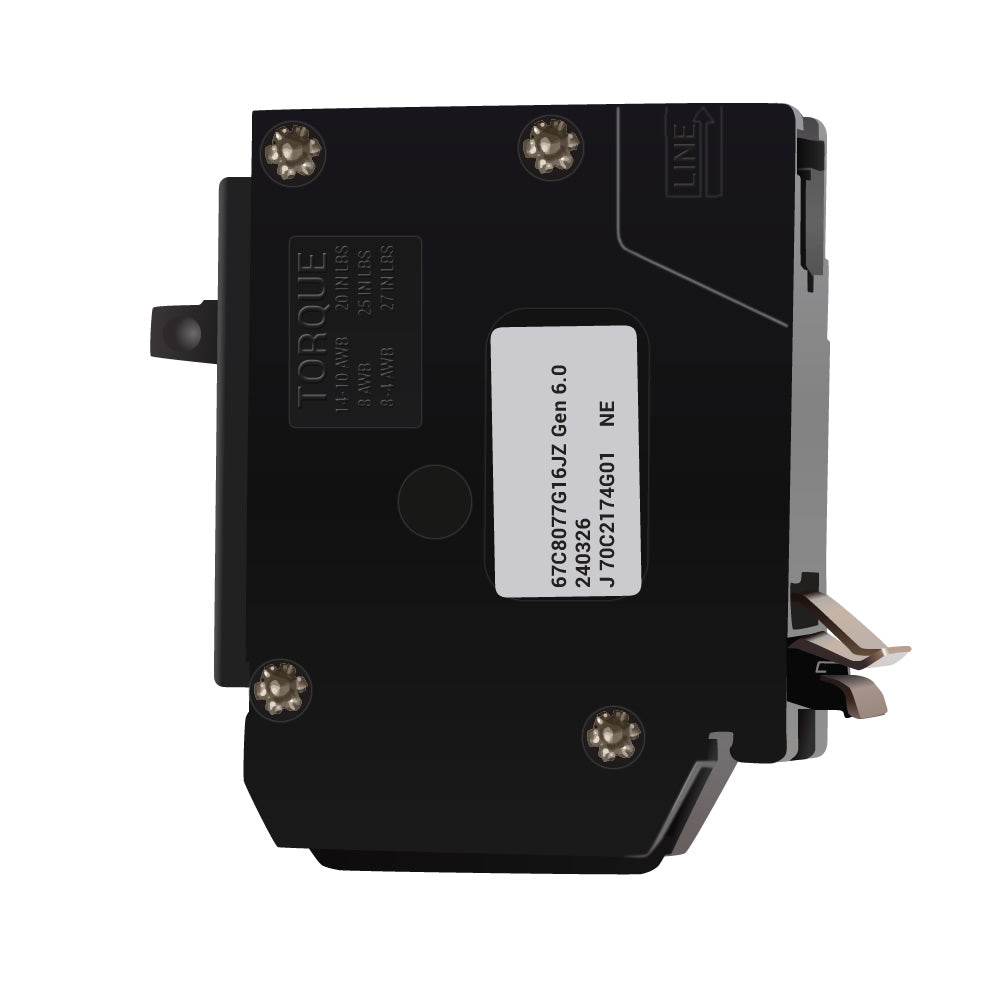

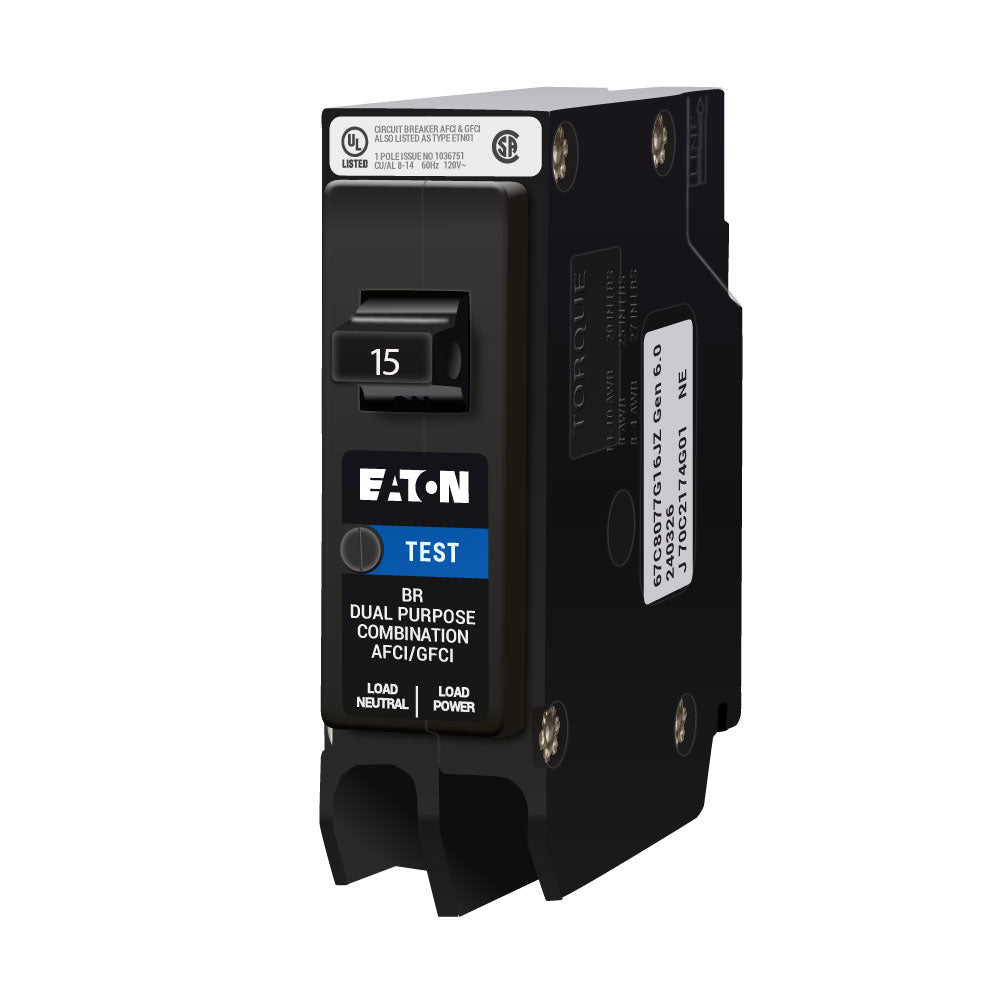

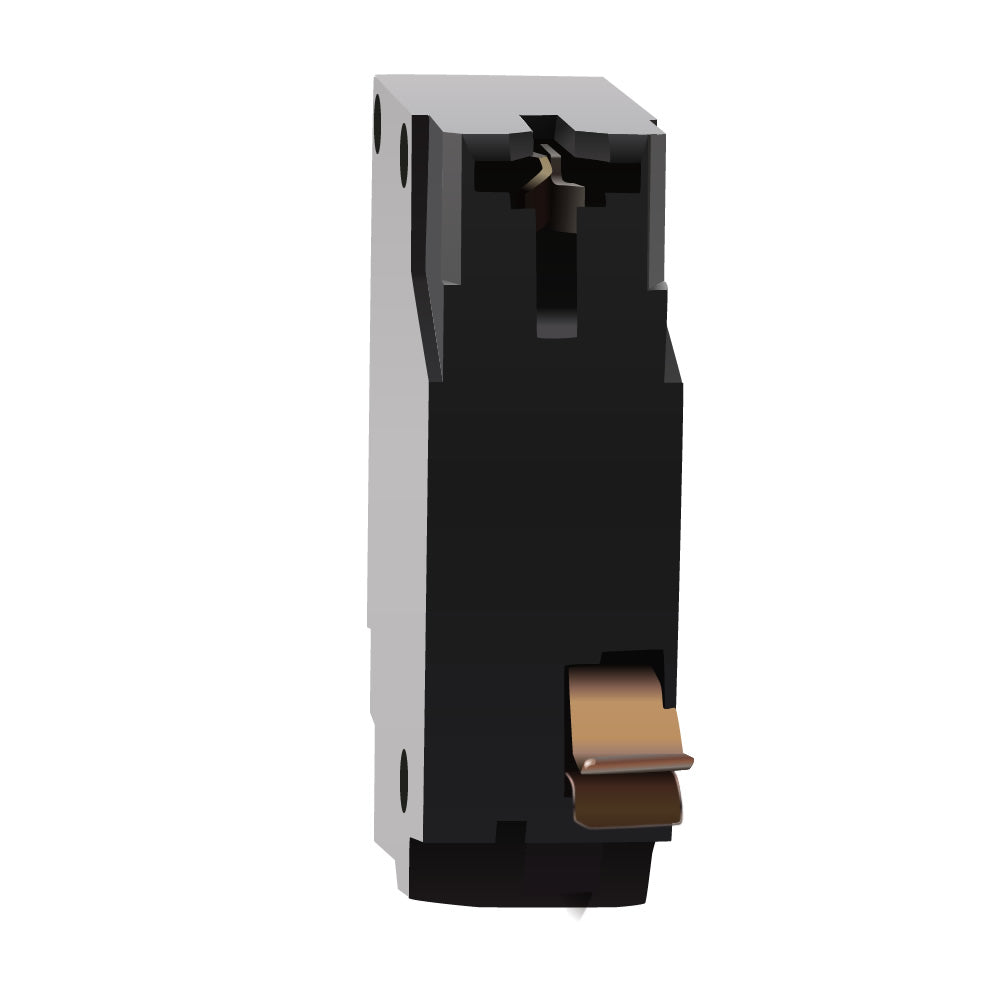

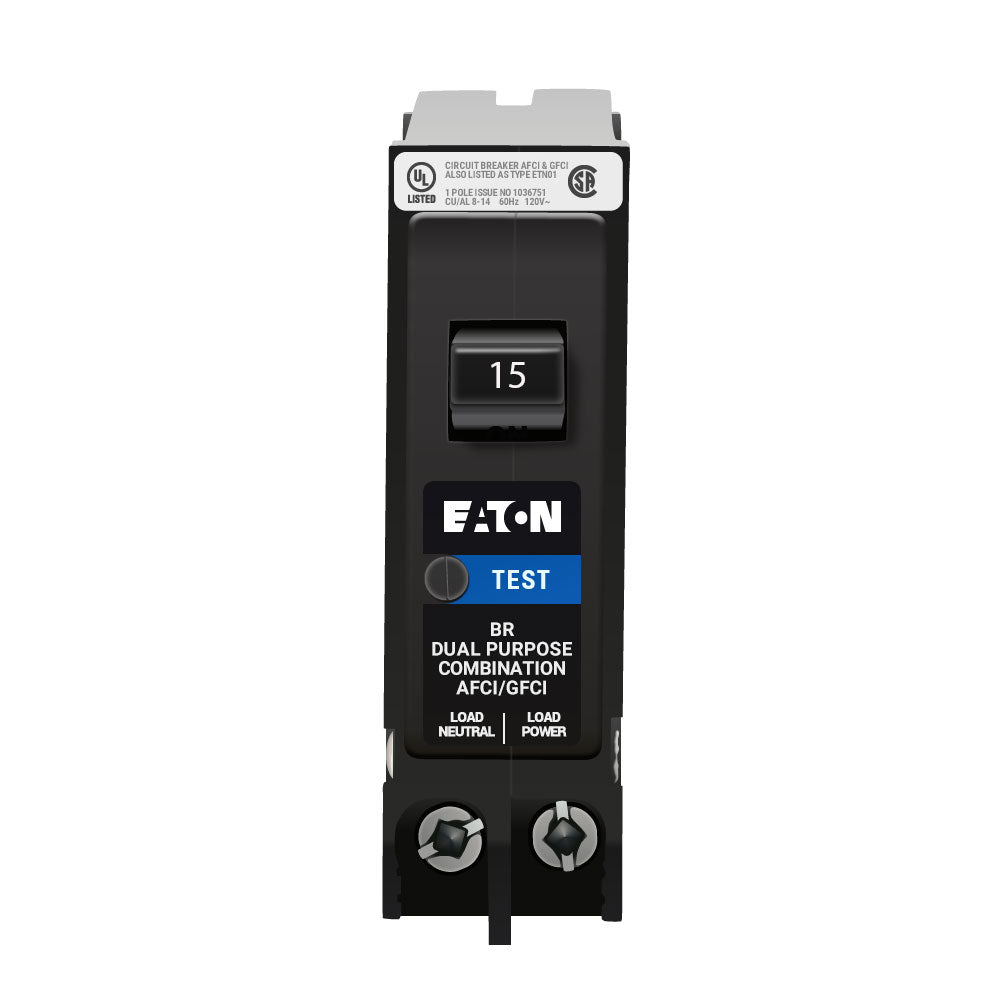

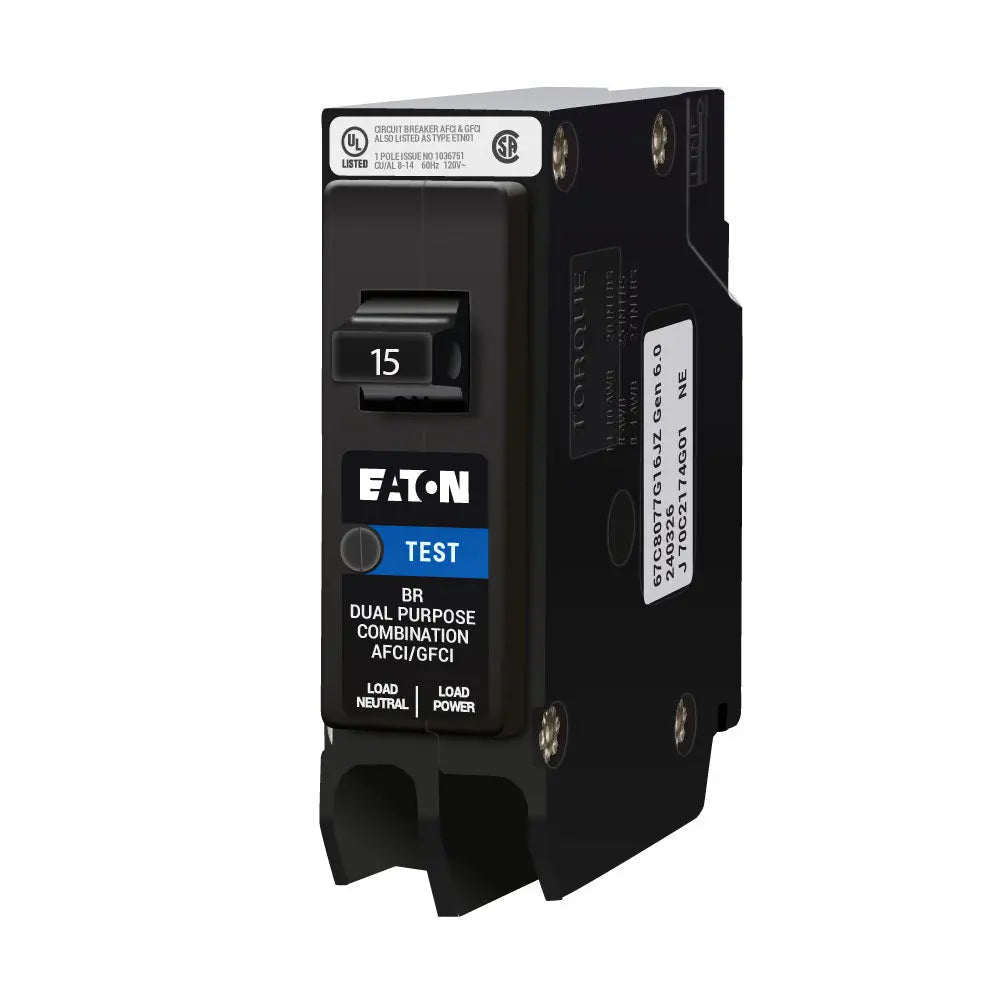

BRP115DF is a 15 amp, 1-pole Eaton BR series dual function AFCI and GFCI circuit breaker designed for plug-on mounting.This Eaton circuit breaker provides arc fault and ground fault protection with a 10 kA interrupt rating at 120 volts AC. It features a thermal magnetic trip unit with long-time and instantaneous trip functions, suitable for residential and commercial electrical panels. The breaker supports wire sizes from 14 to 4 AWG and is UL listed for safety.

Key Specifications
• Amperage: 15 A
• Voltage Rating: 120 VAC
• Number of Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10 kA
• Series/Frame: BR
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Wire Size Range: 14 to 4 AWG
• Certifications: UL Listed
• Dimensions: 2.9 in L x 2.9 in W x 0.9 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRP115DF
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRP
• Voltage : 2
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 4 AWG
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 786670009191
• GTIN : 00786670009191
• Country of Origin : Dominican Republic
• Dimensions : 2.9 in x 0.9 in x 2.9 in (Length/Depth x Height x Width)
• Weight : 0.4
• Panel Type : Type BR Loadcenters
• Certification : UL Listed
• Wire Size : 14 to 4 AWG
