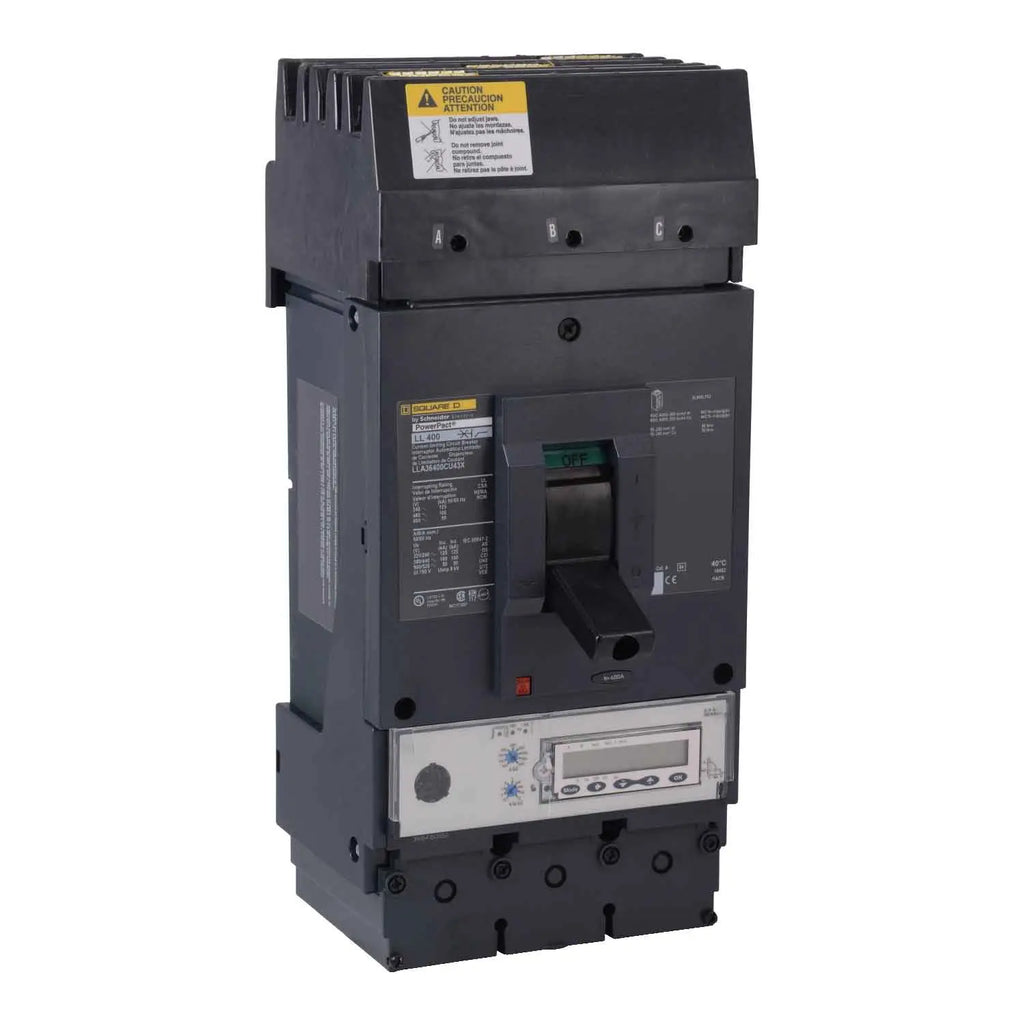

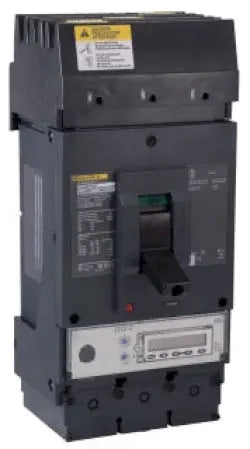

LLA36600U43X - Square D 600A 600V 3-Pole PowerPact L I-Line Molded Case Circuit Breaker with Micrologic 5.3A Trip Unit

LLA36600U43X

LLA36600U43X is a Square D PowerPact L molded case circuit breaker rated for 600 amps, 600 volts, and 3 poles with an I-Line plug-in mounting style.This circuit breaker features a Micrologic 5.3A electronic trip unit providing advanced protection with thermal magnetic and electronic trip capabilities. It has an interrupt rating of 50 kA at 600 VAC and is 80% rated for continuous current. The breaker is designed for use in panelboards and switchboards and is UL 489 and CSA certified. It supports common accessories and offers reliable protection from overloads and short circuits.

Key Specifications
• Amperage: 600 Amp
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 50 kA at 600 VAC
• Frame Type: PowerPact L
• Trip Unit: Micrologic 5.3A Electronic
• Continuous Current Rating: 80%
• Certifications: UL 489, CSA
• Manufacturer: Square D (Schneider Electric)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LLA36600U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LLA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : L Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State



Product Data

• UPC : 785901710776
• GTIN : 00785901710776
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
