LLA36600U33X - Square D 600A 600V 3-Pole PowerPact L I-Line Circuit Breaker with Micrologic 3.3S Trip Unit

LLA36600U33X

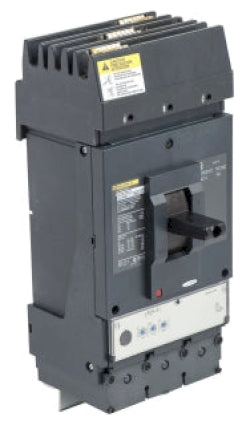

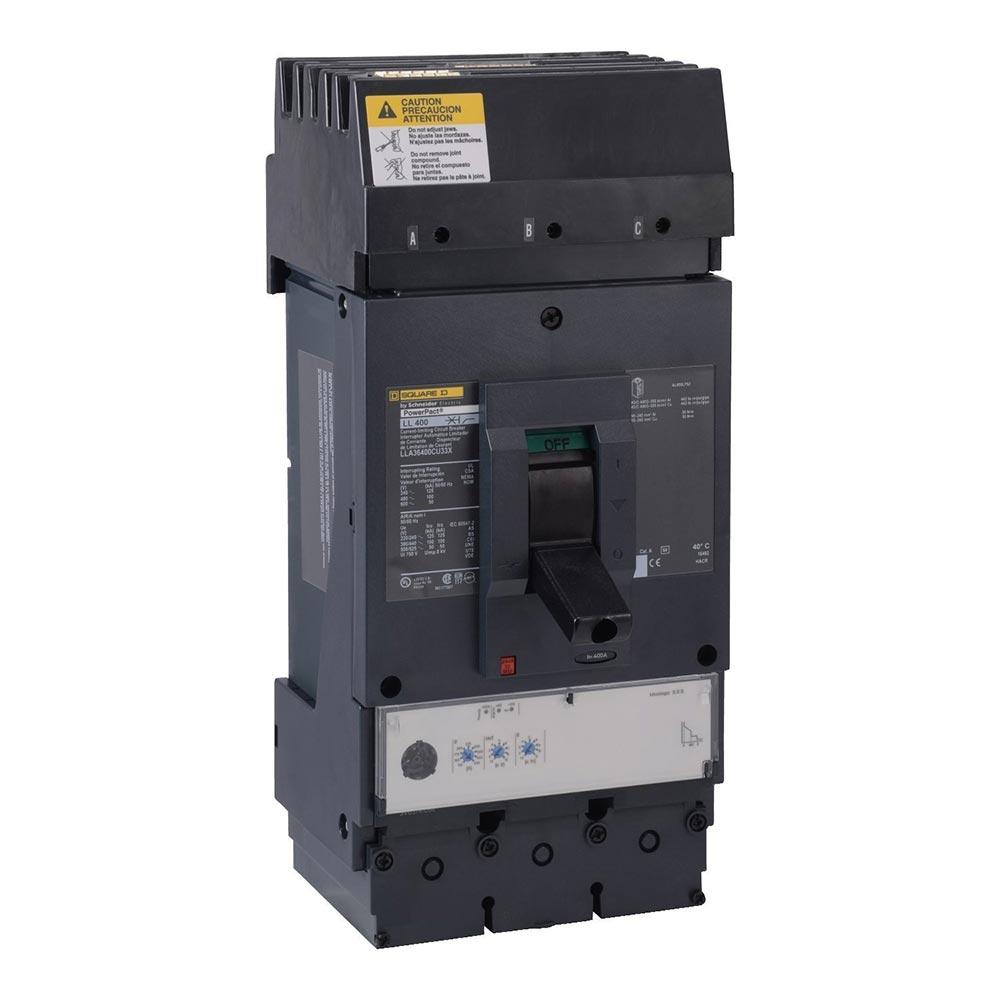

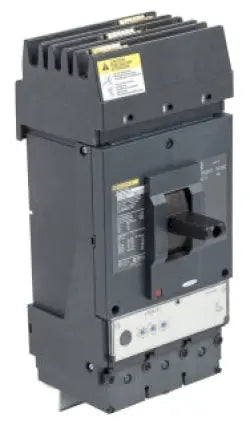

LLA36600U33X is a Square D PowerPact L series molded case circuit breaker rated for 600 amps, 600 volts, and 3 poles with an I-Line mounting system and Micrologic 3.3S electronic trip unit.This circuit breaker offers reliable protection against overloads and short circuits with a 50 kA interrupting rating at 600 VAC. It features an 80% continuous current rating and is UL 489, CSA, IEC, CE, NEMA, and CCC certified. The breaker is designed for use as a main panel disconnect or in control panels, providing robust performance with a compact footprint.

Key Specifications
• Manufacturer: Square D
• Part Number: LLA36600U33X
• Amperage: 600 A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 50 kA at 600 VAC
• Series/Frame: PowerPact L
• Trip Unit: Micrologic 3.3S electronic
• Continuous Current Rating: 80%
• Certifications: UL 489, CSA, IEC, CE, NEMA, CCC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LLA36600U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LLA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time, Short Time and Instantaneous Trip
• Frame Size : L Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901996521
• GTIN : 00785901996521
• Country of Origin : Mexico

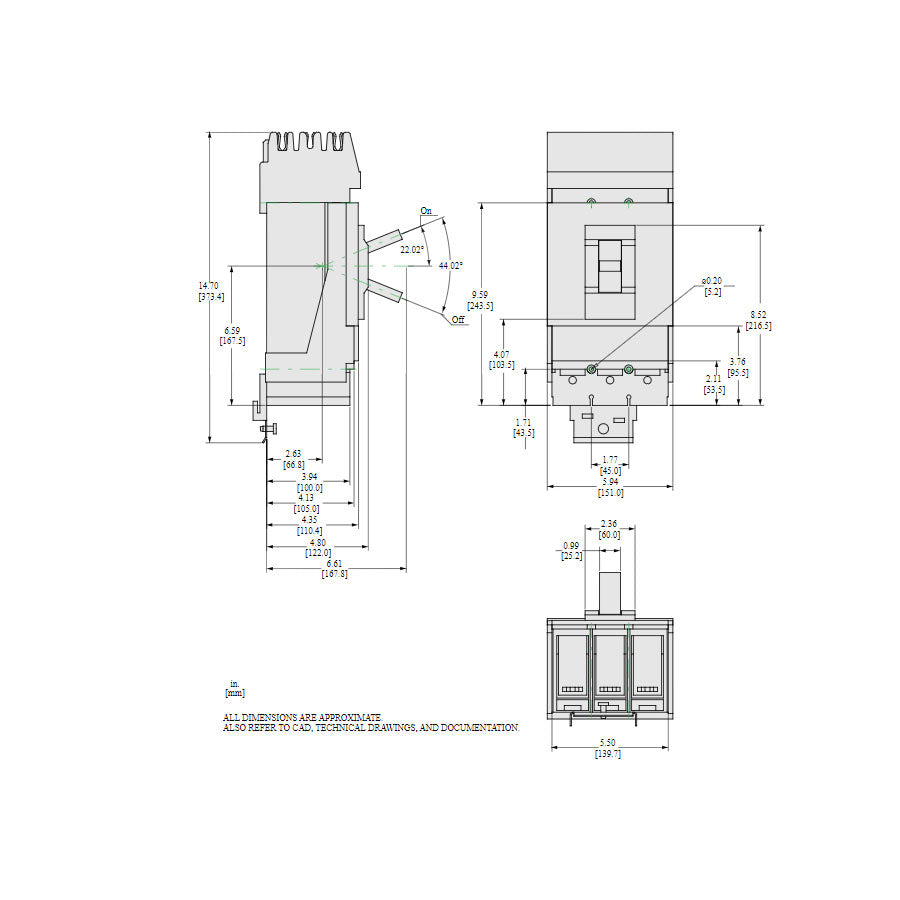

• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
