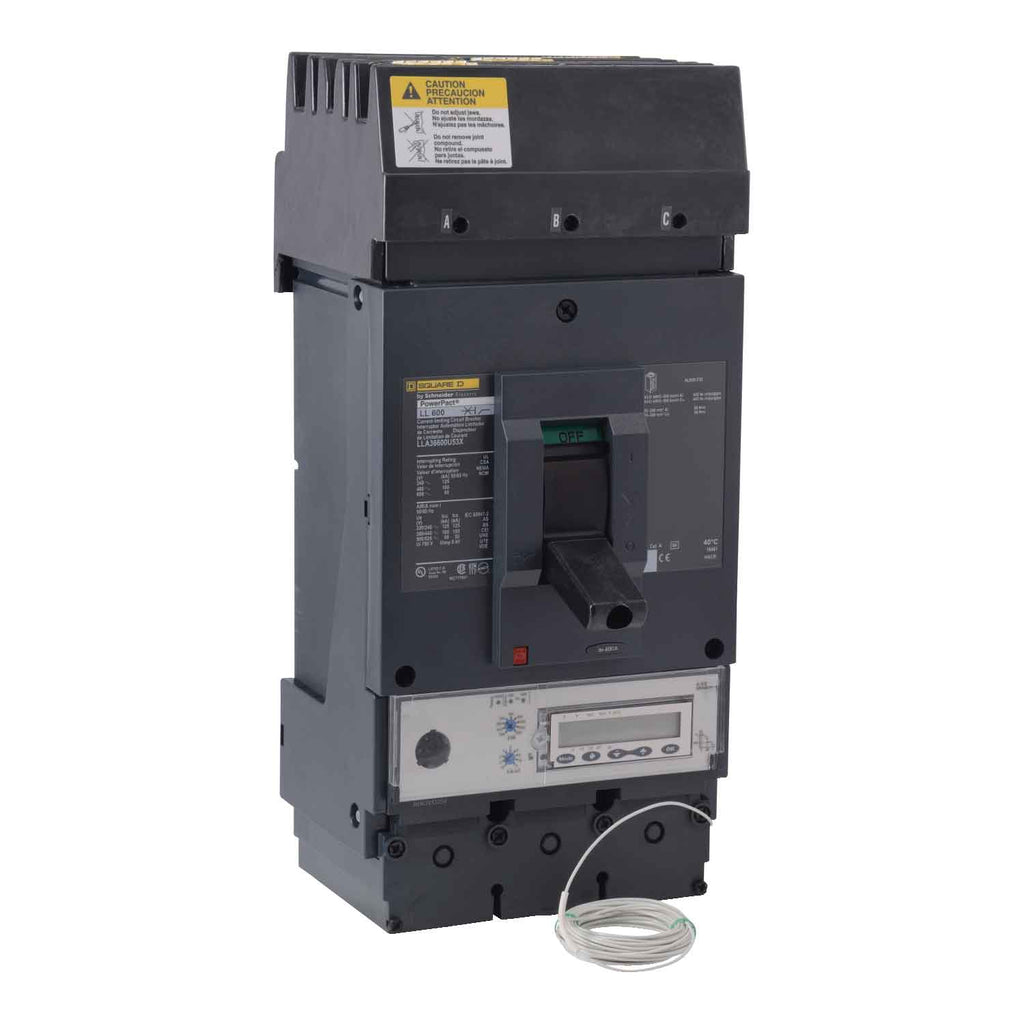

LLA36400U53X - Square D 400A 600V 3 Pole I-Line Style Plug-In Circuit Breaker

LLA36400U53X

LLA36400U53X is a Square D 3 pole, 400 amp, 600 volt I-Line style plug-in circuit breaker designed for reliable power distribution protection.This molded case circuit breaker features a PowerPact L frame with a MicroLogic 5.3E trip unit providing long-time, short-time, and instantaneous trip functions. It has a 50kA interrupting rating at 600V and 100kA at 480V, suitable for industrial and commercial applications. The breaker is UL listed and designed for plug-in mounting with 3 poles for three-phase systems.

• Amperage: 400A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 50kA @ 600V, 100kA @ 480V
• Series/Frame: PowerPact L
• Trip Unit: MicroLogic 5.3E (LSI - Long-Time, Short-Time, Instantaneous)
• Certifications: UL Listed
• Type: Molded Case Circuit Breaker
• Phase: 3
• Compatible with 2P applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LLA36400U53X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LLA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 606486284011
• GTIN : 03606490000000
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...500 kcmil aluminium/copper
