LLA36400CU44X - Square D 400 Amp 3-Pole 600V Molded Case Circuit Breaker

LLA36400CU44X

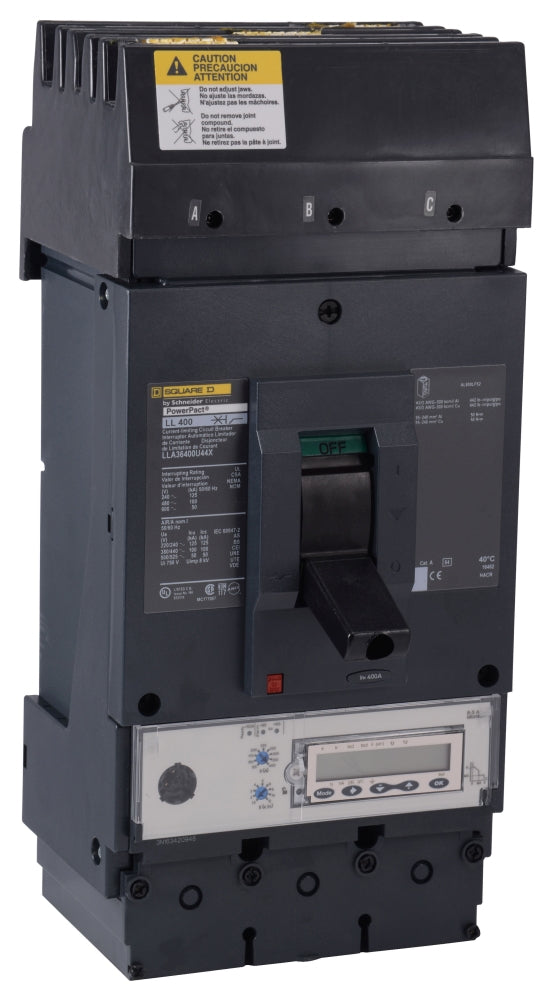

LLA36400CU44X is a 3-pole molded case circuit breaker manufactured by Square D, rated for 400 amperes at 600 volts AC with an interrupting capacity of 100 kA at 480V. This PowerPact series breaker is designed for industrial and commercial power distribution applications requiring reliable overcurrent protection and thermal-magnetic trip technology. The unit features I-Line style plug-in mounting for standard installation in distribution panels and switchboards.

• Amperage: 400 Amp
• Voltage: 600 VAC
• Poles: 3-Pole
• Mounting: I-Line Style Plug-In
• Series: PowerPact
• Frame Type: L Frame
• Interrupt Rating: 100 kA at 480V
• Interrupt Rating: 125 kA at 240V
• Interrupt Rating: 50 kA at 600V
• Trip Unit: Thermal-Magnetic
• Certification: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LLA36400CU44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LLA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : L Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• GTIN : 03606486283998
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
