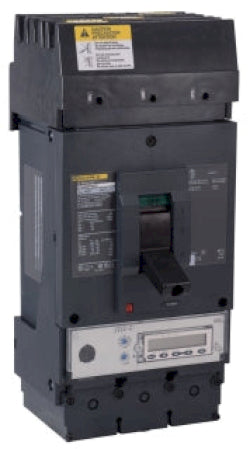

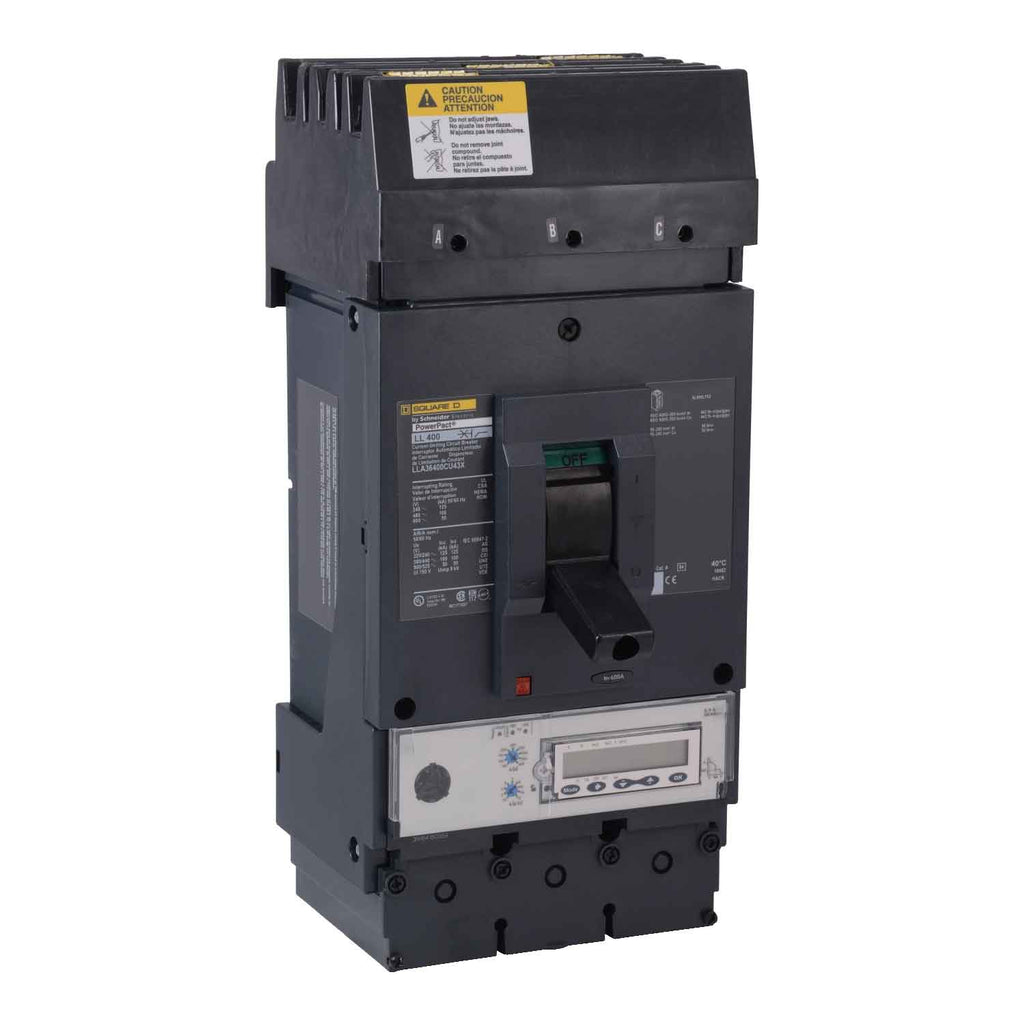

LLA36400U43X - Square D 400A 3-Pole 600VAC PowerPact L Circuit Breaker I-Line MicroLogic 5.3A 50kA

LLA36400U43X

LLA36400U43X is a Square D PowerPact L circuit breaker rated for 400 amps, 3 poles, and 600 volts AC with a 50kA interrupting rating.

This molded case circuit breaker features an I-Line plug-in mounting style and includes a MicroLogic 5.3A trip unit with 80% continuous current rating. It provides protection from overloads and short circuits in industrial and commercial applications. The breaker is designed for use in three-phase electrical systems and is part of the L frame series.

• Amperage: 400A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 50kA at 600VAC
• Mounting Type: I-Line plug-in
• Trip Unit: MicroLogic 5.3A
• Frame/Series: PowerPact L
• Continuous Current Rating: 80%
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LLA36400U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LLA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : L Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 060648628400
• GTIN : 03606486284001
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...500 kcmil aluminium/copper
