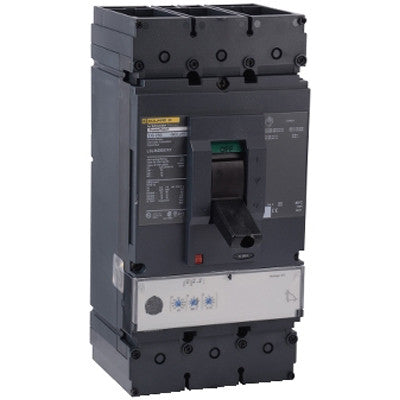

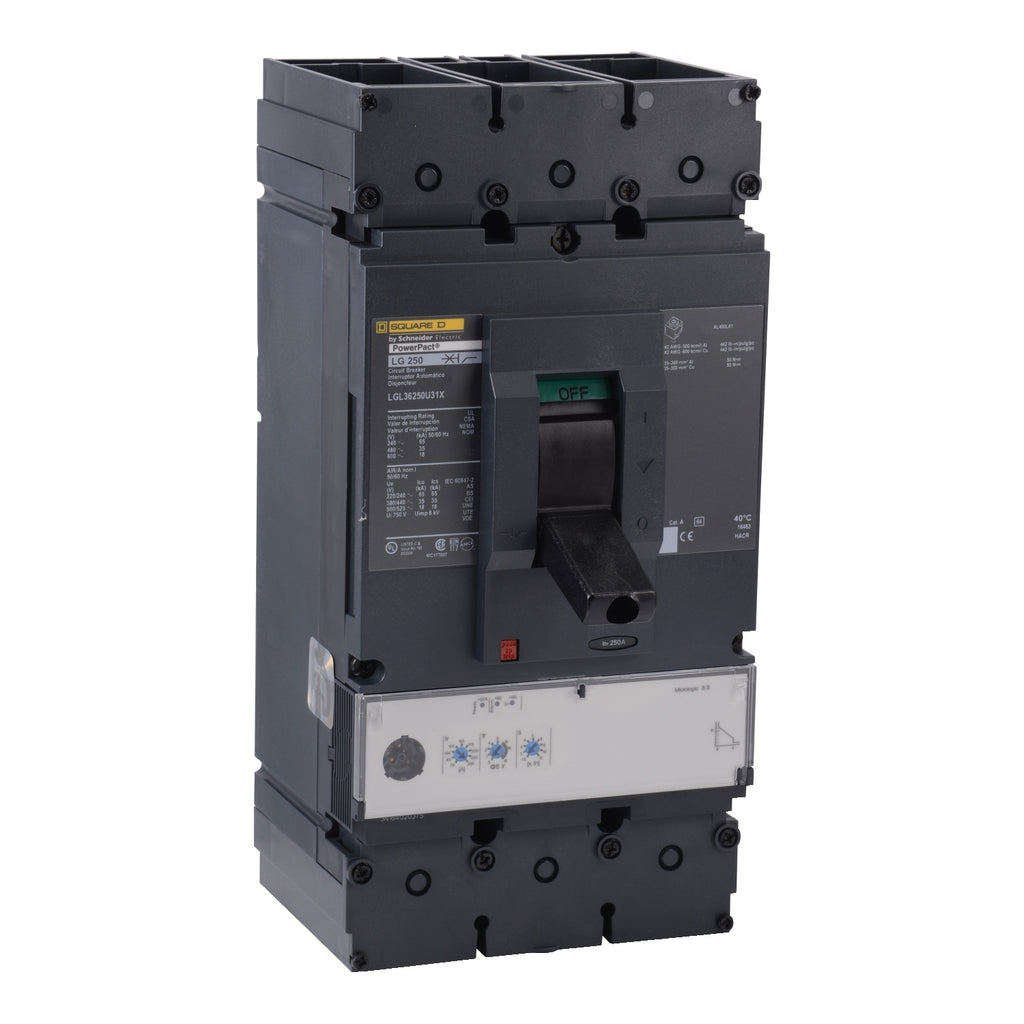

LGL36250U31X - Square D PowerPact L Molded Case Circuit Breaker 250A 3 Pole 600VAC 18kA MicroLogic 3.3

LGL36250U31X

LGL36250U31X is a Square D PowerPact L Frame molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This 250A, 3 pole unit features a 600VAC rating and an interrupting capacity of 18kA at 600VAC, 35kA at 480VAC, and 65kA at 240VAC. Equipped with the MicroLogic 3.3 electronic trip unit, it provides precise overload and short-circuit protection with adjustable settings for flexible application needs. The breaker is compatible with standard accessories and auxiliaries for the PowerPact L series. Key Specifications

• Part Number: LGL36250U31X
• Manufacturer: Square D
• Series/Frame: PowerPact L
• Amperage Rating: 250A
• Number of Poles: 3
• Rated Voltage: 600VAC
• Interrupt Rating: 18kA @ 600VAC, 35kA @ 480VAC, 65kA @ 240VAC
• Mounting Type: Unit Mount
• Actuator Type: Toggle
• Trip Unit: MicroLogic 3.3 Electronic
• Wire Size: 2 AWG to 500 kcmil Al, 2 AWG to 600 kcmil Cu
• Frequency Rating: 50/60 Hz
• Standards: UL 489, CSA C22.2 No. 5

A(more...)

Specifications

• Part Number: LGL36250U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• UPC : 785901180401
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 2...600 kcmil copper
  AWG 2...500 kcmil aluminium
