LGL36250CU31X - Square D PowerPact L Molded Case Circuit Breaker 250A 3 Pole 600VAC 18kA Lugs Micrologic 3.3 100% NEMA 12

LGL36250CU31X

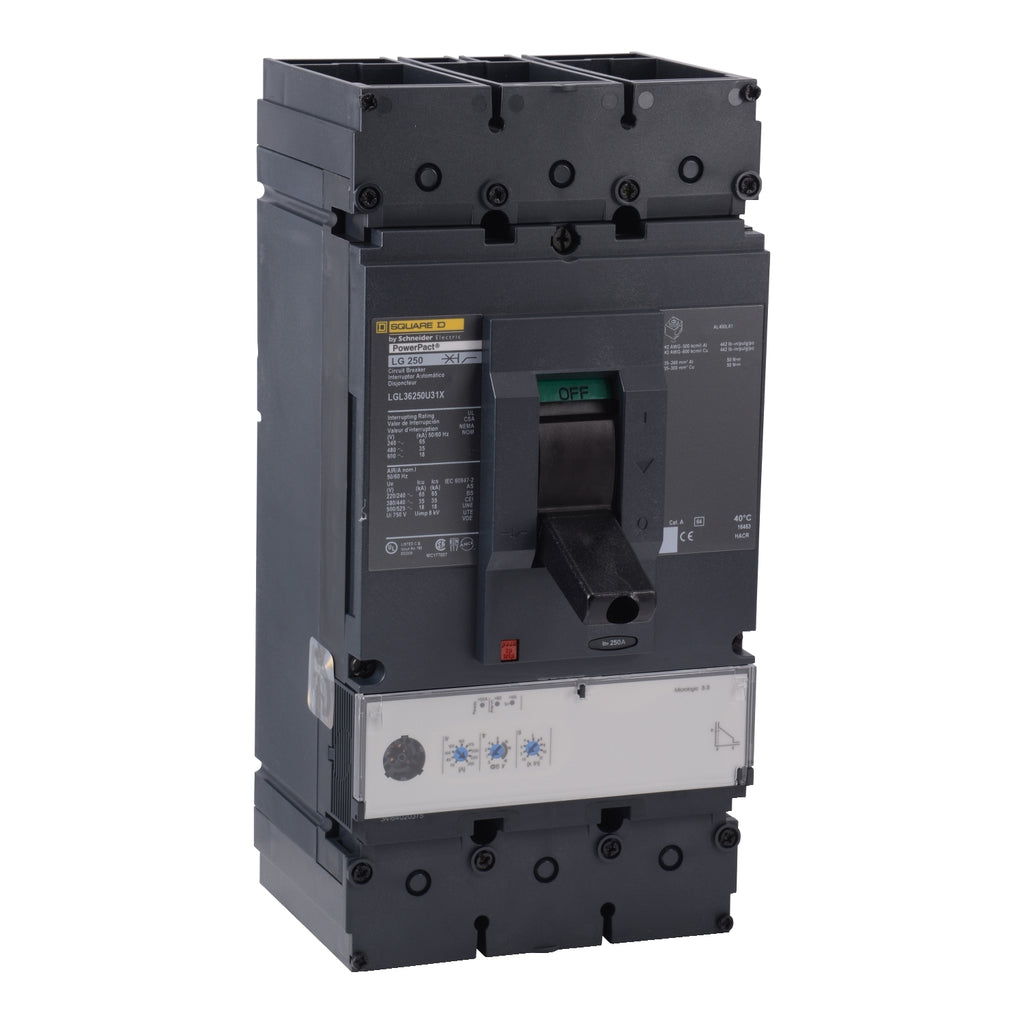

LGL36250CU31X is a Square D PowerPact L molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 250A current rating, 3-pole configuration, and 600VAC maximum voltage. It is equipped with lugs for secure connections and a Micrologic 3.3 trip unit for advanced protection and monitoring. The unit offers an interrupt rating of 18kA and is rated for 100% continuous load. The NEMA 12 enclosure provides protection against dust and light splashing water.

• Part Number: LGL36250CU31X
• Manufacturer: Square D
• Series/Frame: PowerPact L
• Amperage: 250A
• Voltage: 600VAC
• Poles: 3 Pole
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA
• Enclosure: NEMA 12
• Connection Type: Lugs
• Trip Unit: Micrologic 3.3
• Continuous Load Rating: 100%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGL36250CU31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Breaker Type : 100% rated
• Protection : Solid State

Product Data

• UPC : 785901609124
• GTIN : 00785901609124
• Country of Origin : Mexico
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 2...600 kcmil copper
  AWG 2...500 kcmil aluminium
