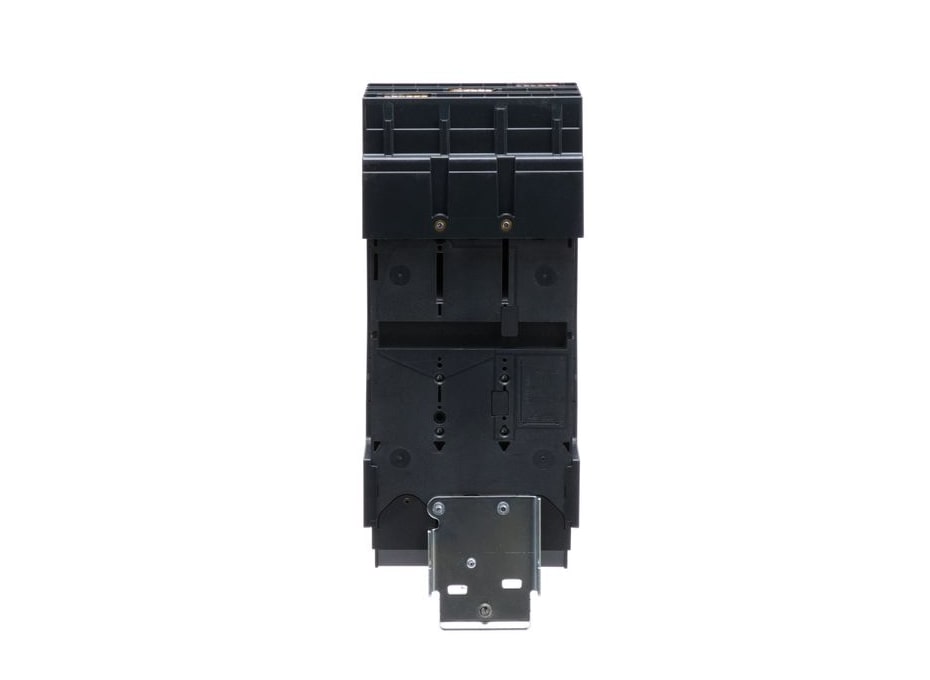

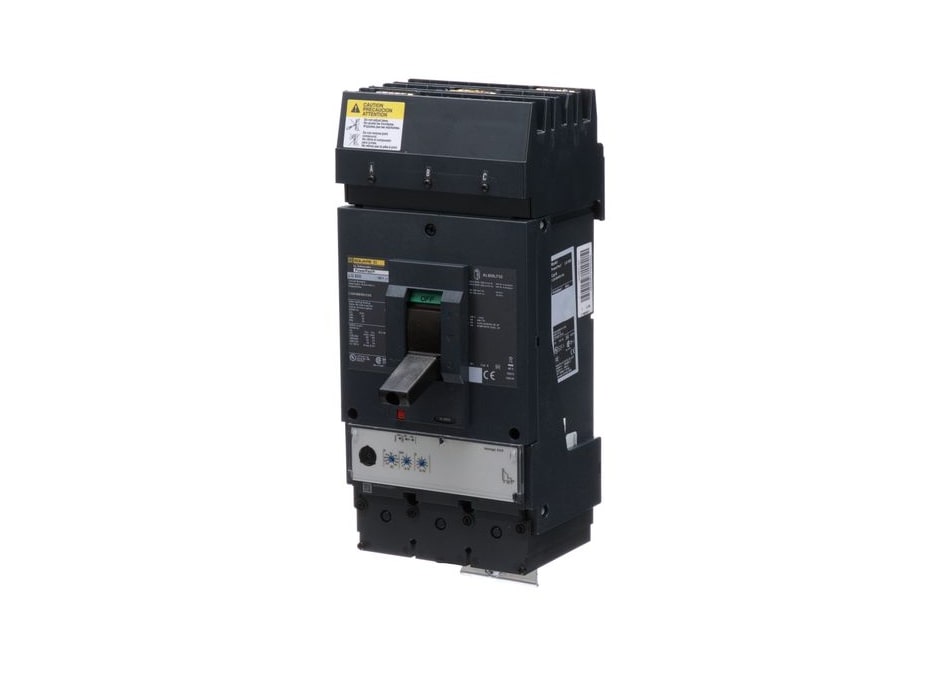

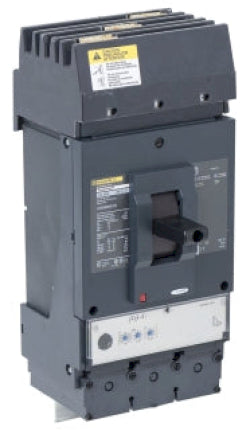

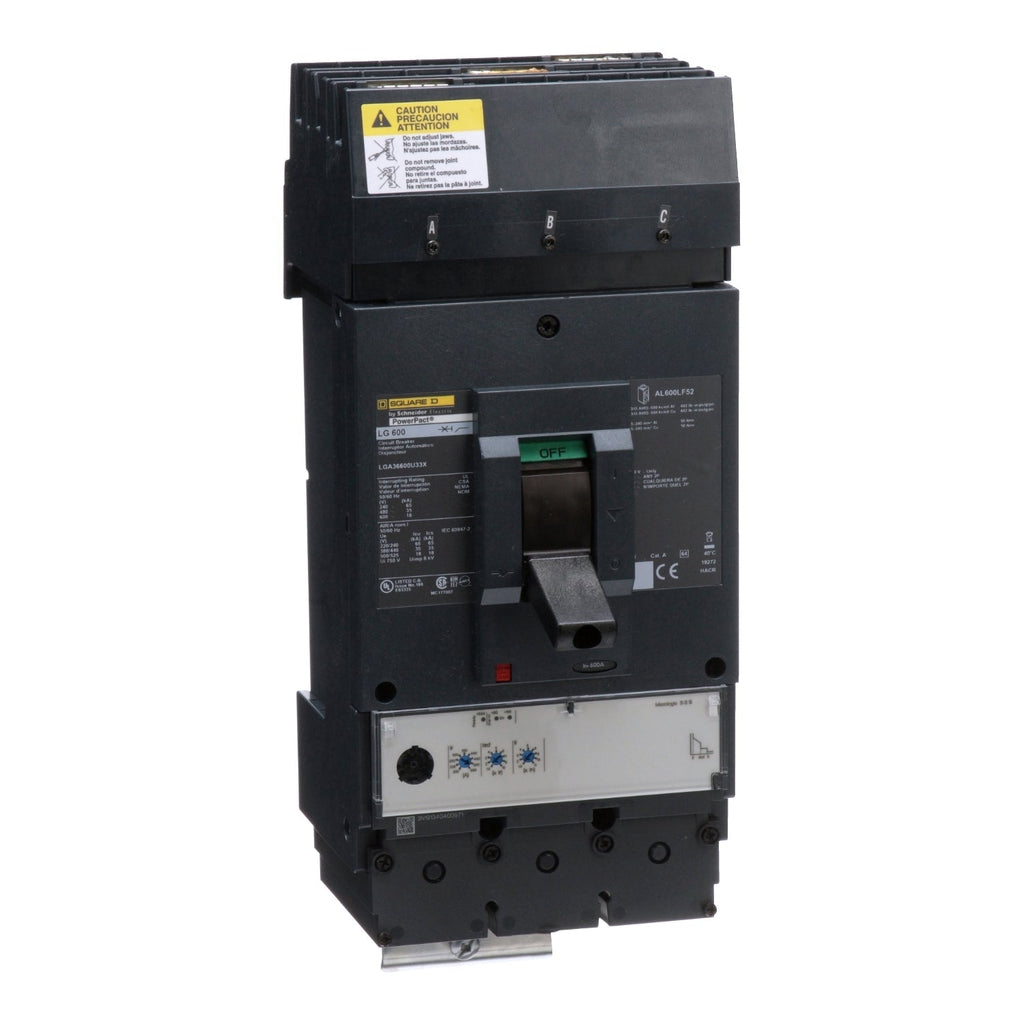

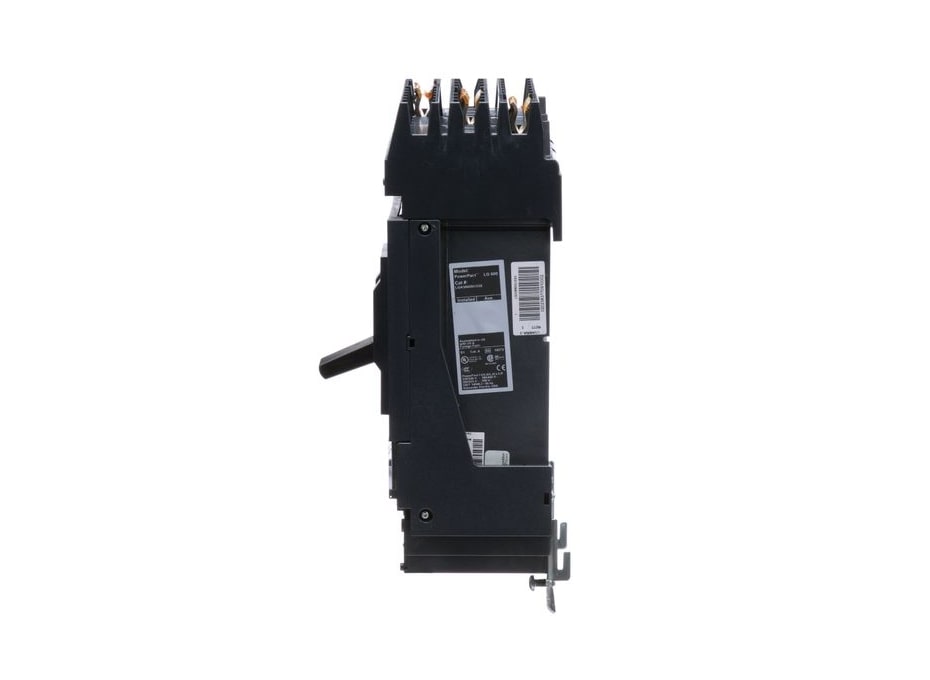

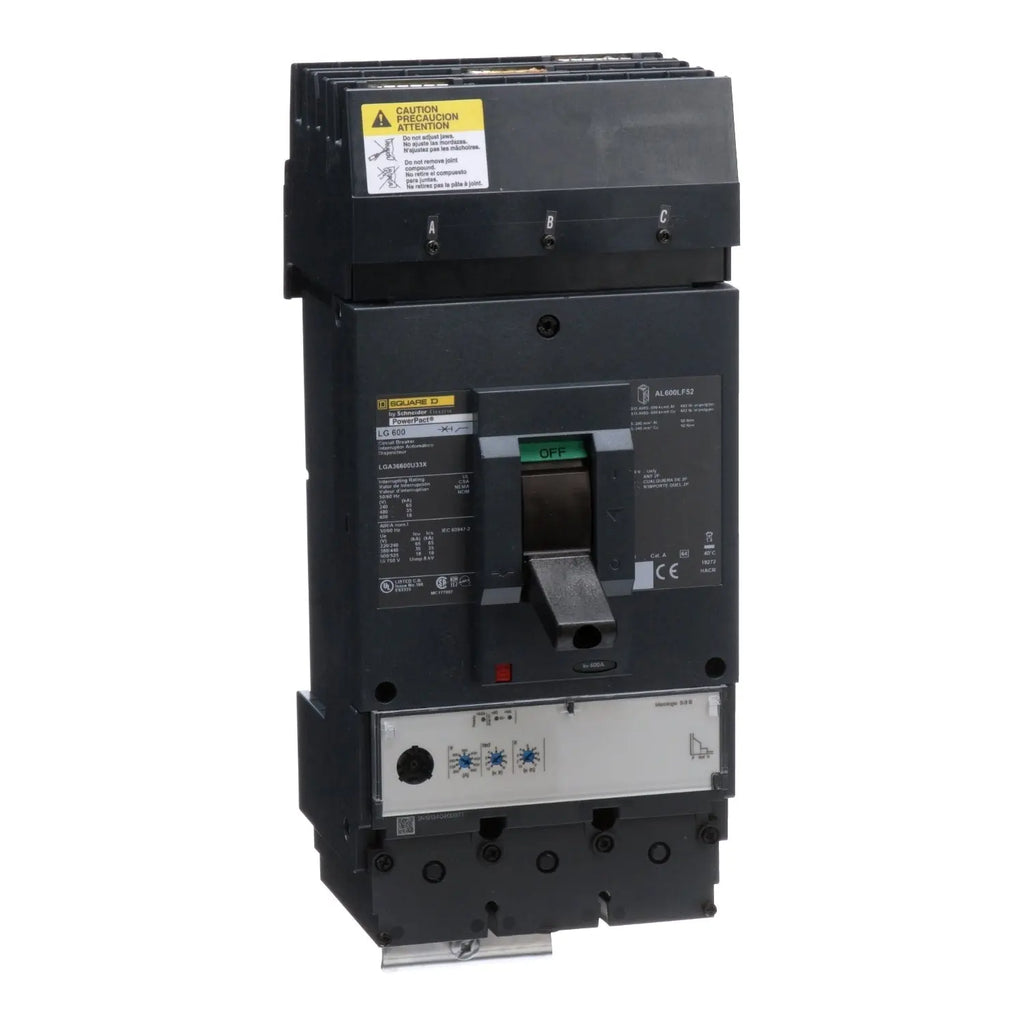

LGA36600U33X - Square D Powerpact L 600A 3 Pole 600V Molded Case Circuit Breaker with MicroLogic 3.3S Trip

LGA36600U33X

LGA36600U33X is a Square D Powerpact L molded case circuit breaker rated for 600 amps and 600 volts with 3 poles and MicroLogic 3.3S electronic trip unit.This 3-pole circuit breaker features an I-Line style plug-in mounting, solid state LSI (Long-Time, Short-Time, Instantaneous) trip functions, and a 35kA interrupting rating at 480V. It is UL, CSA, IEC, CE, NEMA, and CCC certified and designed for reliable protection against overloads and short circuits in industrial and commercial applications.

Key Specifications
• Amperage: 600A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 35kA at 480V, 65kA at 240V, 18kA at 600V
• Frame Type: Powerpact L
• Trip Unit: MicroLogic 3.3S electronic with LSI functions
• Connection: I-Line style plug-in with lug terminals
• Continuous Current Rating: 80%
• Certifications: UL 489, CSA, IEC, CE, NEMA, CCC
• Wire Gauge: AWG 2/0 to 500 kcmil aluminum/copper
At Essential Parts, we offer fast shipping, lowest price, and &l(more...)


Specifications

• Part Number: LGA36600U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• MCM Size : Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC



Product Data

• UPC : 785901093374
• GTIN : 00785901093374
• Country of Origin : Mexico
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 18.7 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
