LGA36600U31X - Square D 600A 600VAC 3 Pole Molded Case Circuit Breaker I-Line Mount

Save $3,974.15
SKU: LGA36600U31X-New
Condition: New
Price:
$3,804.85 $7,779.00
Stock:
44 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

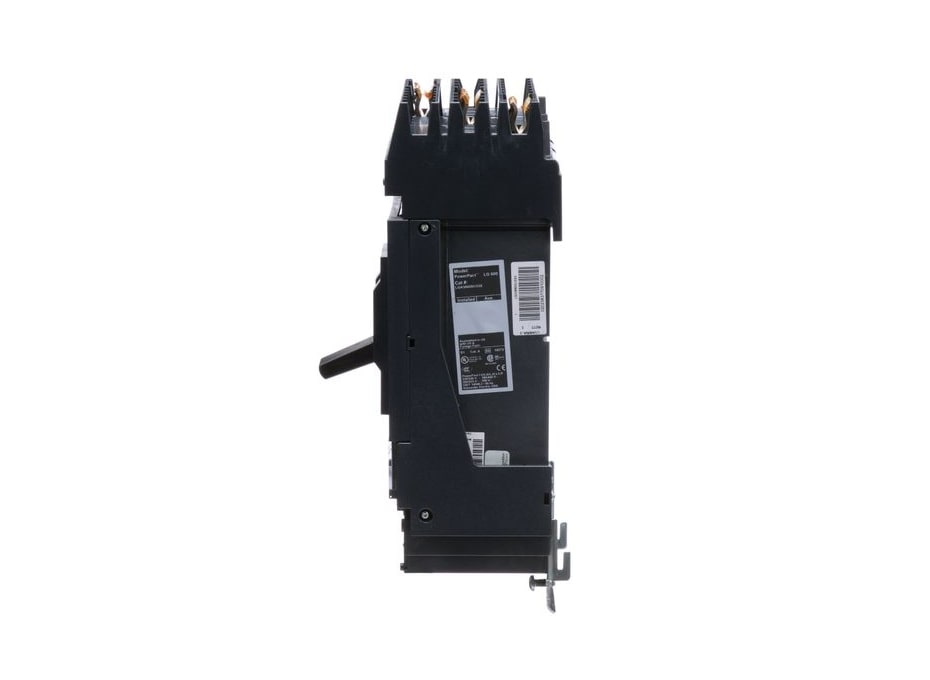

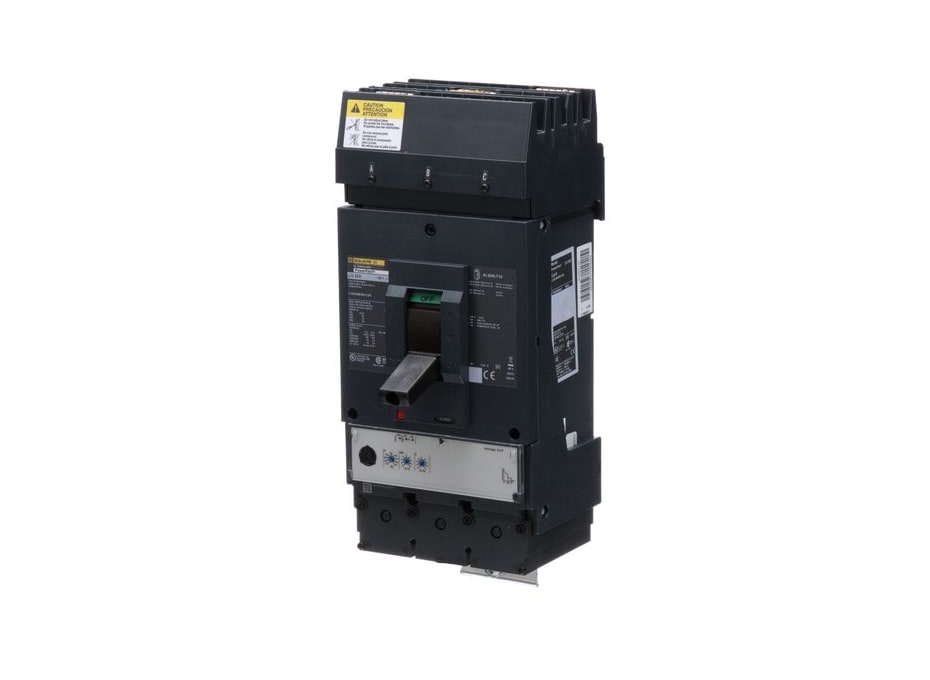

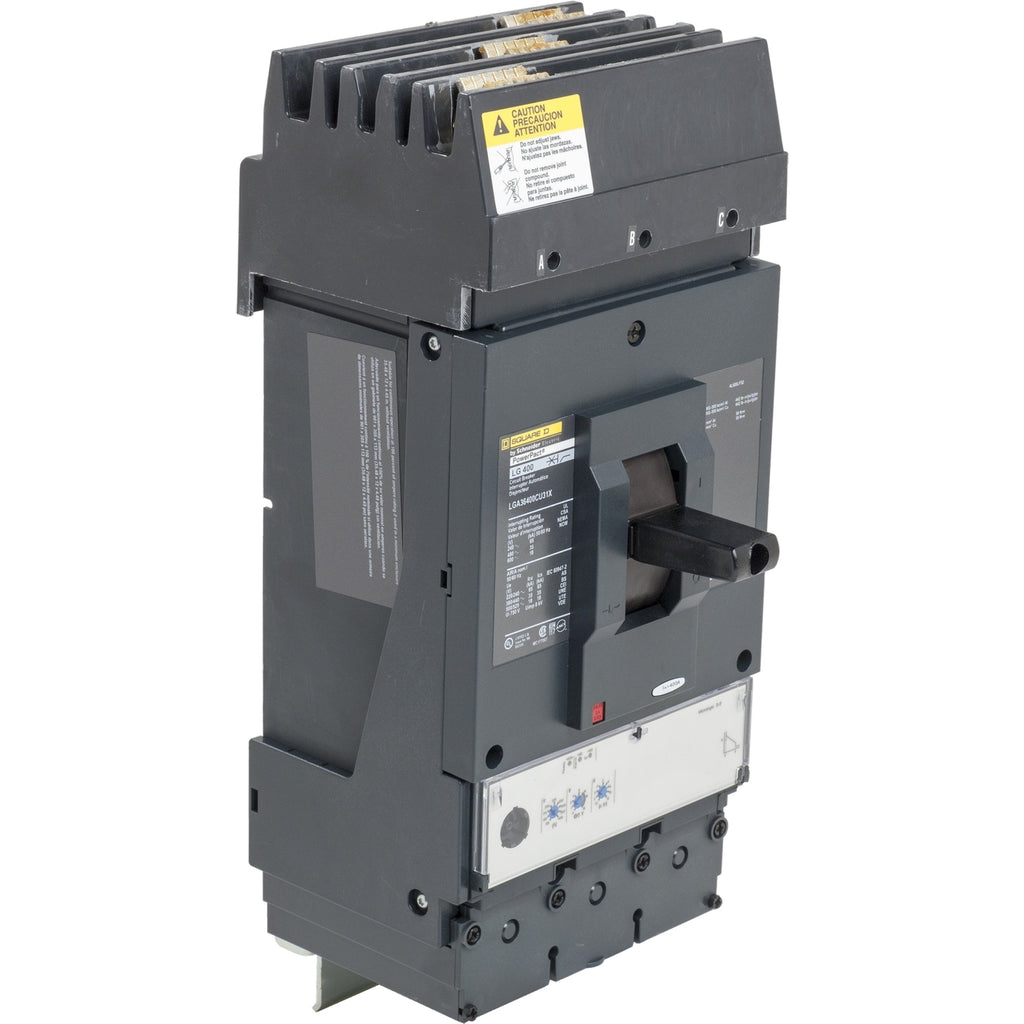

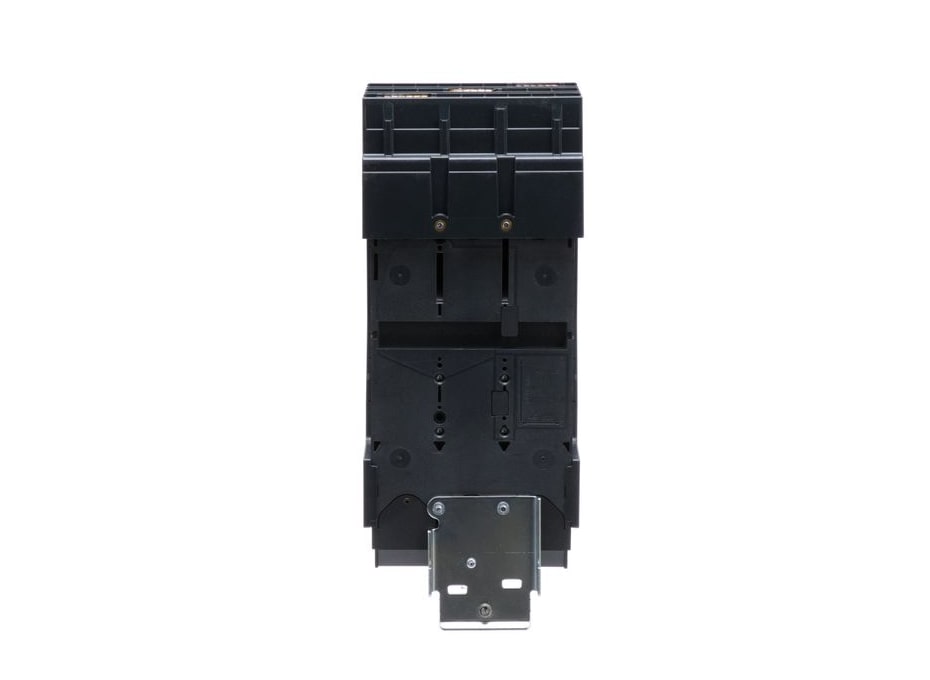

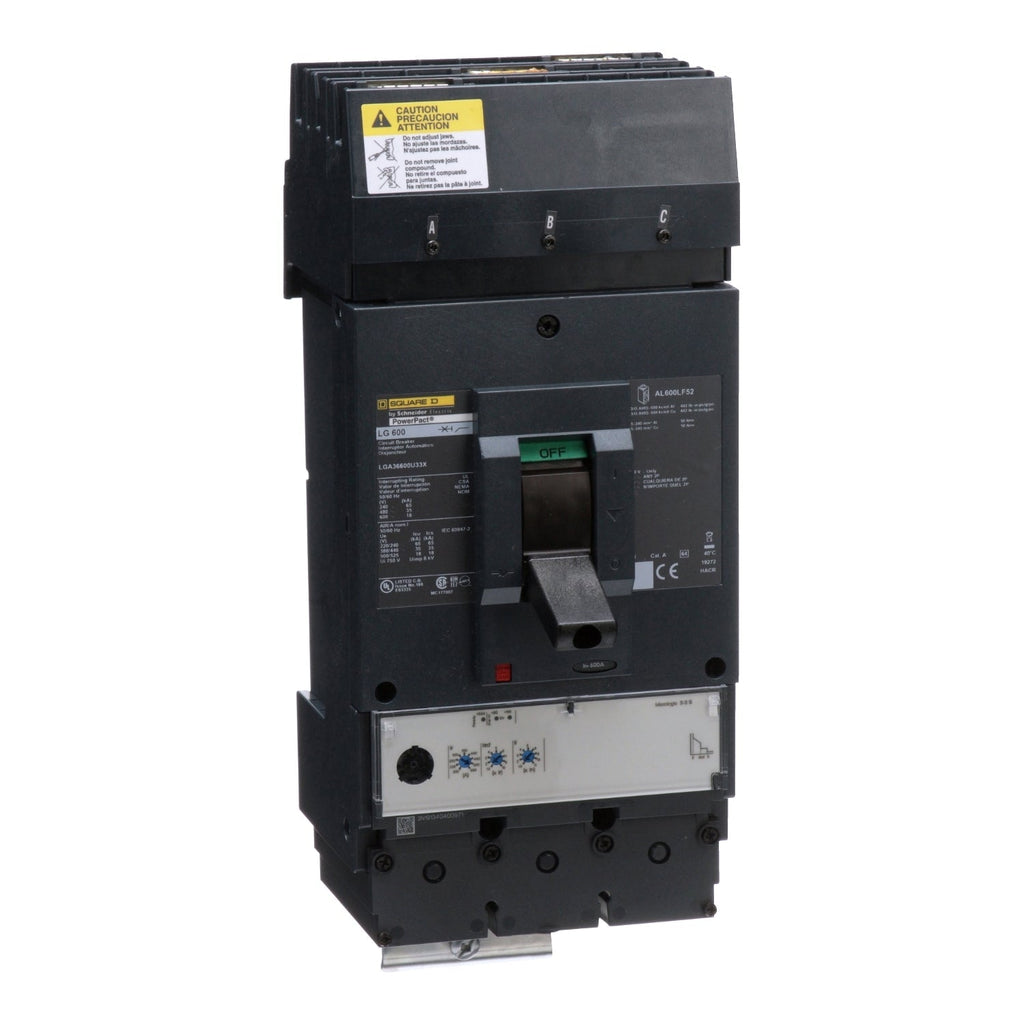

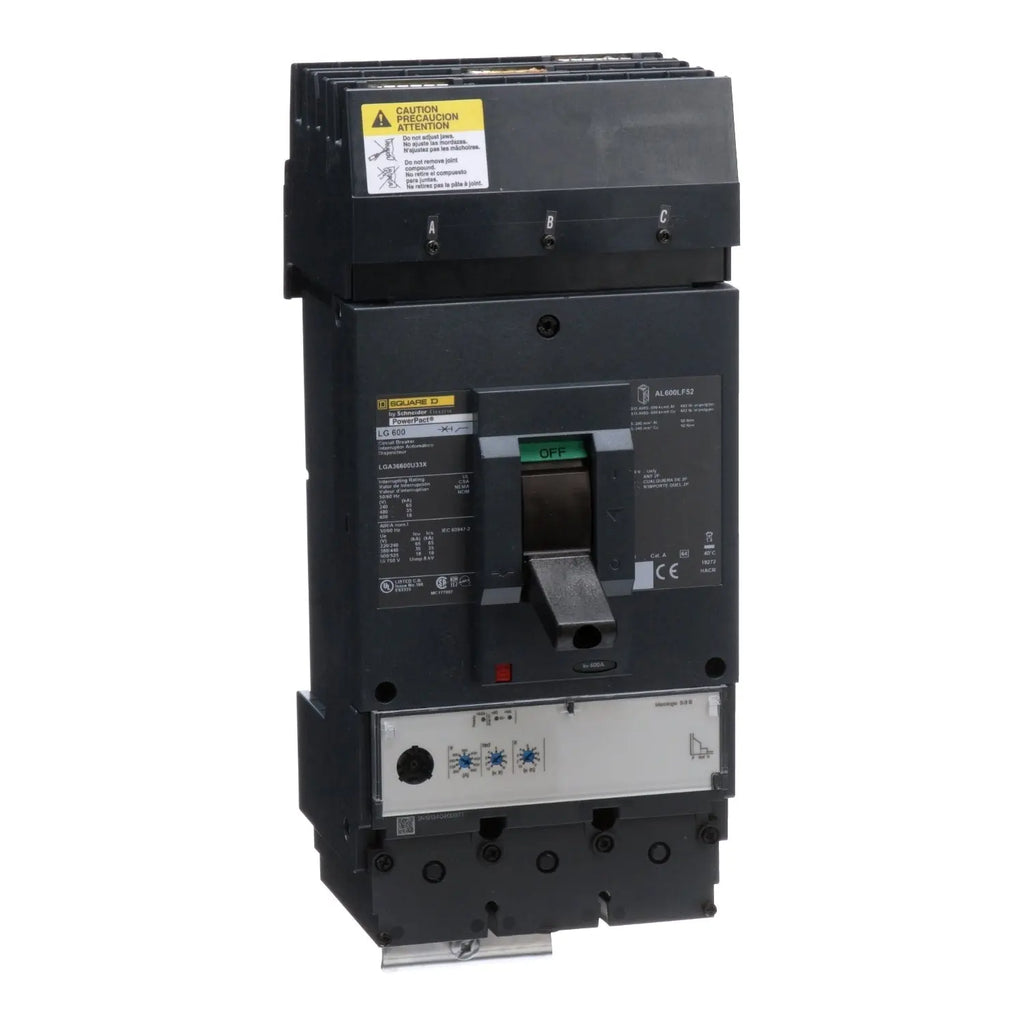

Square D LGA36600U31X Circuit Breaker | Powerpact LGA 600V 600A - Essential Electric Supply
LGA36600U31X - Square D 600A 600VAC 3 Pole Molded Case Circuit Breaker I-Line Mount - Essential Electric Supply
LGA36600U31X - Square D 600A 600VAC 3 Pole Molded Case Circuit Breaker I-Line Mount - Essential Electric Supply
LGA36600U31X - Square D 600A 600VAC 3 Pole Molded Case Circuit Breaker I-Line Mount - Essential Electric Supply
LGA36600U31X - Square D 600A 600VAC 3 Pole Molded Case Circuit Breaker I-Line Mount - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
Square D LGA36600U31X Circuit Breaker | Powerpact LGA 600V 600A - Essential Electric Supply
LGA36600U31X - Square D 600A 600VAC 3 Pole Molded Case Circuit Breaker I-Line Mount - Essential Electric Supply
LGA36600U31X - Square D 600A 600VAC 3 Pole Molded Case Circuit Breaker I-Line Mount - Essential Electric Supply
LGA36600U31X - Square D 600A 600VAC 3 Pole Molded Case Circuit Breaker I-Line Mount - Essential Electric Supply
LGA36600U31X - Square D 600A 600VAC 3 Pole Molded Case Circuit Breaker I-Line Mount - Essential Electric Supply

Description

LGA36600U31X


LGA36600U31X is a Square D 3 pole molded case circuit breaker rated for 600 Amps and 600VAC voltage with I-Line unit mounting.

This circuit breaker features solid state protection with long time and instantaneous trip functions. It has an interrupting rating of 18kA at 600VAC and is part of the PowerPact L series with MicroLogic 3.3 trip unit. The breaker supports AWG 2/0-500 kcmil aluminum or copper wiring and complies with UL, CSA, IEC, NEMA, and RoHS standards. It is designed for use as a main panel disconnect and includes a toggle actuator in black color.

    Key Specifications
    • Amperage: 600A
    • Voltage: 600VAC
    • Poles: 3
    • Mounting Type: I-Line Unit Mount
    • Interrupting Rating: 18kA at 600VAC
    • Series/Frame: PowerPact L (LGA)
    • Trip Unit: MicroLogic 3.3 with Long Time and Instantaneous Trip
    • Connection Type: I-Line Style Plug-In
    • Wire Gauge: AWG 2/0-500 kcmil Aluminum/Copper
    • Standards: UL 489, CSA, IEC, NEMA, RoHS
    • Color: Black
    • Actuator Type: Toggle

At Essential Par(more...)

Specifications

  • Part Number: LGA36600U31X
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : LGA
  • Voltage : 600
  • Amperage : 600
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : L Frame
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • MCM Size : Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
  • Protection : Solid State
  • Phase Connection : ABC

Product Data

  • UPC : 785901989813
  • GTIN : 00785901989813
  • Country of Origin : United States
  • Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
  • Weight : 18.999 lb
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper

Accesories

Part Manufacture Sub Category
S29452
S29450
S29392
S29393
S29405
AL400L61K3
