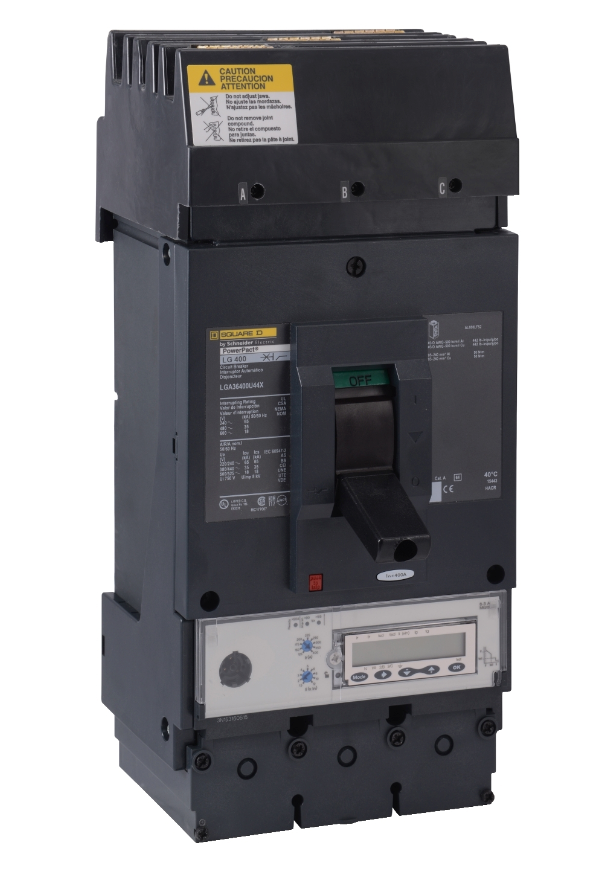

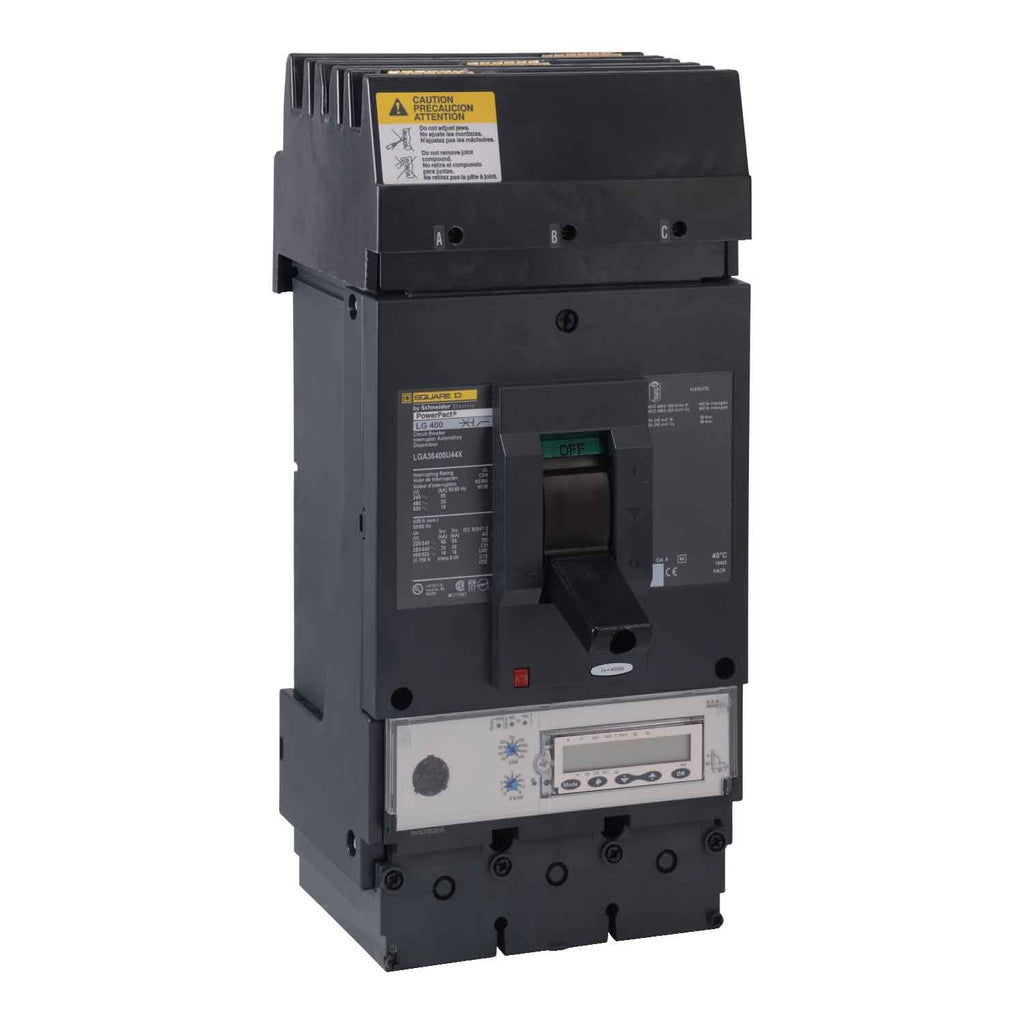

LGA36600U44X - Square D 600A 600V 3-Pole PowerPact L-Frame Circuit Breaker with Micrologic Trip Unit

LGA36600U44X

LGA36600U44X is a Square D PowerPact L-Frame molded case circuit breaker rated for 600 Amps and 600 Volts AC with 3 poles.This circuit breaker features an electronic Micrologic 6.3A LSIG trip unit with current limiting technology, an interrupt rating of 35kA at 480V, and I-Line plug-in mounting style. It supports wire sizes from 3 AWG to 500 kcmil and is UL listed for reliable industrial and commercial power distribution protection.

Key Specifications
• Amperage: 600 Amps
• Voltage: 600 VAC
• Poles: 3
• Frame/Series: PowerPact L-Frame
• Trip Unit: Micrologic 6.3A LSIG Electronic
• Interrupt Rating: 35kA @ 480V
• Mounting Type: I-Line Style Plug-In
• Wire Size Range: 3 AWG to 500 kcmil
• Technology: Current Limiter
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGA36600U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time, Short Time, Instantaneous and Ground Fault Trip
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• UPC : 78590195469
• GTIN : 00785901954699
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
