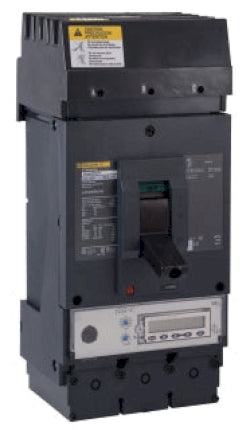

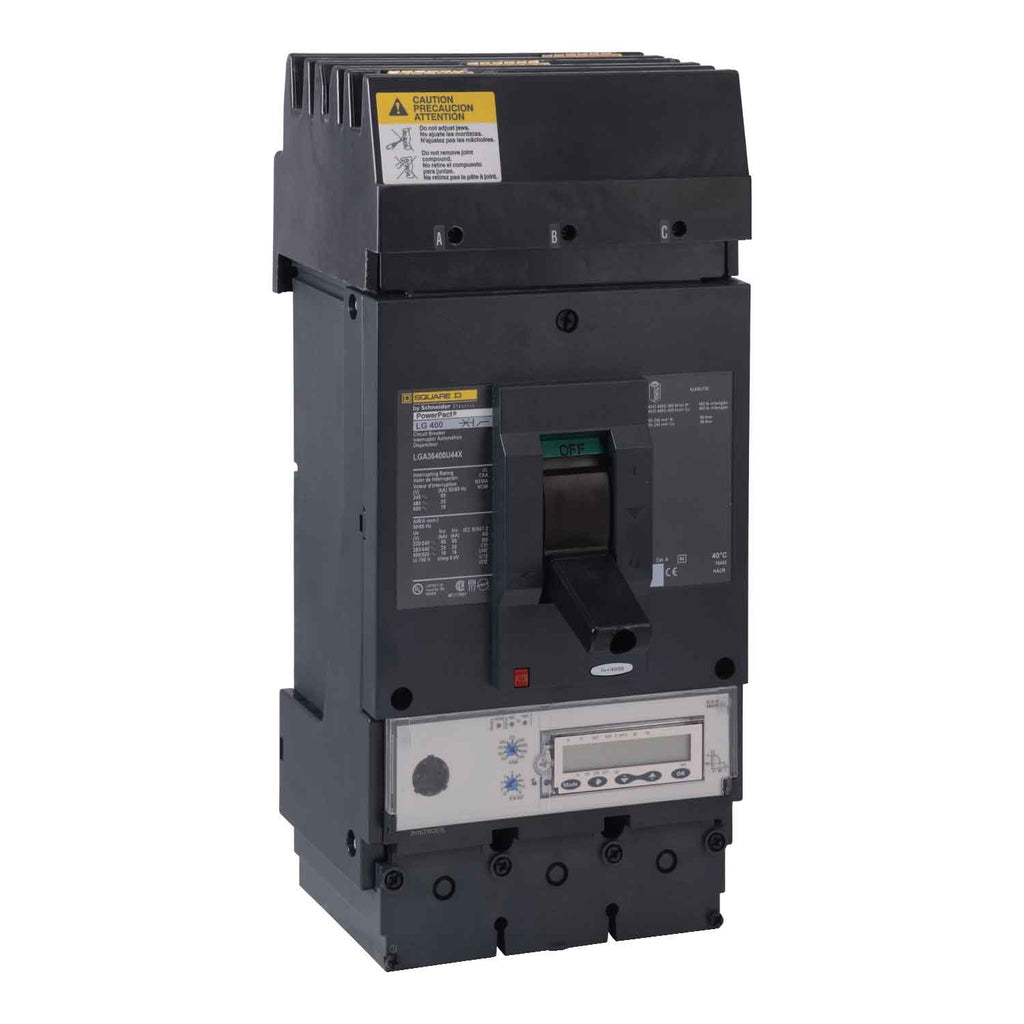

LGA36400U44X - Square D PowerPact L 400A 600V 3P 35kA I-Line Plug-In Molded Case Circuit Breaker

LGA36400U44X

LGA36400U44X is a Square D PowerPact L series, 3-pole, molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This circuit breaker features a solid-state trip unit, 400A amperage rating, 600V voltage rating, and a 35kA interrupting capacity at 480V. It is UL listed and designed for I-Line plug-in mounting, offering reliable performance and easy installation in power distribution panels.

Key Specifications
• Part Number: LGA36400U44X
• Manufacturer: Square D (Schneider Electric)
• Amperage: 400A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 35kA at 480V
• Series/Frame: PowerPact L
• Trip Unit: Solid State
• Certifications: UL Listed
• Standard interrupting capacity
• Three-phase operation

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGA36400U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• UPC : 3606486284186
• GTIN : 03606486284186
• Country of Origin : Mexico
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...500 kcmil aluminium/copper
