LGA36400U33X - Square D 400A 600V 3-Pole PowerPact L Circuit Breaker with Micrologic 3.3S Trip Unit

Save $2,949.25
SKU: LGA36400U33X-New
Condition: New
Price:
$3,019.75 $5,969.00
Stock:
64 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

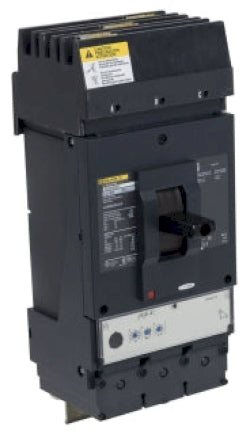

LGA36400U33X - Square D/ Schneider Electric I-Line Style Plug-In 400 Amp 3 Pole Circuit Breaker - Essential Electric Supply

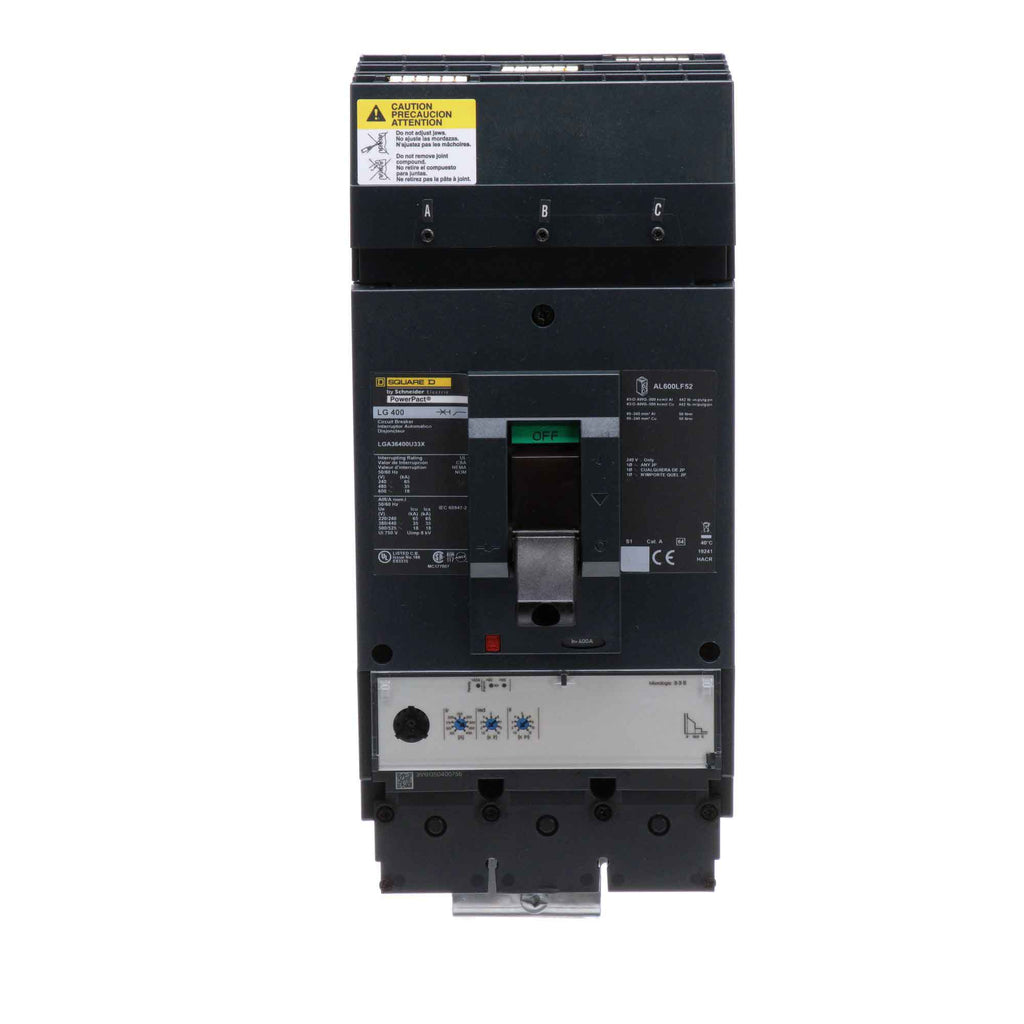

LGA36400U33X - Square D 400A 600V 3-Pole PowerPact L Circuit Breaker with Micrologic 3.3S Trip Unit - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LGA36400U33X - Square D/ Schneider Electric I-Line Style Plug-In 400 Amp 3 Pole Circuit Breaker - Essential Electric Supply
LGA36400U33X - Square D 400A 600V 3-Pole PowerPact L Circuit Breaker with Micrologic 3.3S Trip Unit - Essential Electric Supply

Description

LGA36400U33X


LGA36400U33X is a Square D PowerPact L series 3-pole molded case circuit breaker rated for 400 amps and 600 volts AC.This circuit breaker features an I-Line style plug-in mounting type and includes a Micrologic 3.3S electronic trip unit with LSI (long-time, short-time, instantaneous) protection functions. It has an interrupting rating of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC. The breaker is UL, CSA, IEC, CE, NEMA, and CCC certified, suitable for panelboard and switchboard applications.
    Key Specifications
    • Amperage: 400A
    • Voltage Rating: 600VAC
    • Poles: 3
    • Mounting Type: I-Line Style Plug-In
    • Interrupting Rating: 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC
    • Trip Unit: Micrologic 3.3S with LSI functions
    • Series/Frame: PowerPact L (LGA)
    • Certifications: UL, CSA, IEC, CE, NEMA, CCC
    • Connection Type: I-Line plug-in on line side, mechanical lugs on load side
    • Phase: 3
    • Wire Gauge: AWG 3/0 to 500 kcmil Aluminum/Copper
At Essential Parts, we offer fast shipping, lowe(more...)

Specifications

  • Part Number: LGA36400U33X
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : LGA
  • Voltage : 600
  • Amperage : 400
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LSI - Long-Time, Short-Time and Instantaneous
  • Terminal Connection : I-Line, Lug
  • Frame Size : L Frame
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
  • Breaker Type : 100% rated
  • Protection : Solid State
  • Phase Connection : ABC

Product Data

  • UPC : 785901809289
  • GTIN : 00785901809289
  • Country of Origin : Mexico
  • Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
  • Weight : 19.16 lb
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 3/0...500 kcmil aluminium/copper

Accesories

Part Manufacture Sub Category
S29452
S29450
S29390
S29402
S29410
AL400L61K3
