2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LGA36400CU44X

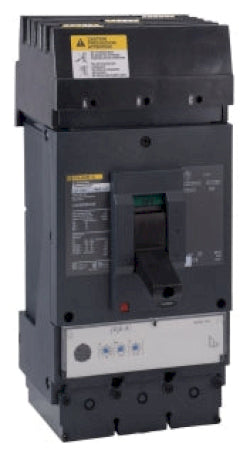

LGA36400CU44X is a Square D PowerPact L series molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3 pole, 400A, 600VAC breaker features a Micrologic 6.3A electronic trip unit with LSIG protection, I-Line plug-in mounting, and a 35kA interrupt rating at 480V. It is UL 489 listed and certified to multiple international standards for safety and performance. Engineered for high performance, the LGA36400CU44X offers adjustable long time, short time, instantaneous, and ground fault trip functions, solid state operation, and 100% rated load capability. Its I-Line style plug-in design allows for easy installation and maintenance in compatible power distribution panels.
- Part Number: LGA36400CU44X
- Manufacturer: Square D
- Series/Frame: PowerPact L
- Amperage: 400A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: I-Line Plug-In
- Interrupt Rating: 35kA @ 480V
- Frame Type: LGA
- Protection Type: LSIG (Long Time, Short Time, Instantaneous, Ground Fault)
- Rated Insulation Voltage: 750V
- Part Number: LGA36400CU44X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : LGA
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : I-Line Style Plug-In
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Terminal Connection : I-Line, Lug
- Frame Size : L Frame
- Temp Rating : 28-158 ¡F (-2-70 ¡C)
- Breaker Type : 100% rated
- Protection : Solid State
- UPC : 078590172700
- GTIN : 00785901727002
- Country of Origin : United States
- Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
- Weight : 17
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
