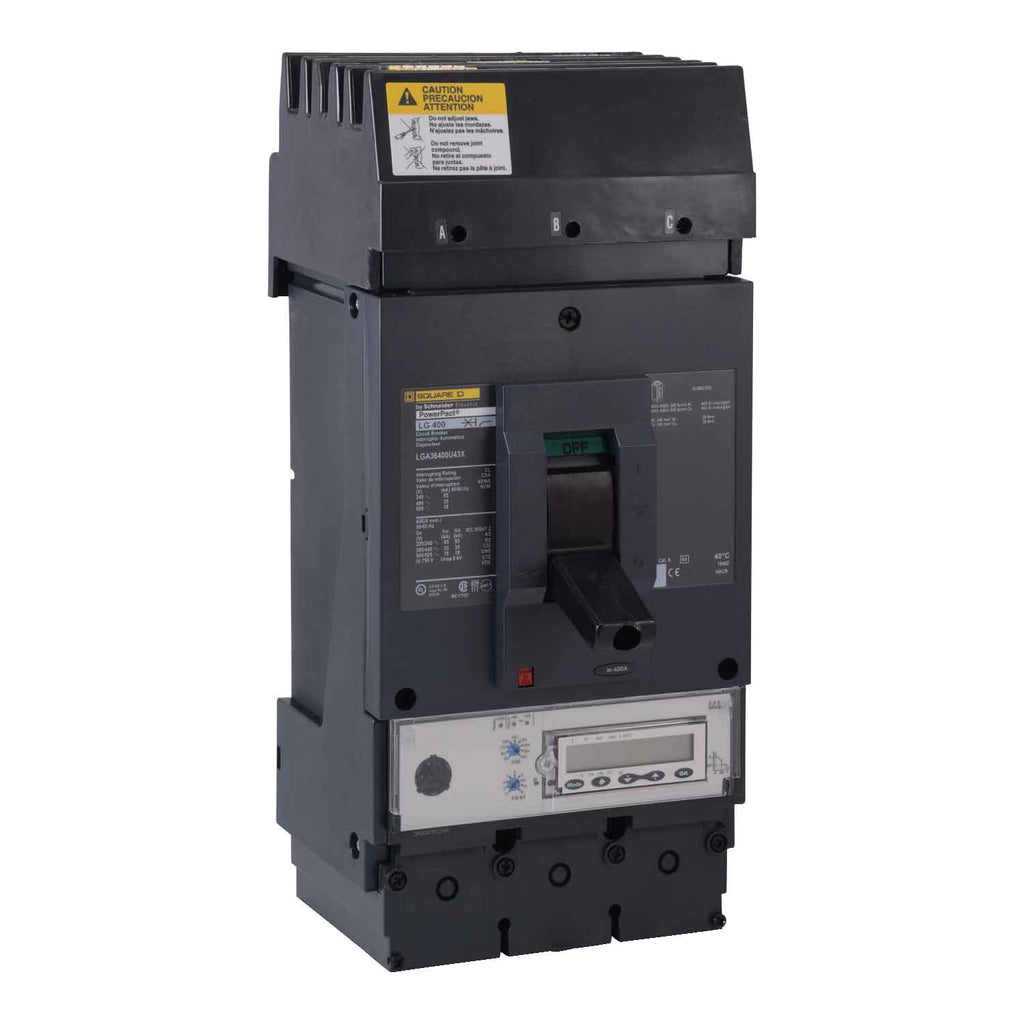

LGA36400U43X - Square D 400A 600V 3 Pole Molded Case Circuit Breaker, I-Line Plug-In, 35kAIC@480V, Solid State, LGA Frame

LGA36400U43X

LGA36400U43X is a 3 pole, 400A, 600VAC molded case circuit breaker from Square D, featuring solid state protection and I-Line style plug-in mounting for reliable power distribution. Designed for industrial and commercial applications, this breaker offers long time, short time, and instantaneous trip functions with a Micrologic 5.3A trip unit for precise protection. The LGA36400U43X is UL listed and meets multiple international standards for safety and performance. This Square D Powerpact LGA series breaker is built for durability and easy installation, with a robust frame and non-interchangeable trip unit. It supports wire gauges from AWG 3/0 to 500KCmil aluminum or copper, making it suitable for a wide range of electrical systems. The breaker is ideal for use in switchgear, panelboards, and main distribution applications where high interrupting capacity and reliable protection are required.

• Part Number: LGA36400U43X
• Manufacturer: Square D
• Series/Frame: LGA
• Amperage: 400A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 35kAIC@480V
• Protection T(more...)


  Specifications

  • Part Number: LGA36400U43X
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : LGA
  • Voltage : 600
  • Amperage : 400
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time, Short Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : L Frame
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • Protection : Solid State



  Product Data

  • UPC : 785901702641
  • GTIN : 00785901702641
  • Country of Origin : United States
  • Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
  • Weight : 17
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 3/0...500 kcmil aluminium/copper
