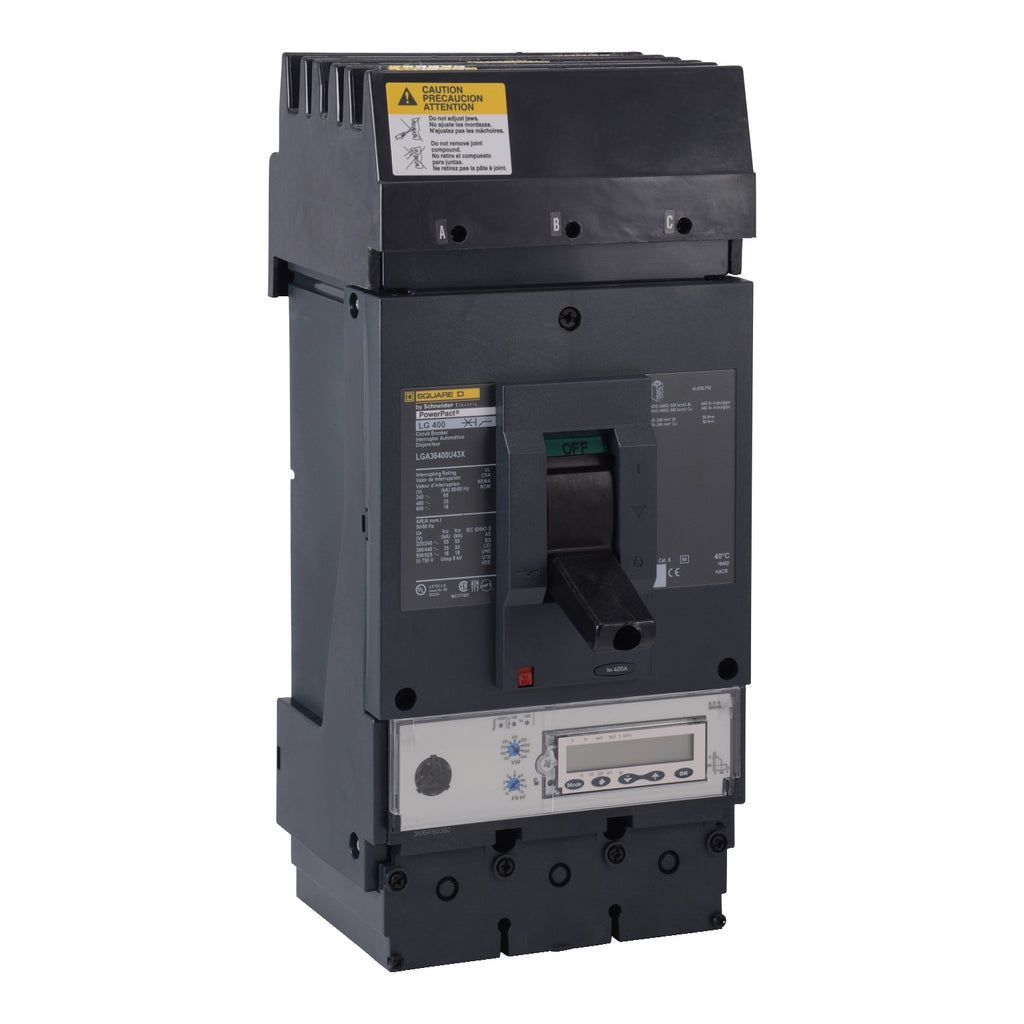

LGA36400CU43X - Square D PowerPact L Circuit Breaker 400A 600VAC 3 Pole I-Line MicroLogic 5.3A 18kA

LGA36400CU43X

LGA36400CU43X is a Square D PowerPact L molded case circuit breaker designed for reliable electrical system protection.This 3-pole circuit breaker features a 400 ampere rating, 600 VAC maximum voltage, and an 18kA interrupt rating. It includes an I-Line mounting type and a MicroLogic 5.3A trip unit for precise and efficient trip control. The breaker is rated for 100% duty cycle and uses ABC trip characteristics.

Key Specifications
• Manufacturer: Square D
• Part Number: LGA36400CU43X
• Amperage: 400A
• Voltage: 600 VAC
• Poles: 3
• Interrupt Rating: 18kA
• Series/Frame: PowerPact L
• Mounting Type: I-Line
• Trip Unit: MicroLogic 5.3A
• Duty Cycle: 100%
• Trip Curve: ABC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LGA36400CU43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Breaker Type : 100% rated
• Protection : Solid State



Product Data

• UPC : 078590195119
• GTIN : 00785901951193
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
