Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
LDC3500X

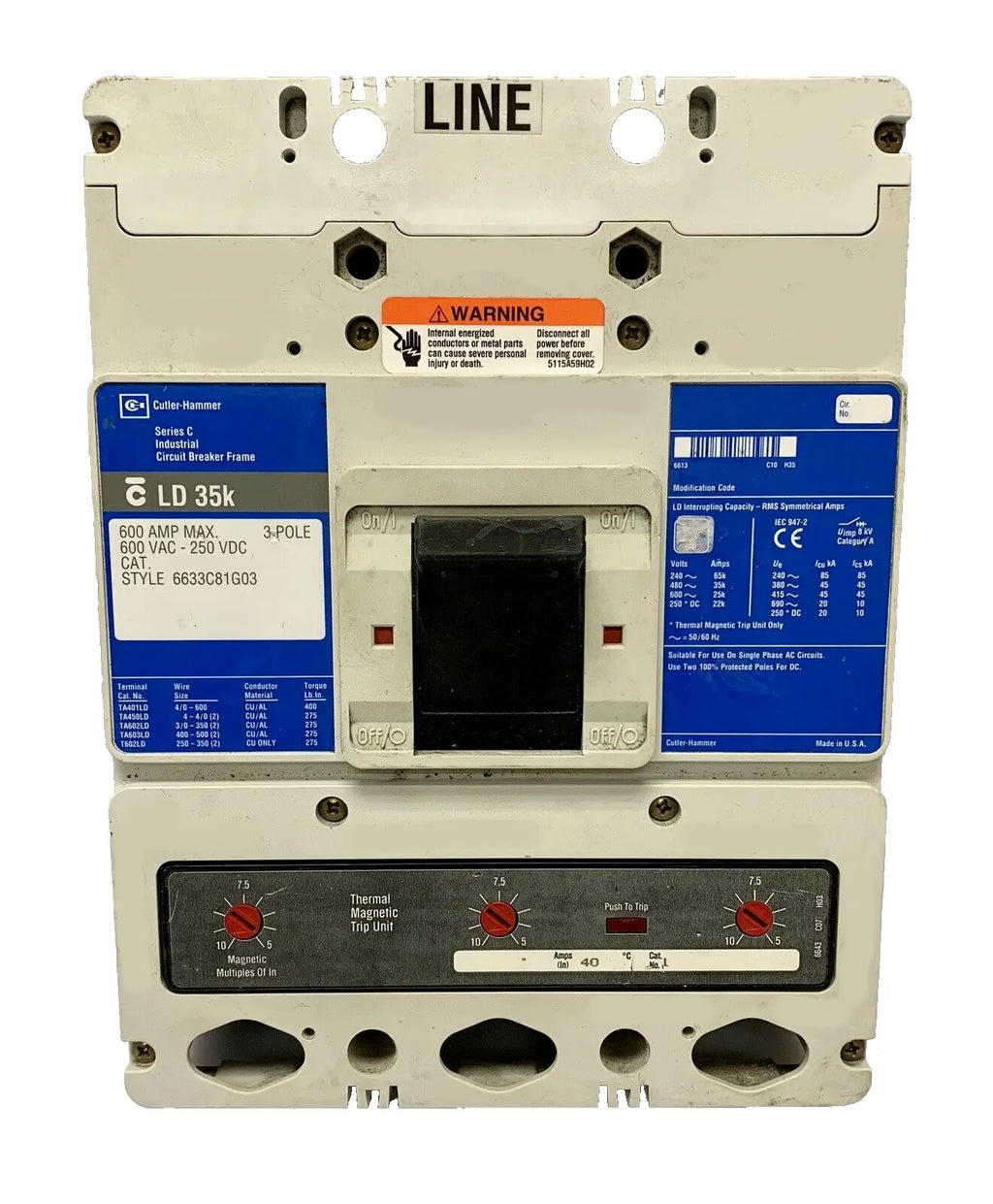

LDC3500X is an Eaton Series C molded case circuit breaker designed for industrial and commercial power distribution applications. This three-pole breaker features a thermal magnetic trip unit with fixed trip characteristics and delivers reliable overcurrent protection in demanding environments. LDC3500X combines high interrupting capacity with current-limiting technology to protect circuits from short-circuit faults while maintaining system stability. The breaker is rated for 500 amperes at 600 volts AC and 250 volts DC, with an interrupt rating of 65 kAIC at 240 Vac and 35 kAIC at 480 Vac. It operates at 50/60 Hz frequency and features aluminum terminals for both line and load connections. The unit measures 8.25 inches in length, height, and width, with a total weight of 16 pounds.
- Amperage Rating: 500 A
- Voltage Rating: 600 Vac, 250 Vdc
- Number of Poles: Three-pole
- Series: Eaton Series C
- Frame Type: L-frame
- Trip Type: T186 Thermal Magnetic
- Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
- Frequency: 50/60 Hz
- Terminal Material: Aluminum
- Certifications: UL 489
- Dimensions: 8.25 in x 8.25 in x 8.25 in
- Weight: 16 lb
Specifications
- Part Number: LDC3500X
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : LDC
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 20
