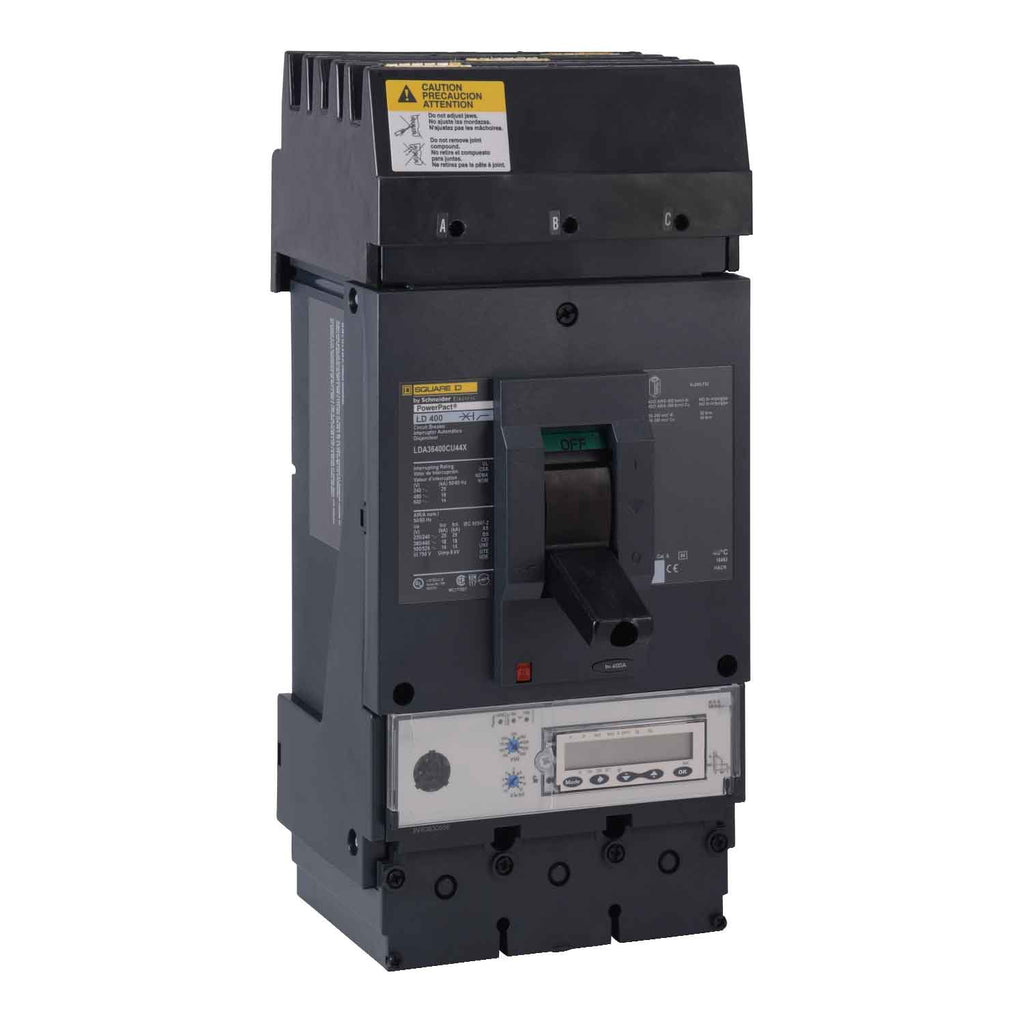

LDA36600U44X - Square D 600A 600V 3 Pole I-Line Molded Case Circuit Breaker with Micrologic Trip Unit

LDA36600U44X

LDA36600U44X is a Square D molded case circuit breaker designed for high-performance electrical protection in industrial and commercial applications.This 3-pole circuit breaker is rated for 600 amps and 600 volts AC, featuring an I-Line style plug-in mounting for easy installation. It includes a Micrologic 6.3A trip unit providing reliable trip protection and an interrupt rating of 14kA at 600VAC. The breaker is part of the PowerPact L series, ensuring robust durability and compliance with industry certifications.

• Manufacturer: Square D
• Part Number: LDA36600U44X
• Amperage: 600A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 14kA at 600VAC
• Series/Frame: PowerPact L
• Trip Unit: Micrologic 6.3A
• Certifications: Industry standard compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LDA36600U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LDA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 13.7
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
