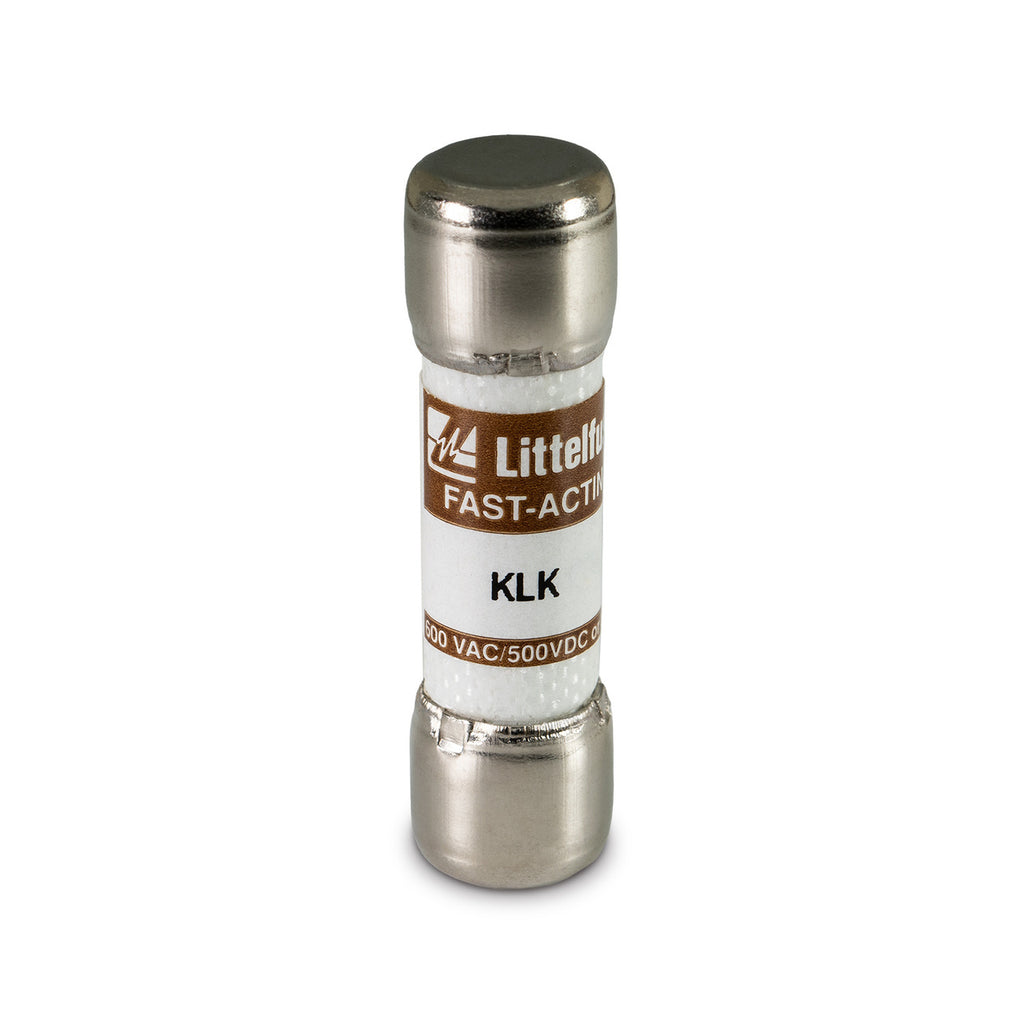

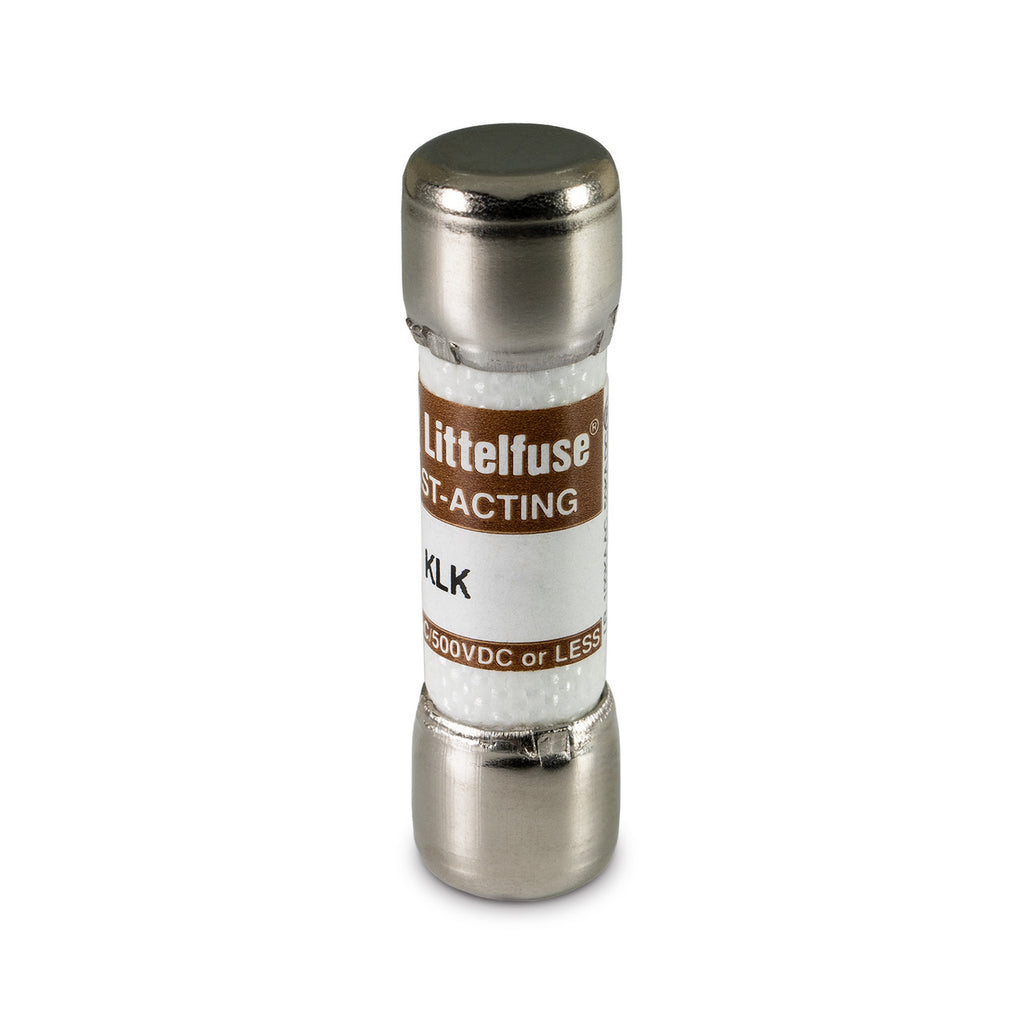

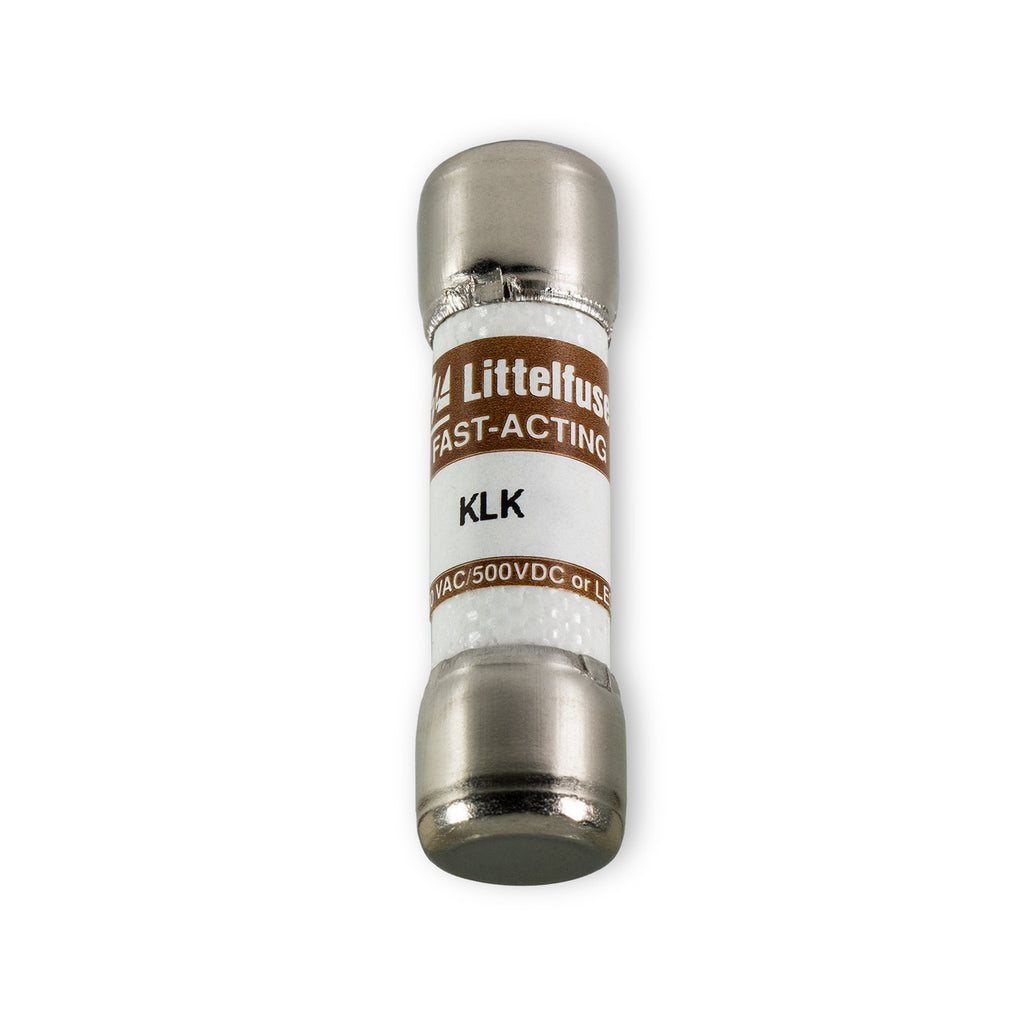

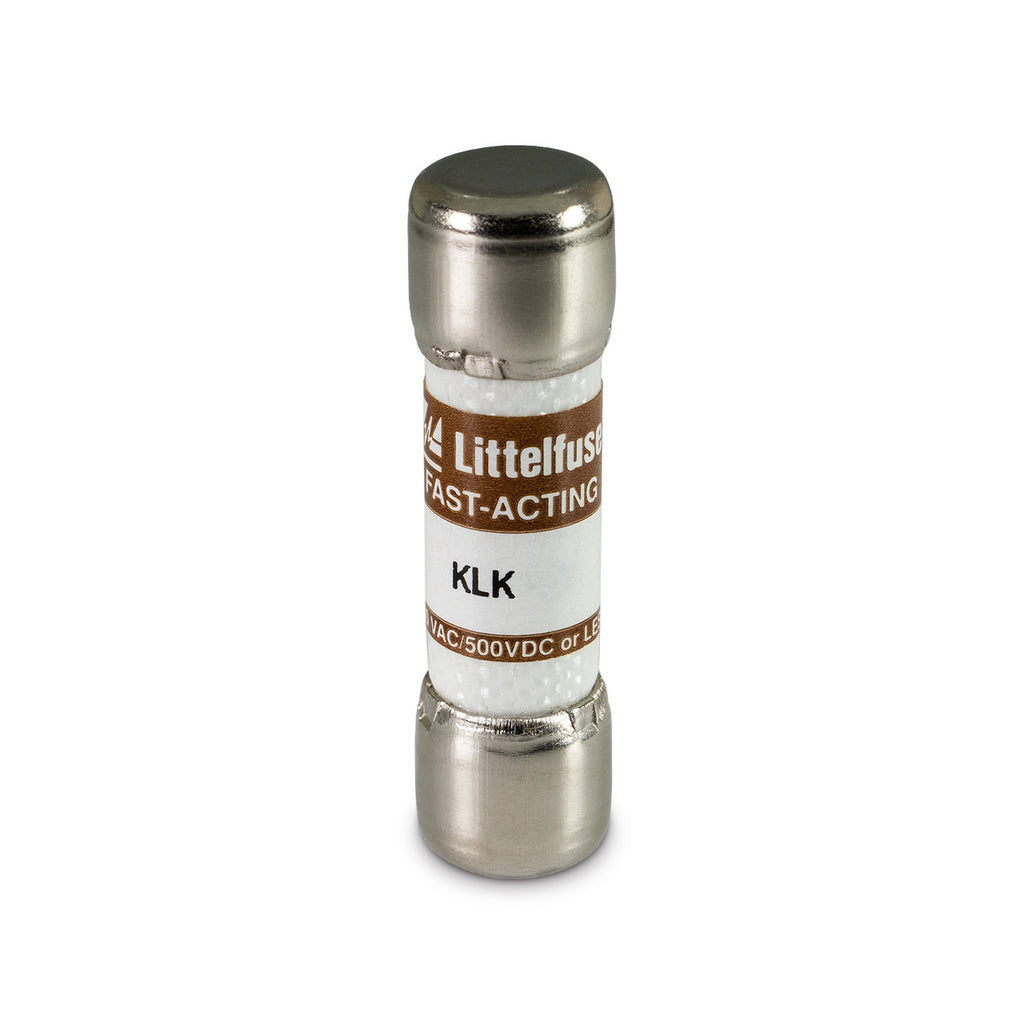

KLK006 - Littelfuse 6 Amp 600 Volt Fast-Acting Midget Fuse Class KLK

KLK006

KLK006 is a Littelfuse 6 Amp, 600 Volt fast-acting midget fuse designed for circuit protection in high AC fault current applications.This Littelfuse KLK006 fuse features a compact 13/32 inch diameter by 1-1/2 inch length size, with a fast-acting response time and current limiting characteristics. It is rated for 600 VAC and 500 VDC operation, with an interrupting rating of up to 100,000 AIC at 600 VAC and 50,000 AIC at 500 VDC. The fuse is UL Listed, CSA Certified, and RoHS Compliant, making it suitable for industrial and military applications requiring reliable overcurrent protection.

Key Specifications
• Amperage Rating: 6 Amps
• Voltage Rating: 600 Volts AC, 500 Volts DC
• Fuse Type: Class Midget (KLK Series)
• Response Time: Fast Acting
• Interrupting Rating: 100,000 AIC @ 600 VAC, 50,000 AIC @ 500 VDC
• Physical Size: 13/32 inch diameter x 1-1/2 inch length
• Current Limiting
• Certifications: UL Listed, CSA Certified, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLK006
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLK Series - Fast-Acting Midget Fuses
• Type : KLK Series - Fast-Acting Midget Fuses
• Voltage : 600
• Amperage : 6
• AIC rating : 100kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1
• Velocity : FA - Fast Action

Product Data

• UPC : 079458250589
• GTIN : 00079458250589
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 6.8
• Certification : UL Listed, CSA Certified, CE, QPL, RoHS
