Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

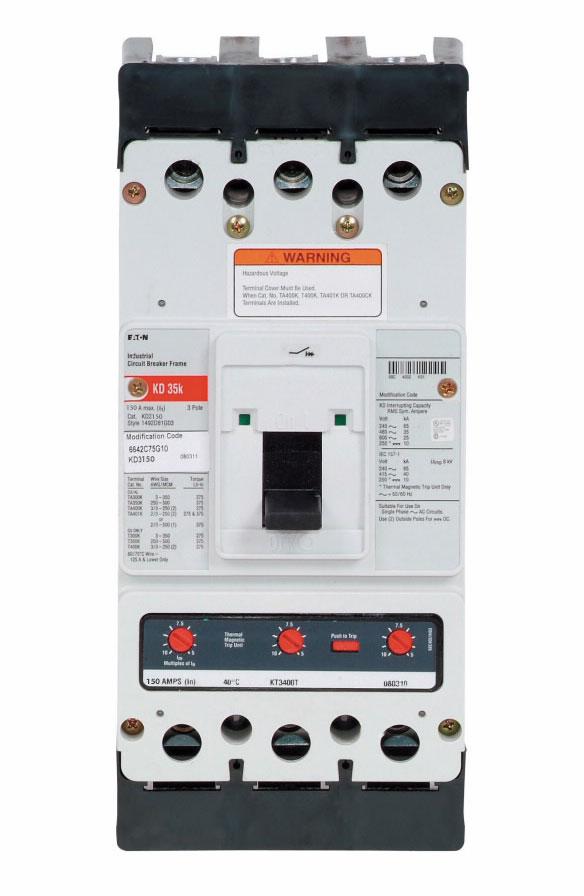

KD3150Y
KD3150Y is a 3-pole, 150A, 600V molded case circuit breaker from Eaton, designed for reliable protection in industrial and commercial power distribution systems.This Eaton Series C K-frame circuit breaker features a bolt-on mounting configuration and is rated for 600 Vac maximum. It provides thermal-magnetic trip protection and is suitable for use in a wide range of low voltage applications, including motor and starter protection.
- Part Number: KD3150Y
- Manufacturer: Eaton
- Amperage Rating: 150A
- Voltage Rating: 600 Vac
- Poles: 3
- Mounting Type: Bolt-On
- Series/Frame: Series C K-frame
- Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC
- Connection Type: Feed-Thru
- Phase: 3
- Wire Range: 3-350 AWG Cu/Al
- Terminal Torque: 6-8 lb-ft
Specifications
- Part Number: KD3150Y
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : KD
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679210055
- GTIN : 00786679210055
- Weight : 13
