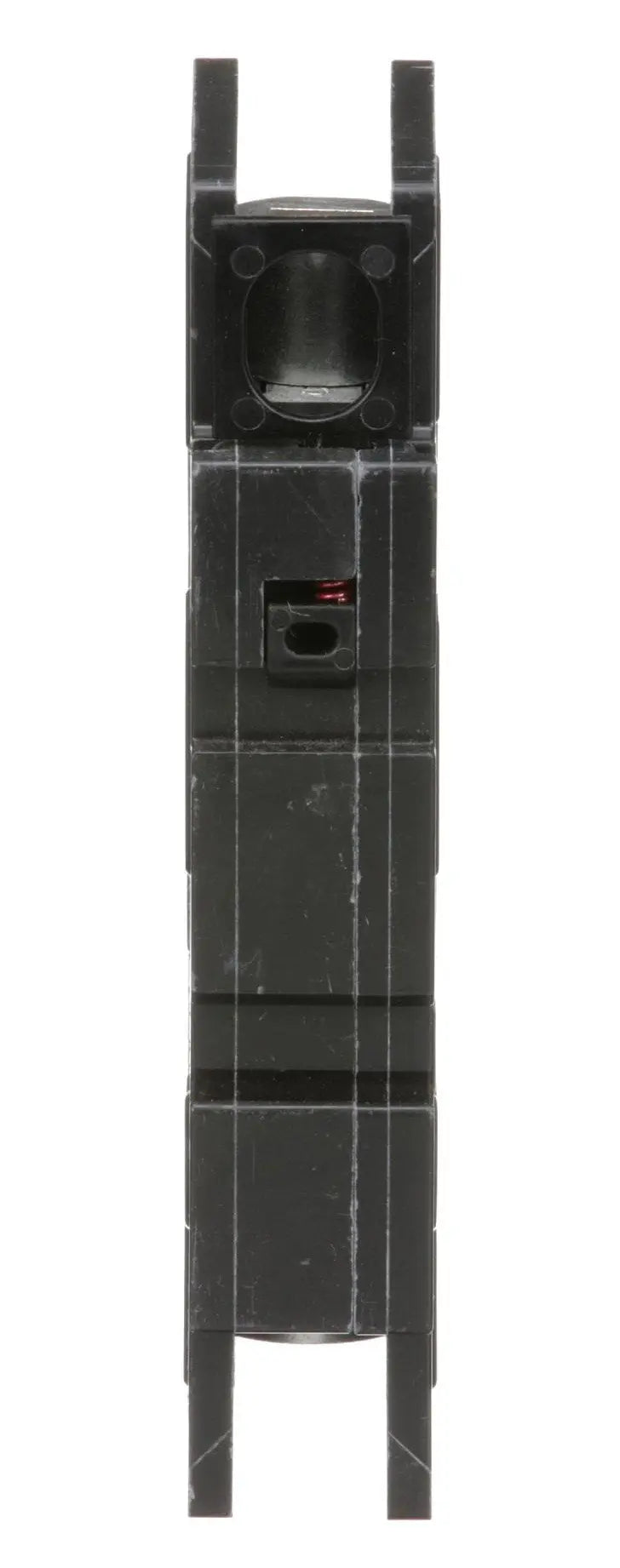

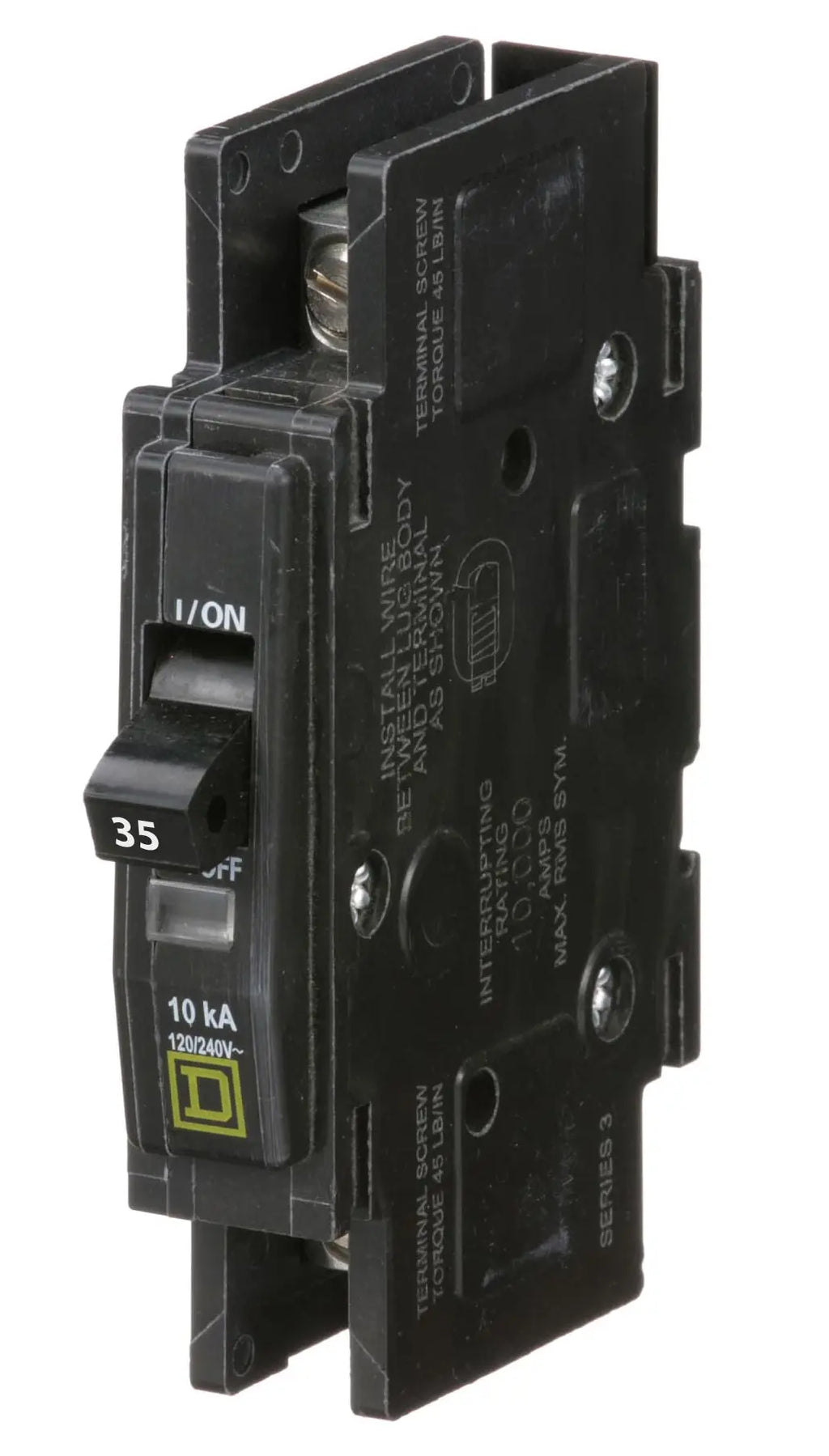

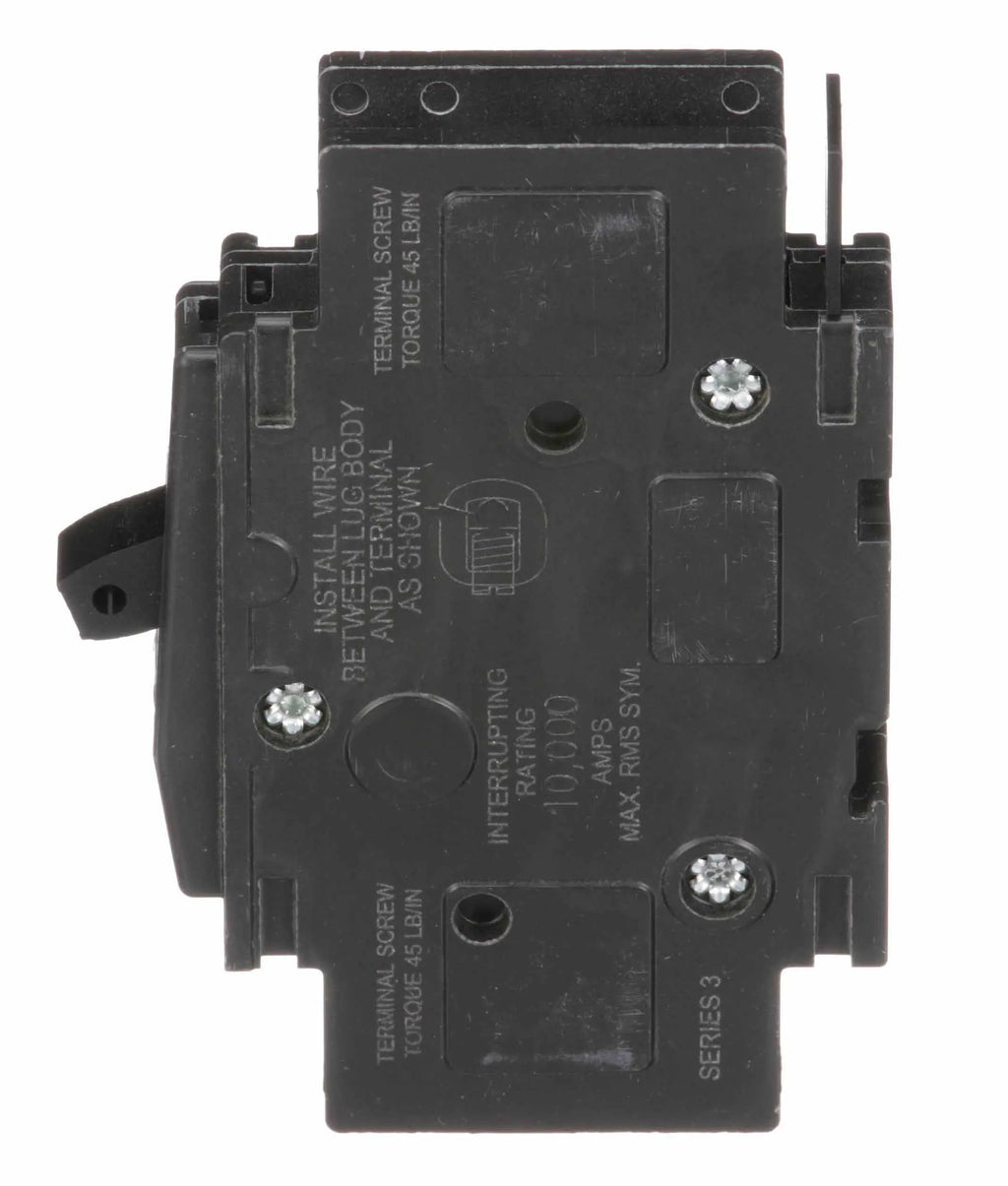

QOU135 - Square D 35 Amp 1 Pole Miniature Circuit Breaker 120/240 VAC 10kA Panel Mount

QOU135

QOU135 is a Square D 35 Amp, 1 Pole miniature circuit breaker designed for panel mounting and rated for 120/240 VAC operation with a 10kA interrupt rating.This thermal magnetic molded case circuit breaker features a 35 Amp current rating, 1 pole configuration, and is suitable for use with 14-2 AWG wire sizes. It has lug-type terminal connections on both line and load sides and complies with UL, CSA, IEC, and RoHS standards. The breaker is ideal for protecting air conditioning, refrigeration, and heating equipment circuits.

• Amperage: 35 Amp
• Voltage Rating: 120/240 VAC, 48 VDC
• Number of Poles: 1
• Mounting Type: Panel Mount
• Interrupt Rating: 10,000 A (10kA) at 120 VAC
• Terminal Connection: Box Lugs (Line and Load)
• Wire Size Range: 14 to 2 AWG (Copper/Aluminum)
• Trip Unit: Thermal Magnetic
• Standards: UL Listed, CSA, IEC, RoHS Compliant
• Series/Frame: QOU

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU135
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 120
• Amperage : 135
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Unit Mount
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Slotted Box Lug (Reversible Line and Load)
• Frame Size : 100A/QOU
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 078590148909
• GTIN : 00785901489092
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 0.75 in (19.05 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.36
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC - CSA - UL listed
• Wire Size : AWG 14...AWG 2 aluminium/copper
