Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD600

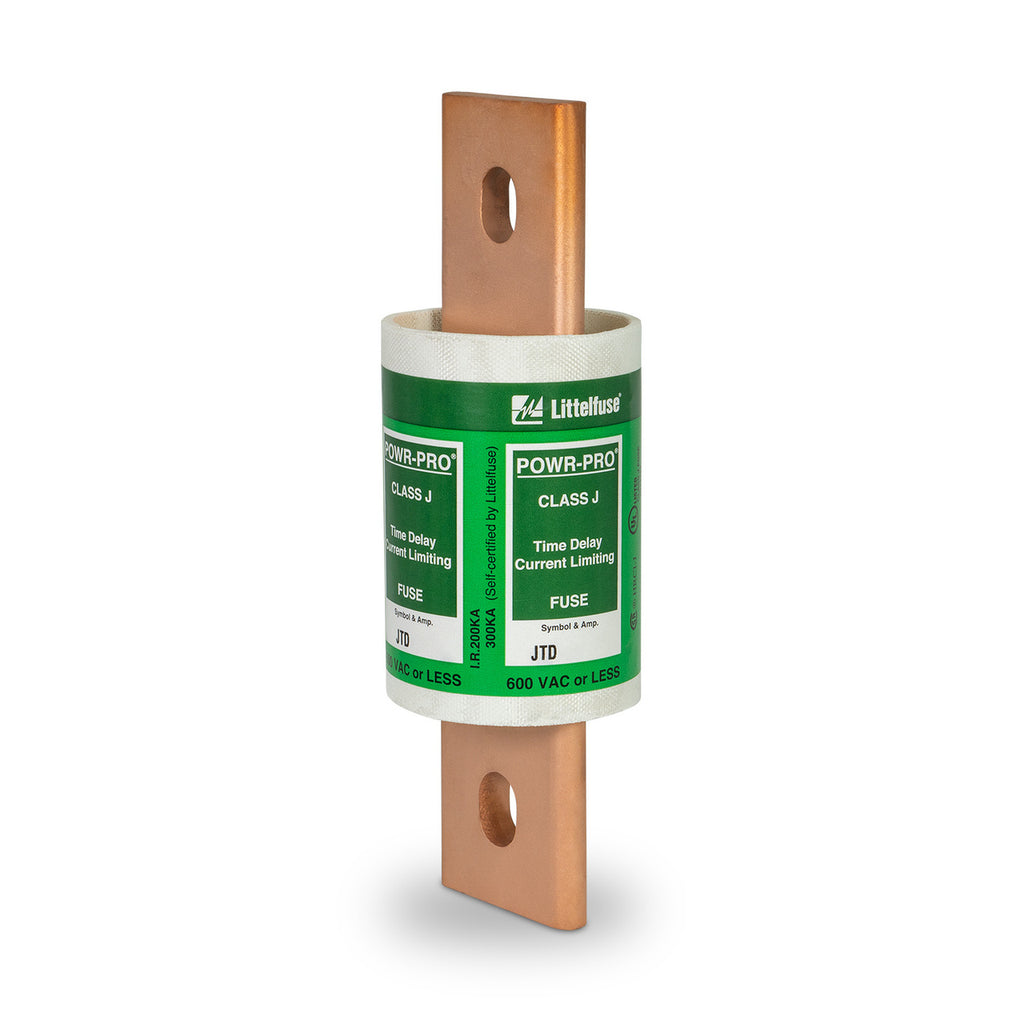

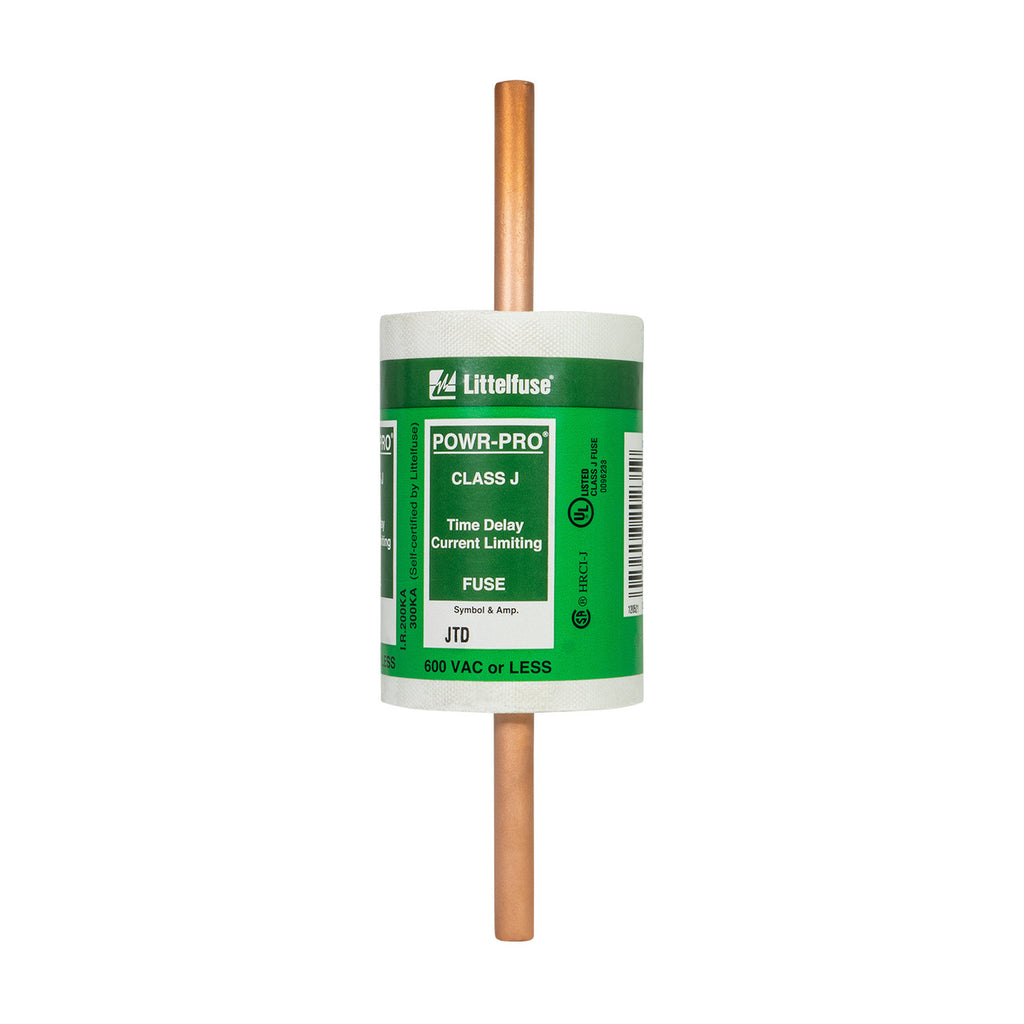

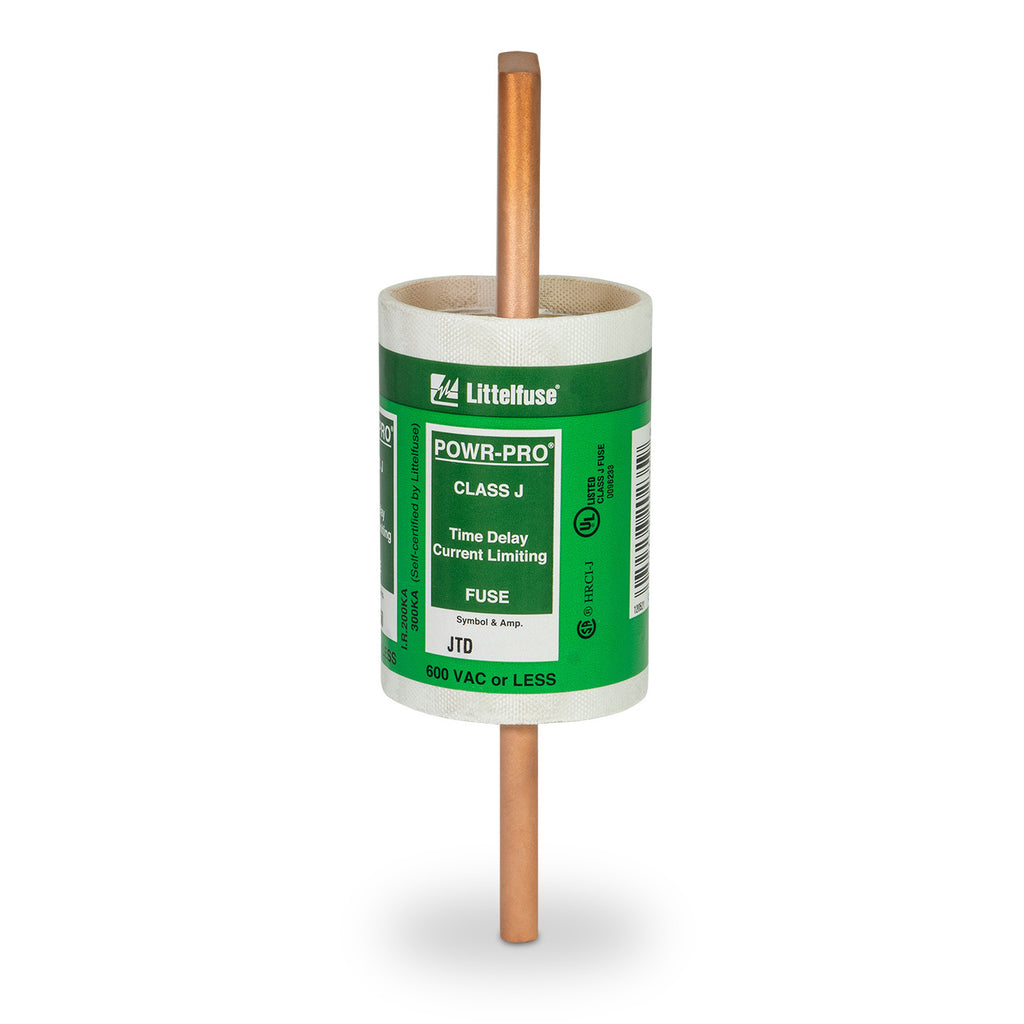

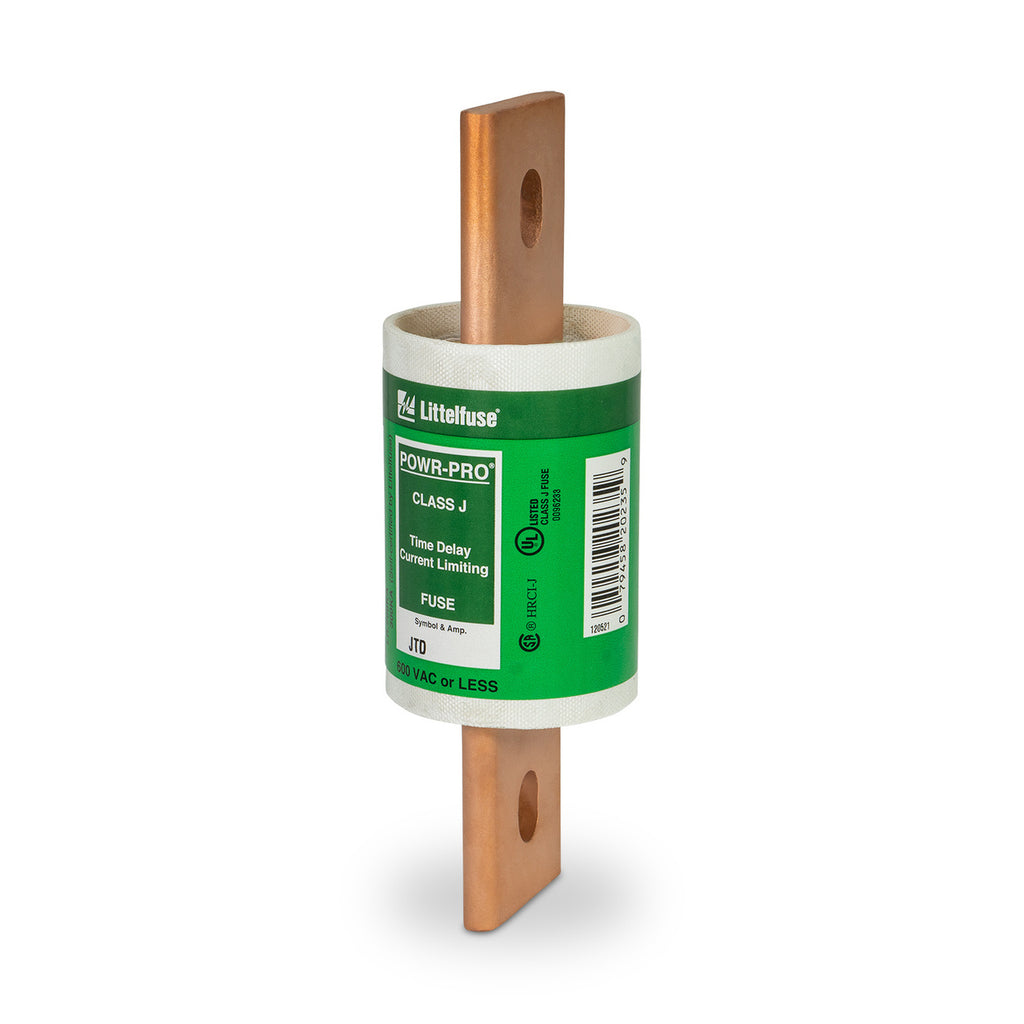

JTD600 is a Class J fuse with a 600 ampere continuous rating and knife-blade-style construction designed for industrial power distribution applications. This time-delay fuse features dual-element construction and patented POWR-PRO current-limiting technology to reduce nuisance fuse openings while providing Type 2 No Damage protection for motor circuit components and general purpose circuits. Key Specifications
- Amperage Rating: 600 Amps
- Voltage Rating: 600 VAC, 500 VDC
- Fuse Class: UL Class J
- Response Time: Slo-Blo/Time Delay
- Mounting Type: Knife-Blade
- Interrupting Rating: 200 kA @ 600 VAC, 20 kA @ 500 VDC
- Physical Size: 2-1/2 inch x 8 inch
- Body Material: Melamine
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), CE Approved
- Applications: Motor control centers, fused combination motor controllers, transformers, series-rated circuit breaker panels
Specifications
- Part Number: JTD600
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JTD Series - UL Class J Time-Delay Fuses
- Type : JTD Series - UL Class J Time-Delay Fuses
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458202373
- GTIN : 00079458202373
- Country of Origin : Mexico
- Dimensions : x 8 in x
- Weight : 3.22
- Certification : CE, UL 248-8 Class J, UL Listed, CSA Certified
