Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Littelfuse
- Sub-Category
- Low Voltage Fuse
- UPC
- 079458025910
- Weight
- 0.15
Product description & additional details
JTD-040

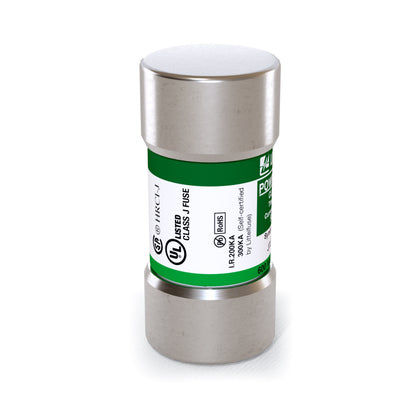

JTD-040 is a Littelfuse Class J time-delay, dual-element cartridge fuse designed for reliable circuit protection in high inrush current applications.
This fuse features a 40 amp continuous rating, 600V AC voltage rating, and a robust interrupting capacity of 200,000 amps AC RMS symmetrical. Its compact, cylindrical body (1-1/16" diameter x 2-3/8" length) is ideal for installations where space is limited. The JTD-040 utilizes advanced dual-element technology to minimize nuisance openings and provide Type 2 "No Damage" protection for motor circuits. It is constructed with a melamine body, nickel-plated bronze end caps, and granular quartz filler for enhanced performance and safety.
-
Key Specifications
- Amperage: 40A
- Voltage: 600V AC, 300V DC
- Poles: 1
- Mounting Type: Cartridge
- Interrupt Rating: 200,000A AC RMS symmetrical, 20,000A DC
- Series/Frame: JTD Series, Class J
- Trip Unit: Time-delay, dual-element
- Certifications: UL 248-8, CSA, CE (select models)
- Body Material: Melamine
- End Caps: Nickel-plated bronze
- Filler: Stone sand and granular quartz
- Dimensions: 1-1/16" dia. x 2-3/8" L
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JTD-040
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 079458025910
- Weight : 0.15
