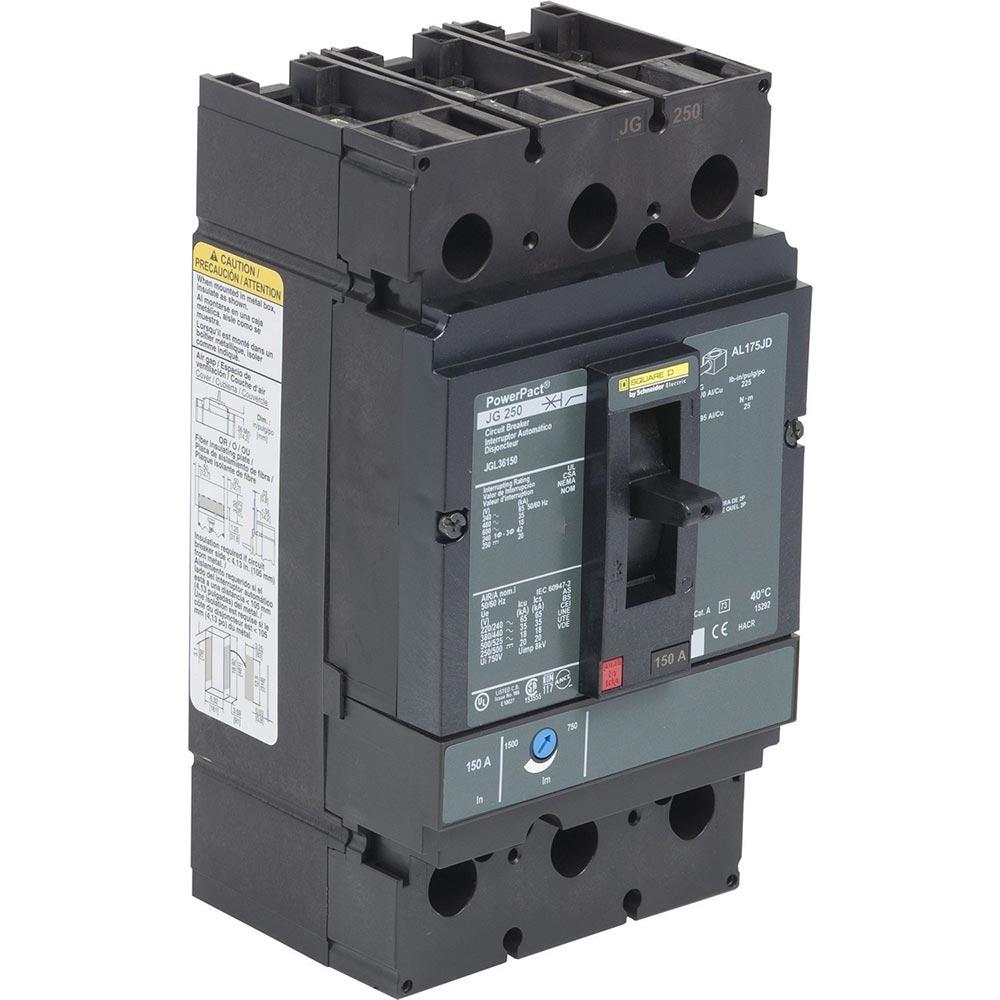

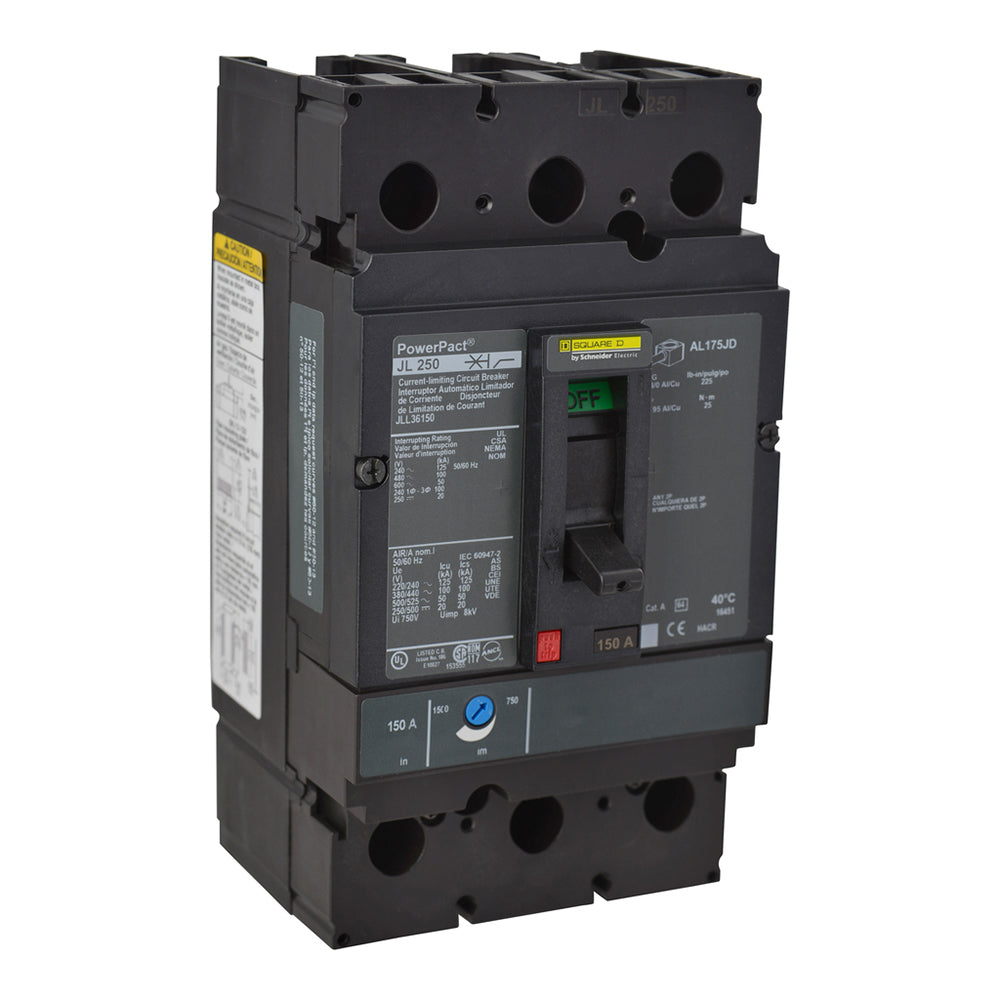

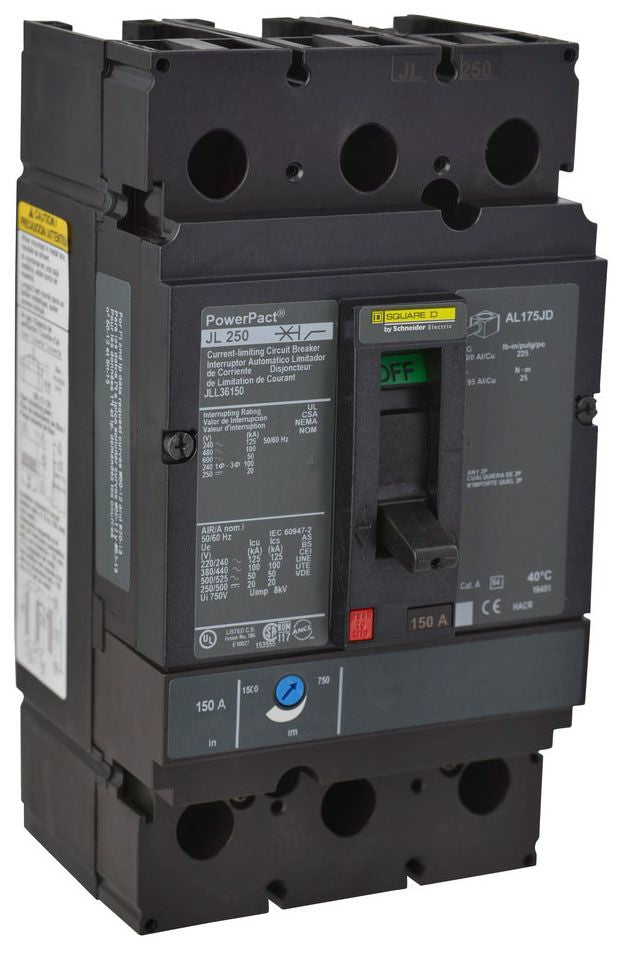

JLL36150 - Square D 150 Amp 600 Volt 3 Pole Molded Case Circuit Breaker J Frame

JLL36150

JLL36150 is a 150 Amp, 600 Volt, 3 Pole molded case circuit breaker from Square D designed for reliable circuit protection.This Square D JLL36150 circuit breaker features a thermal magnetic trip unit with current limiting and adjustable type characteristics. It is a bolt-on mounted breaker with a J frame type, suitable for industrial and commercial applications. The breaker has a 20 kA interrupt rating at 600 VAC and is UL and CSA certified for safety and performance.

• Amperage: 150 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: JLL (J Frame)
• Mounting Type: Bolt On
• Interrupt Rating: 20 kA at 600 VAC
• Trip Unit: Thermal Magnetic, Current Limiting, Adjustable
• Certifications: UL, CSA
• Dimensions: 4.09" W x 3.39" D x 7.52" H
• Manufacturer: Square D (Schneider Electric)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLL36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901598756
• GTIN : 00785901598756
• Country of Origin : United States

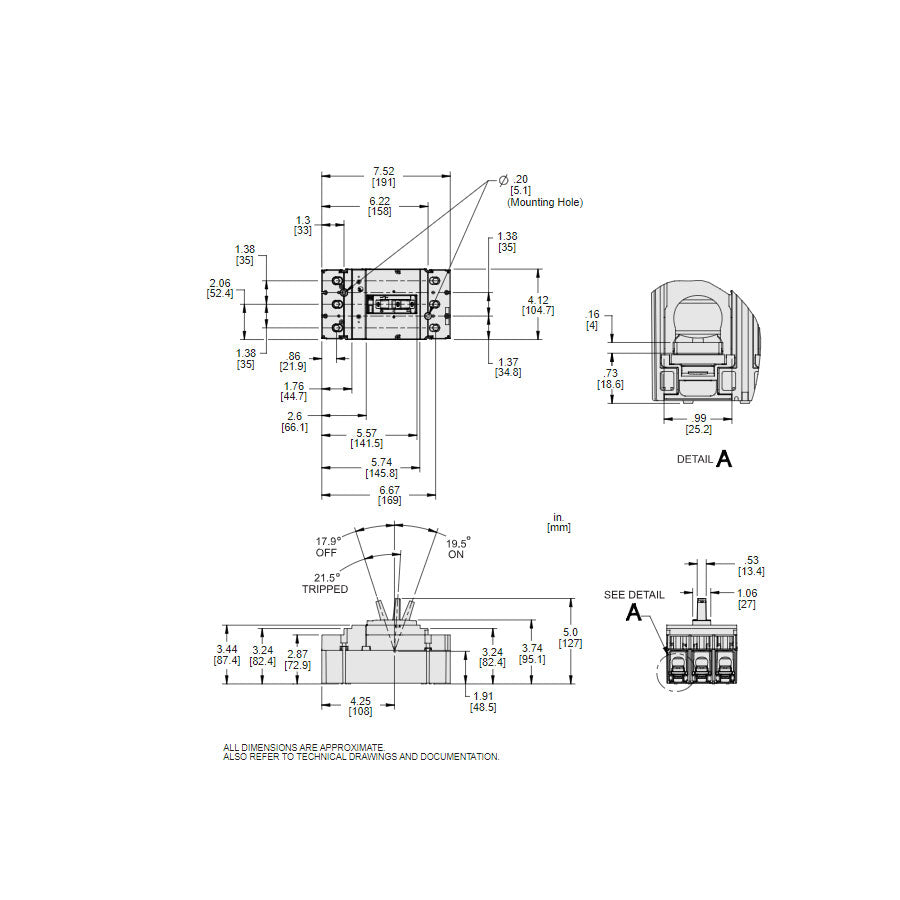

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
