JLL36175 - Square D 175 Amp 600V 3 Pole Thermal Magnetic Circuit Breaker J Frame

JLL36175

JLL36175 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 175 Amps and 600 Volts. It features a J Frame design with unit mounting and feed-thru connection type.JLL36175 provides reliable overcurrent protection with an interrupting rating of 125kA at 240VAC, 100kA at 480VAC, and 50kA at 600VAC. It includes long-time and instantaneous trip functions and is UL 489, CSA, IEC, CCC, and CE certified.

• Manufacturer: Square D
• Part Number: JLL36175
• Amperage: 175 Amp
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3
• Frame Type: J Frame
• Mounting Type: Unit Mount
• Interrupt Rating: 125kA@240V, 100kA@480V, 50kA@600V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Connection Type: Feed-Thru
• Certifications: UL 489, CSA, IEC, CCC, CE

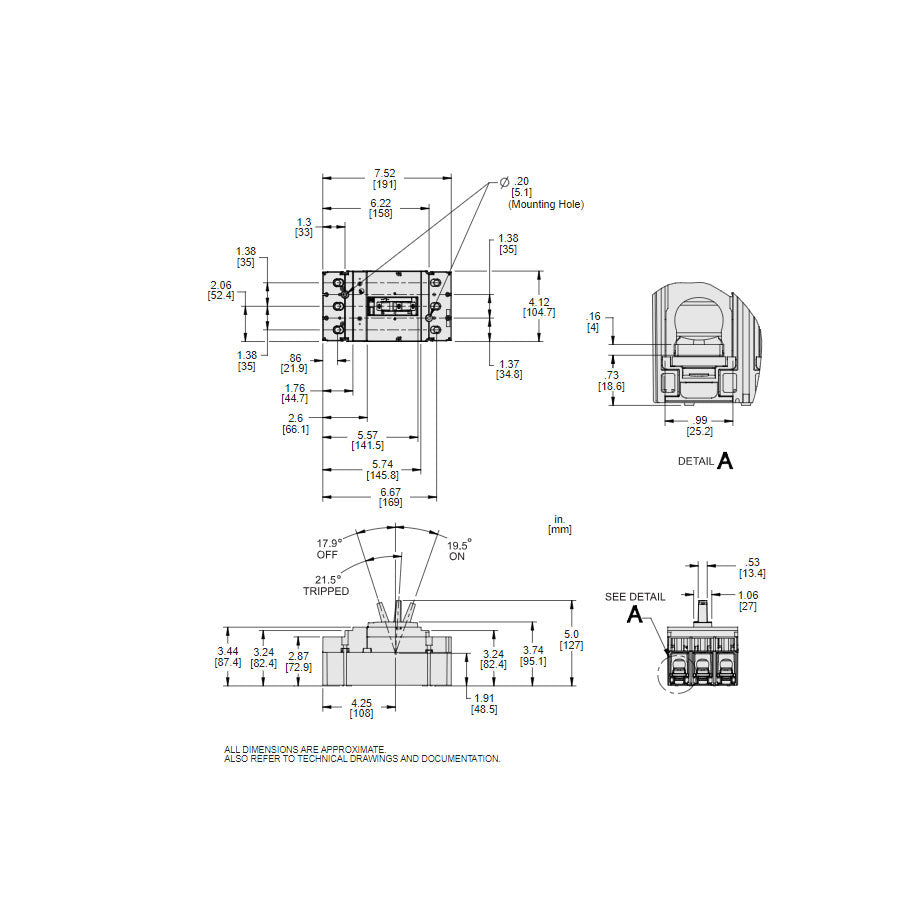

• Dimensions (HxWxD): 7.52 x 4.12 x 5 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLL36175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLL
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901883838
• GTIN : 00785901883838
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.905
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
