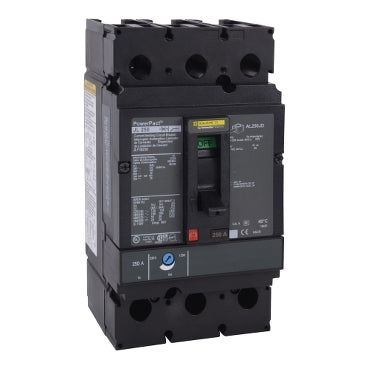

JLF36200 - Square D Powerpact J-Frame 3 Pole 200A 600V Molded Case Circuit Breaker

JLF36200

JLF36200 is a Square D Powerpact J-Frame molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This 3-pole, 200 amp, 600 volt circuit breaker features a thermal magnetic trip unit for overload and short-circuit protection, making it suitable for a wide range of applications. The JLF36200 is built with a robust J-Frame construction and offers a high interrupting capacity, ensuring dependable performance under demanding conditions. It is designed for unit mount installation and features line and load side lug terminals for easy connection. The breaker is UL listed and suitable for use in systems requiring 600V maximum voltage.

• Part Number: JLF36200
• Manufacturer: Square D
• Series: Powerpact J-Frame
• Poles: 3
• Amperage: 200A
• Voltage: 600V
• Mounting Type: Unit Mount
• Interrupt Rating: 125kA
• Trip Unit: Thermal Magnetic
• Protection: Overload and Short-Circuit
• Terminal Type: Lug
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLF36200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLF
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• GTIN : 03606482046283
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
