JJP36200 - Square D PowerPacT J-Frame 200 Amp 600V 3-Pole Molded Case Circuit Breaker, Thermal Magnetic Trip, Unit Mount, 25kA Interrupt, UL 489 Listed

JJP36200

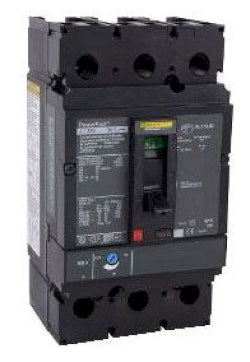

JJP36200 is a Square D PowerPacT J-Frame molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This thermal magnetic, current-limiting circuit breaker features a 200 Amp rating, 600V AC maximum voltage, and is available in a 3-pole configuration with unit mounting. It is UL 489 listed and offers robust interrupting capacity for demanding electrical systems.

Key Specifications
• Part Number: JJP36200
• Manufacturer: Square D
• Amperage: 200A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Unit mount
• Interrupt Rating: 25kA at 600V AC, 65kA at 480V AC, 100kA at 240V AC
• Series/Frame: PowerPacT J-Frame
• Trip Unit: Thermal magnetic, current limiting, adjustable
• Certifications: UL 489, CSA, RoHS, CE, CCC, NMX, Federal Spec W-C-375B/GEN, IEC 60947-2, NEMA AB1
• Dimensions: 4.09" W x 3.39" D x 7.52" H
• Application: Suitable for construction, commercial buildings, industrial, marine, healthcare, data centers, and more

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJP36200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJP
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901660941
• GTIN : 00785901660941
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.817
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
