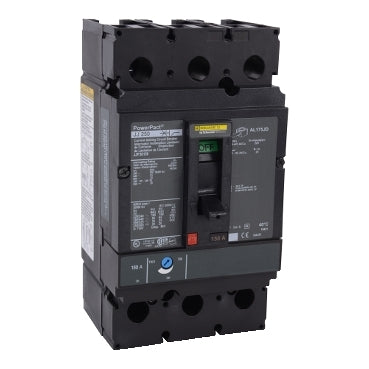

JJP36150 - Square D 150 Amp 3-Pole PowerPact J Molded Case Circuit Breaker 600V 25kA

JJP36150

JJP36150 is a Square D 150 Amp 3-pole PowerPact J molded case circuit breaker designed for reliable circuit protection.This circuit breaker features a 150 ampere rating, 3 poles, and is rated for 600 volts AC. It has a 25kA interrupt rating at 600VAC and uses a thermal magnetic trip unit. The breaker is a unit mount type and complies with UL, CSA, NEMA, NOM, and CE standards. It is mercury and PVC free, ensuring environmentally responsible design.

Key Specifications
• Amperage: 150 Amp
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 25 kA at 600 VAC
• Series/Frame: PowerPact J (JJP)
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Certifications: UL, CSA, NEMA, NOM, CE
• Mercury Free
• PVC Free
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JJP36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJP
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 060648740572
• GTIN : 03606487405726
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
