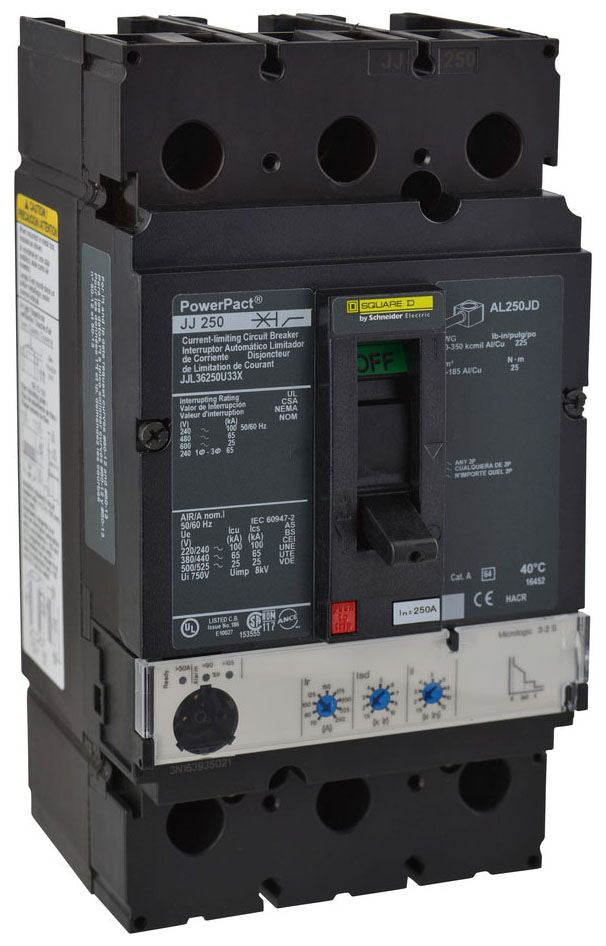

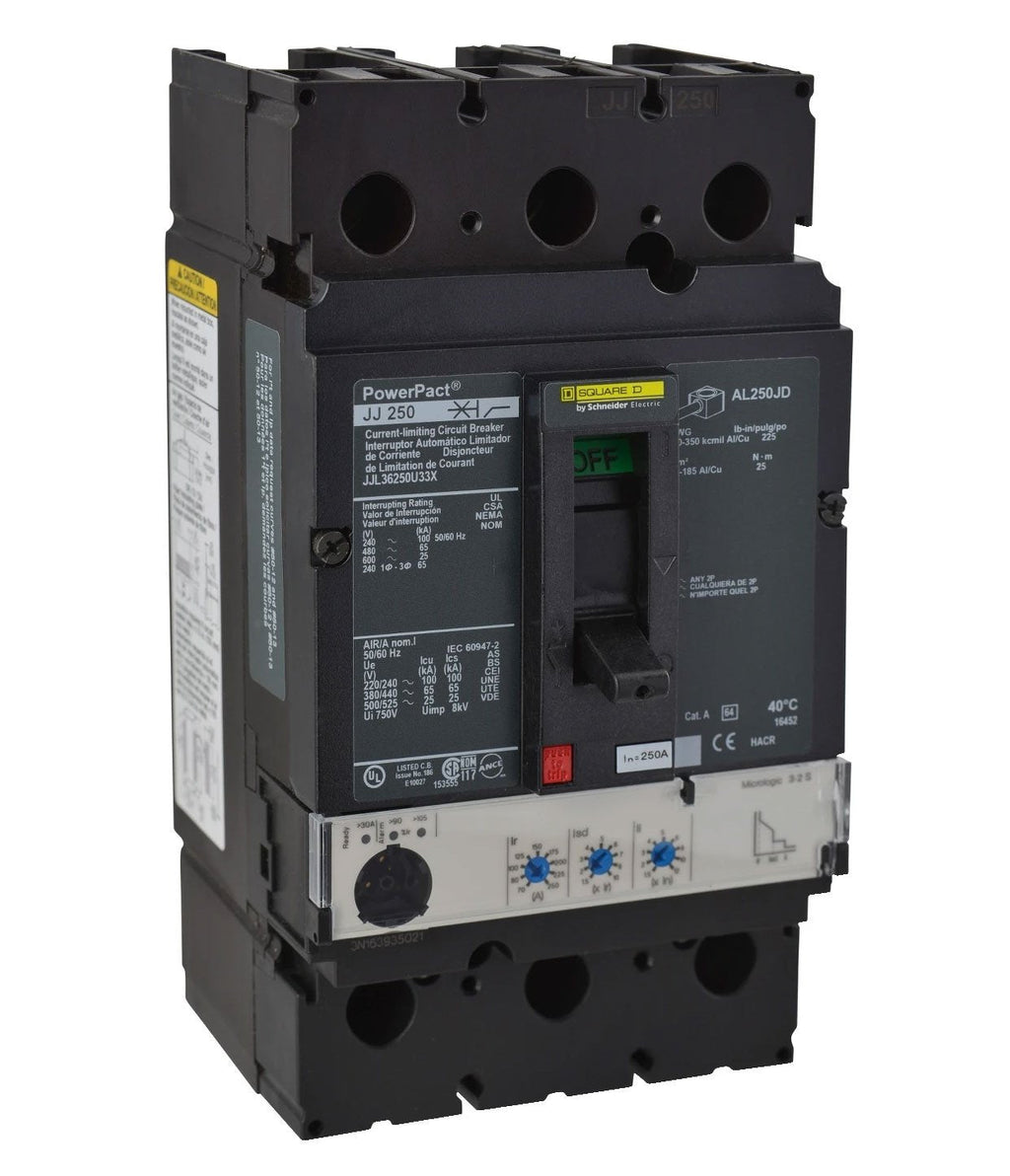

JJL36250U33X - Square D PowerPact J 250A 3 Pole 600V Molded Case Circuit Breaker, Micrologic 3.2S Trip, UL 489, Plug-On Mount, 25kA Interrupt Rating

JJL36250U33X

JJL36250U33X is a Square D PowerPact J series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This 3-pole, 250 amp breaker features a 600VAC rating, electronic Micrologic 3.2S trip unit with Long-Time, Short-Time, and Instantaneous (LSI) protection, and is suitable for plug-on mounting. It is UL 489 listed, current limiting, and offers a 25kA interrupt rating at 600VAC (65kA at 480VAC, 100kA at 240VAC). The unit includes line and load side lug terminals and is reverse feed capable.

Key Specifications
• Part Number: JJL36250U33X
• Manufacturer: Square D (Schneider Electric)
• Amperage: 250A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Plug-On
• Interrupt Rating: 25kA @ 600VAC, 65kA @ 480VAC, 100kA @ 240VAC
• Series/Frame: PowerPact J
• Trip Unit: Micrologic 3.2S, electronic, LSI
• Certifications: UL 489 Listed
• Terminals: Line & load side lugs
• Current Limiting: Yes
• Reverse Feed Capable: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJL36250U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901511762
• GTIN : 00785901511762
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.203
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
