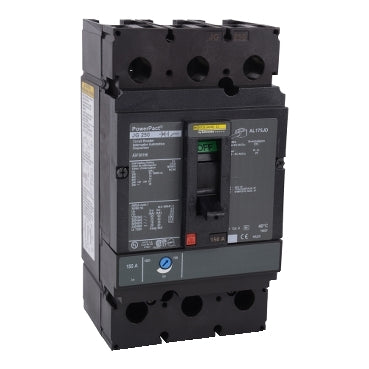

JJF36200 - Square D PowerPact J 3-Pole 200A 600V Circuit Breaker

JJF36200

JJF36200 is a Square D PowerPact J-frame molded case circuit breaker designed for three-pole power distribution applications with thermal magnetic protection and current limiting technology. This breaker delivers reliable overcurrent protection in industrial and commercial electrical systems, featuring adjustable trip settings and a compact design suitable for panelboard and switchboard installations. Key Specifications

• Manufacturer: Square D (Schneider Electric)
• Part Number: JJF36200
• Poles: 3
• Amperage: 200A
• Voltage: 600VAC
• Series: PowerPact J
• Trip Unit: Thermal Magnetic, Current Limiting
• Interrupting Rating: 25kA at 600VAC
• Mounting Type: Plug-On (I-Line compatible)
• Continuous Current Rating: 80%
• Certifications: UL, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJF36200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJF
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 060648204627
• GTIN : 03606482046276
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
