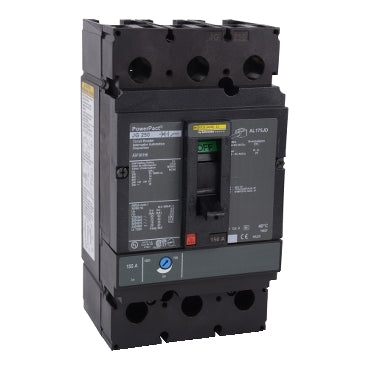

JJF36250 - Square D 250 Amp 3 Pole 600V PowerPact Molded Case Circuit Breaker

JJF36250

JJF36250 is a 250 amp, 3 pole molded case circuit breaker rated for 600 volts AC, designed for industrial power distribution and protection applications.

This Square D PowerPact circuit breaker features thermal magnetic, current limiting operation with adjustable trip settings. The unit mount design provides flexible installation in electrical enclosures and panels. With UL 489 certification, it meets industry standards for safety and performance. The breaker is rated for 250 VDC as well, offering versatility across AC and DC applications.

• Part Number: JJF36250
• Manufacturer: Square D (Schneider Electric)
• Amperage: 250 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3 Pole
• Frame: J Frame
• Mounting: Unit Mount
• Trip Type: Thermal Magnetic, Current Limiting, Adjustable
• Interrupt Rating: 100 kA @ 240 VAC, 65 kA @ 480 VAC, 25 kA @ 600 VAC
• Certification: UL 489 Listed
• Dimensions: 4.09 inches width x 3.39 inches depth x 7.52 inches height

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJF36250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJF
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901047438
• GTIN : 00785901047438
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.83
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
