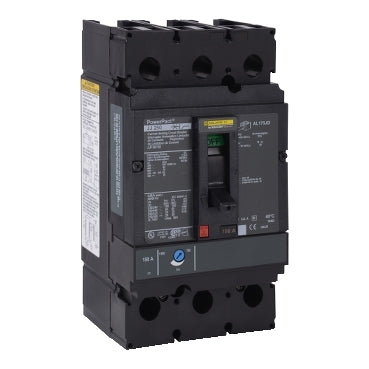

JJF36175 - Square D 175 Amp 600 Volt 3-Pole J Frame Circuit Breaker Thermal Magnetic

JJF36175

JJF36175 is a Square D J Frame molded case circuit breaker designed for reliable protection in electrical distribution systems.

This circuit breaker features a 175 ampere rating with a maximum voltage of 600 VAC and 250 VDC. It has a 3-pole configuration and uses thermal magnetic trip technology for current limiting and adjustable protection. The breaker is designed for bolt-on mounting and complies with UL 489 and CSA certifications. It offers an interrupt rating of up to 65kA at 480V and 25kA at 600VAC busbar, suitable for industrial and commercial applications.

Key Specifications
• Amperage: 175 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame/Series: J Frame
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 65kA @ 480V, 25kA @ 600VAC Busbar
• Mounting Type: Bolt-On
• Certifications: UL 489 Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJF36175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJF
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : J
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901602491
• GTIN : 00785901602491
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
