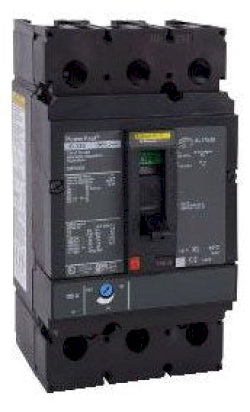

JGP36225 - Square D 225A 600V 3-Pole Molded Case Circuit Breaker J Frame Thermal Magnetic

JGP36225

JGP36225 is a Square D 3-pole molded case circuit breaker with 225 ampere rating and 600 volt AC maximum voltage designed for reliable circuit protection.This thermal magnetic, current limiting, adjustable type breaker features a J Frame series with a 3-pole configuration suitable for unit mounting. It has an interrupt rating of G class, UL 489 listed, and is certified by UL, CSA, and CE. The breaker supports up to 600 VAC and 250 VDC, providing robust protection for industrial and commercial electrical systems.

• Amperage: 225A
• Voltage Rating: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: G Interrupt
• Series/Frame: J Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, CE
• Breaking Capacity: 18kA at 600VAC
• Adjustable Type
• Dimensions: 4.09" W x 3.39" D x 7.52" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGP36225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGP
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901583356
• GTIN : 00785901583356
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.839
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
