Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

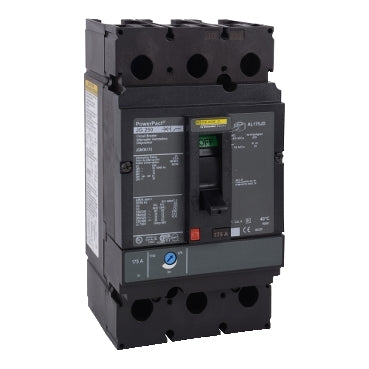

JGM36225
JGM36225 is a Square D Powerpact molded case circuit breaker designed for reliable power distribution protection.This 3-pole breaker is rated for 225 amps and 600 volts AC, featuring a thermal-magnetic trip unit and a 35kA interrupt rating at 480V. It mounts with bolt-on terminals and belongs to the Powerpact J frame series, suitable for industrial and commercial electrical panels.
- Key Specifications
- Amperage: 225A
- Voltage: 600V AC
- Poles: 3
- Interrupt Rating: 35kA @ 480V
- Mounting Type: Bolt-On
- Frame/Series: Powerpact J
- Trip Unit: Thermal-Magnetic
- Terminal Type: Lug
- Operating Temperature: 40°C
- Weight: Approx. 2.4 kg
- Certifications: UL Listed
- Part Number: JGM36225
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JGM
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
- Country of Origin : Mexico
- Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 5.3
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
