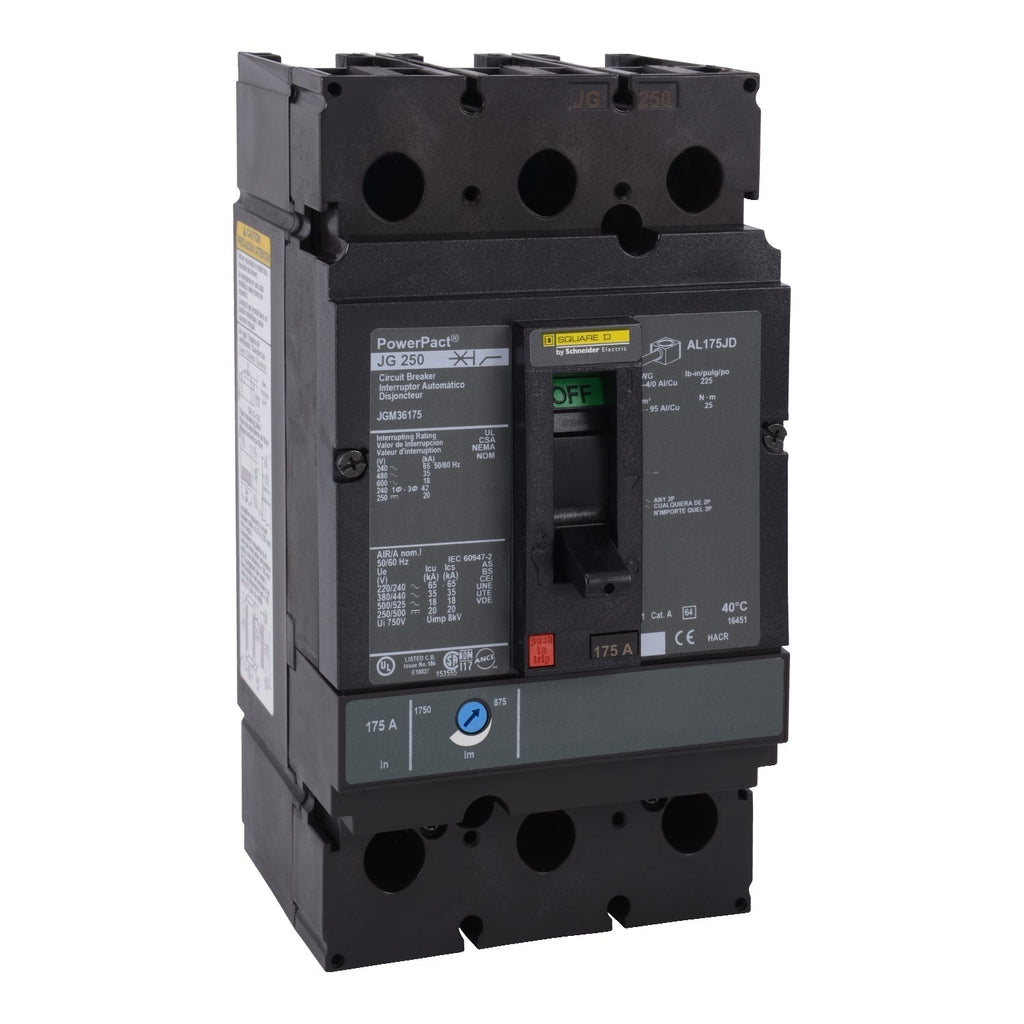

JGM36175 - Square D 175 Amp 600 Volt 3 Pole Bolt-On Circuit Breaker PowerPact J Frame

JGM36175

JGM36175 is a Square D 175 Amp, 600 Volt, 3 Pole Bolt-On Molded Case Circuit Breaker from the PowerPact J Frame series.This circuit breaker features a thermal-magnetic trip unit, unit mount design, and a 35kA interrupt rating at 480V. It is UL 489 listed and suitable for industrial and commercial power distribution applications requiring reliable overload and short circuit protection.

• Amperage: 175 Amp
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3 Pole
• Mounting Type: Bolt-On Unit Mount
• Interrupt Rating: 35kA at 480V, 18kA at 600V
• Frame Type: PowerPact J Frame
• Trip Unit: Thermal-Magnetic
• UL Listed: UL 489
• Manufacturer: Square D (Schneider Electric)
• Application: Molded Case Circuit Breaker for power distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGM36175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGM
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901596814
• Country of Origin : United States

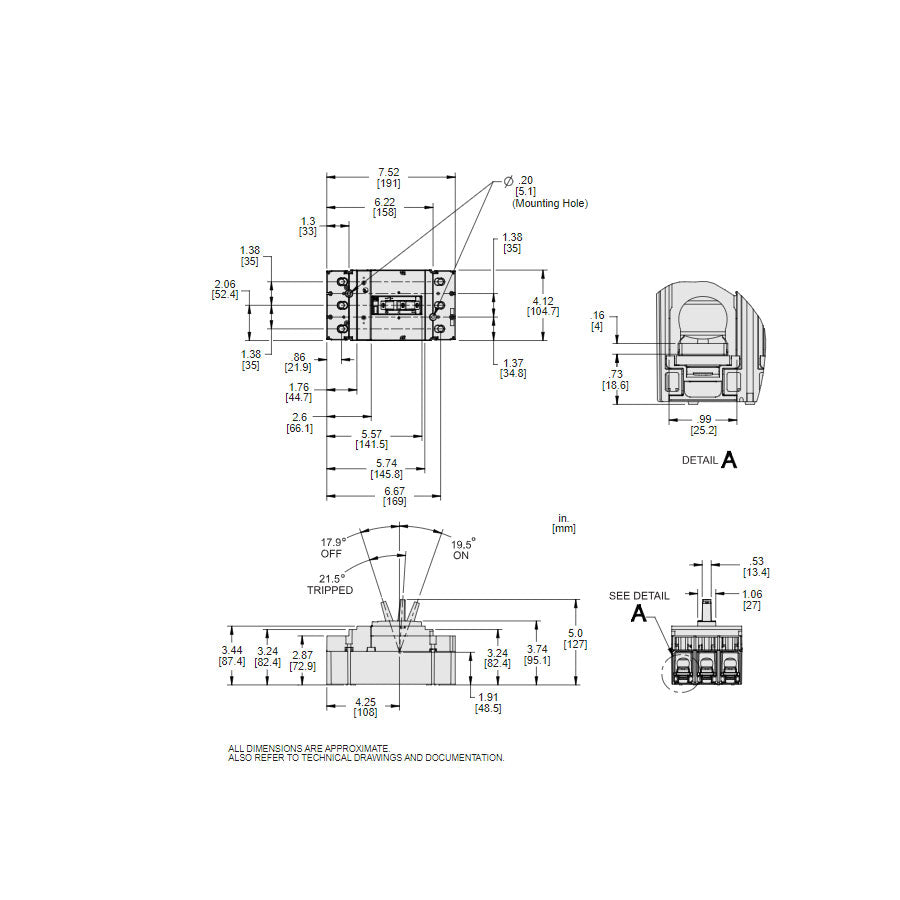

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
