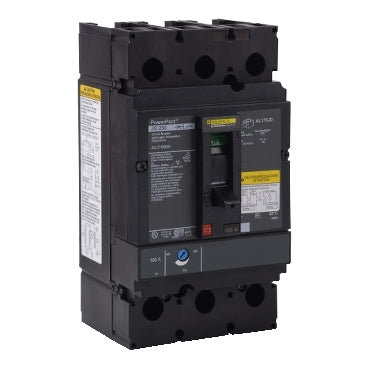

JGL37250D82 - Square D PowerPact J 250A 3-Pole 500VDC Circuit Breaker Thermal Magnetic 20kA

JGL37250D82

JGL37250D82 is a 3-pole, 250 amp, 500VDC thermal magnetic circuit breaker from the Square D PowerPact J series, designed for reliable protection in industrial and commercial power distribution systems.This circuit breaker features a robust molded case construction, feed-thru lugs, and an interrupt rating of 20kA, making it suitable for demanding DC applications. The PowerPact J series offers dependable performance with thermal magnetic trip technology for overload and short-circuit protection.

• Part Number: JGL37250D82
• Manufacturer: Square D
• Series: PowerPact J
• Amperage: 250A
• Voltage: 500VDC
• Poles: 3
• Interrupt Rating: 20kA
• Mounting Type: Feed Thru
• Frame: J
• Trip Unit: Thermal Magnetic
• Application: DC Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL37250D82
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 20kA@500VDC
• Connection : Lug In/Lug Out
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 250A/J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 3/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901496397
• GTIN : 00785901865001
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Panel Type : Free Standing
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
