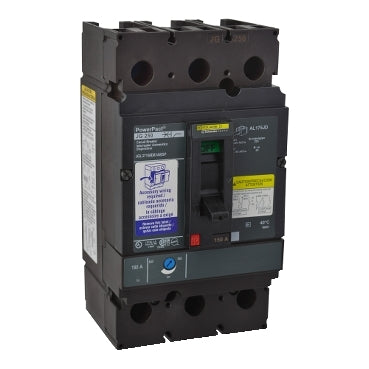

JGL37250D82AAUO - Square D 250A 3 Pole 500VDC PowerPact Molded Case Circuit Breaker

JGL37250D82AAUO

JGL37250D82AAUO is a Square D PowerPact molded case circuit breaker designed for reliable electrical protection.This 3 pole circuit breaker is rated for 250 amps and 500 volts DC, featuring a thermal magnetic trip unit and a 20kA interrupting rating. It includes lug connections and supports 80% continuous current rating. The breaker is part of the PowerPact J series and is suitable for industrial and commercial power distribution applications.

• Amperage: 250A
• Voltage: 500V DC
• Poles: 3
• Interrupt Rating: 20kA
• Series/Frame: PowerPact J
• Trip Unit: Thermal Magnetic
• Mounting Type: Lug
• Continuous Current Rating: 80%
• Auxiliary Switch: Factory installed 1A/1B
• Undervoltage Trip: 24VDC
• Weight: Approximately 2.27 kg
• Certifications: Square D standard industrial certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL37250D82AAUO
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 20kA@500VDC
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901698050
• GTIN : 00785901698050
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
