Description
JGL36175AASO

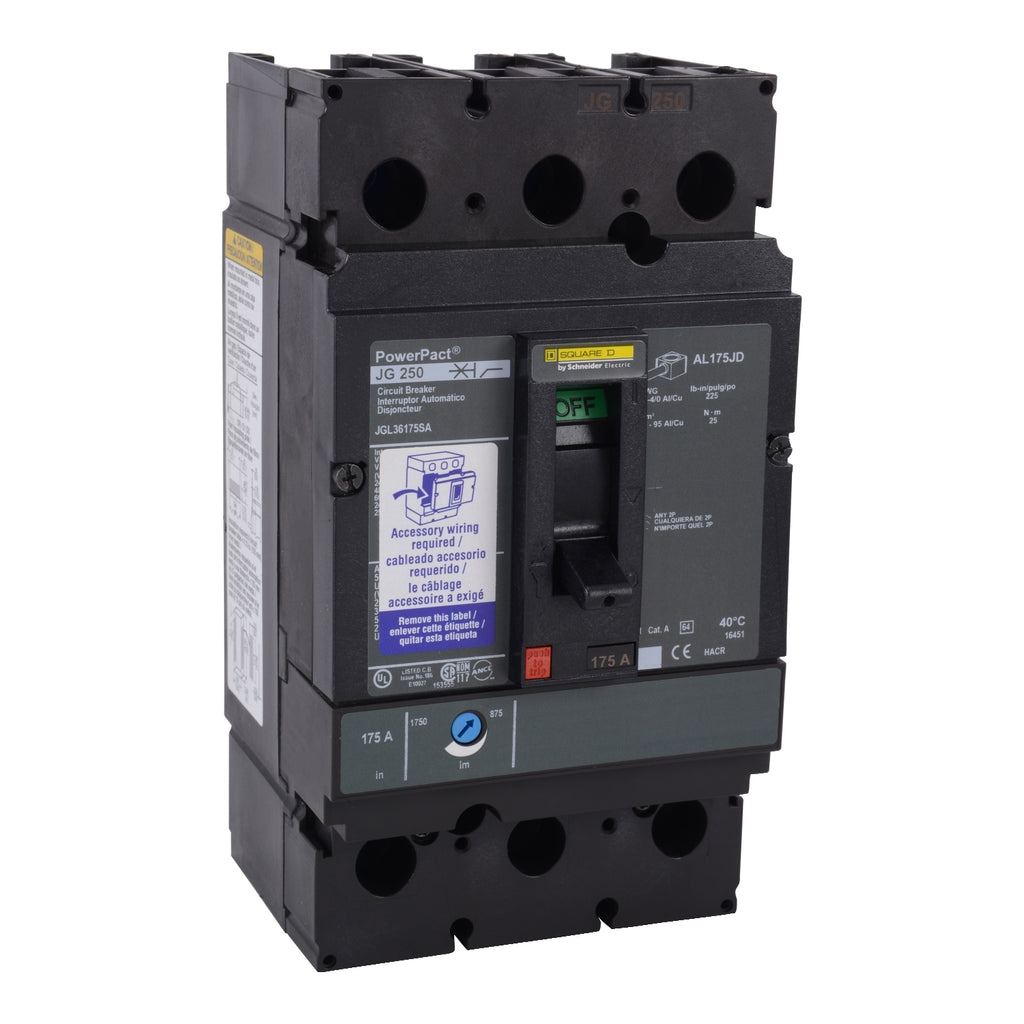

JGL36175AASO is a Square D PowerPact J-Frame molded case circuit breaker designed for industrial and commercial power distribution applications. This 175-amp, 3-pole unit operates at 600 volts AC and features thermal-magnetic trip technology with current-limiting capability. The breaker is UL 489 listed and suitable for unit-mount installation with line and load side lug terminals, making it ideal for reverse-fed applications and feed-thru configurations.
- Amperage: 175 Amp
- Voltage: 600 VAC
- Poles: 3-Pole
- Frame Type: J-Frame
- Interrupt Rating: 65 kA at 240V, 35 kA at 480V, 18 kA at 600V
- Trip Unit: Thermal-Magnetic with Long-Time and Instantaneous functions
- Mounting: Unit-Mount
- Connection: Lug line and load terminals
- Features: Current-limiting, non-interchangeable trip, suitable for reverse-fed applications
- Certification: UL 489 Listed
- Dimensions: 7.52 inches height x 4.12 inches width x 5 inches depth
Additional Information
complete with factory installed 1A/1B auxiliary switch and 24Vdc shunt trip
Specifications
- Part Number: JGL36175AASO
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JGL
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- Country of Origin : United States
- Weight : 5
