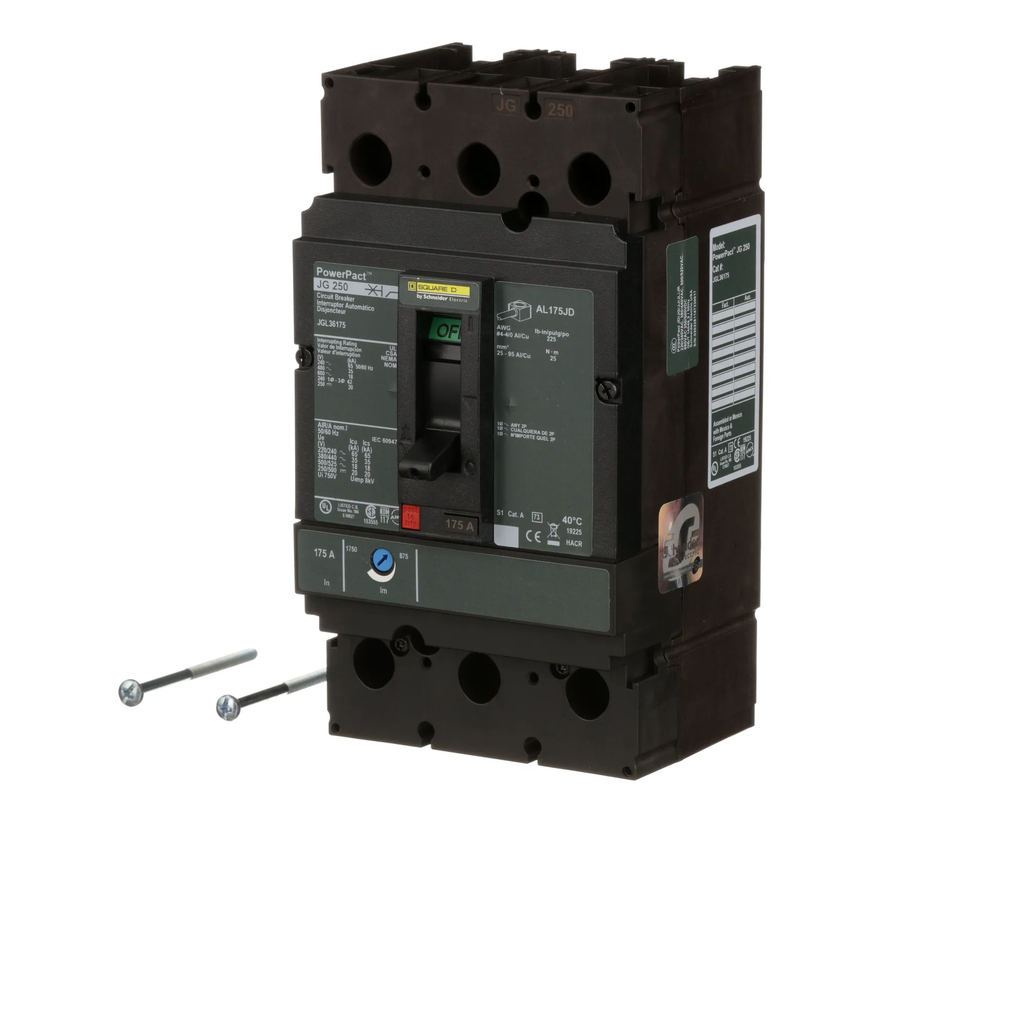

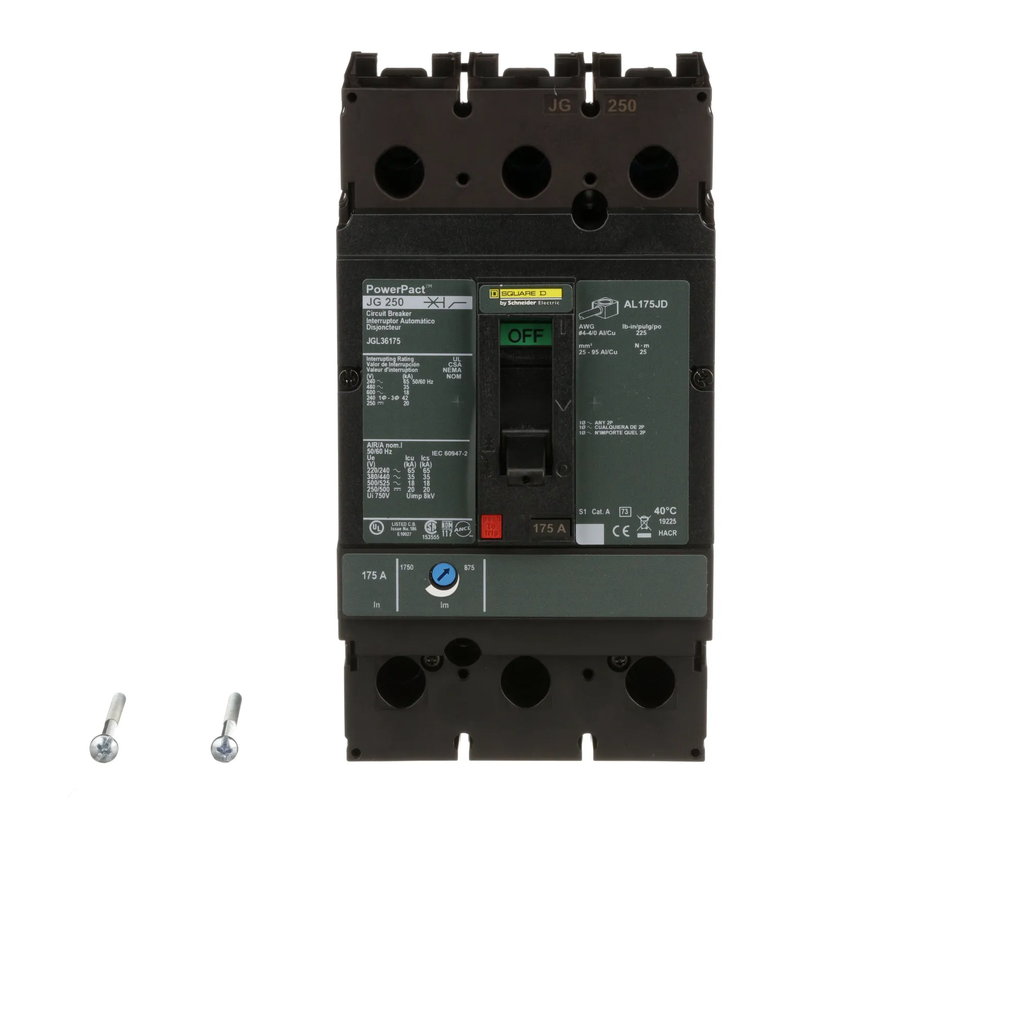

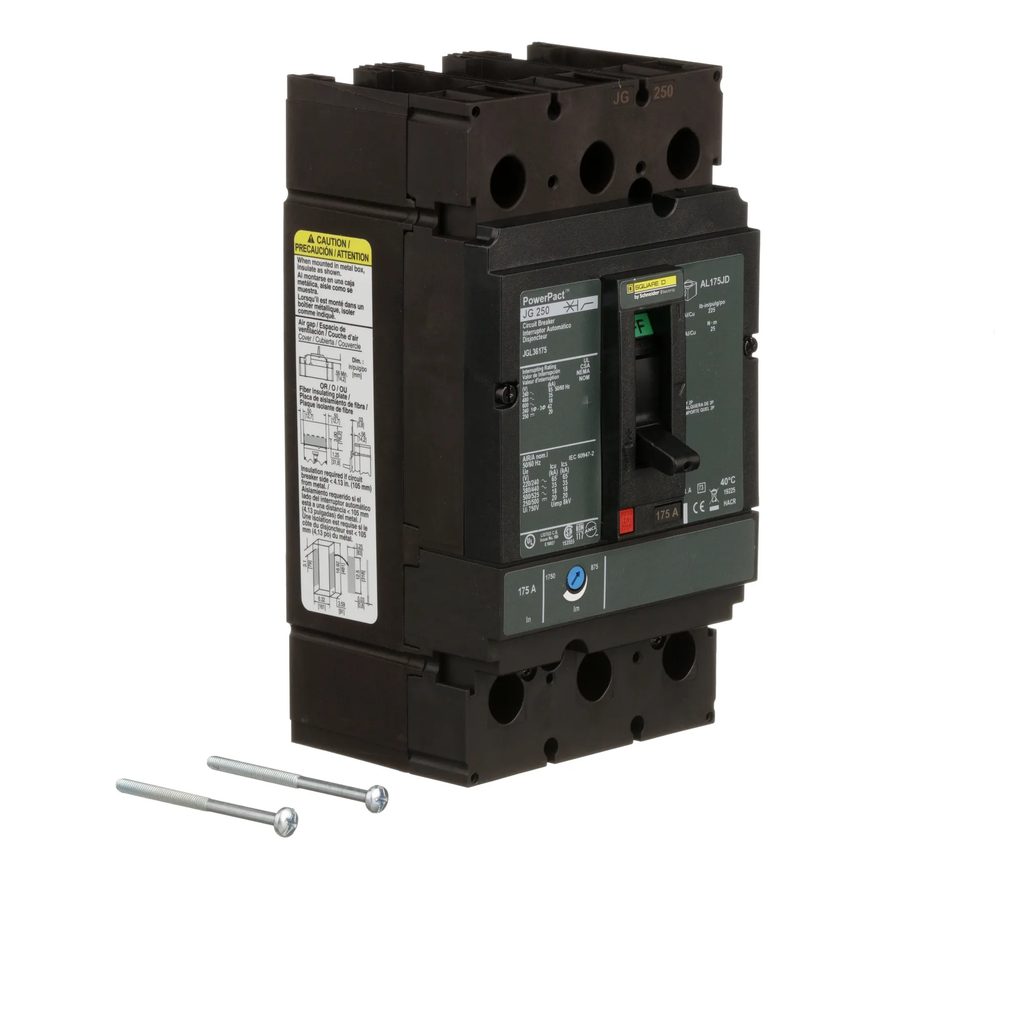

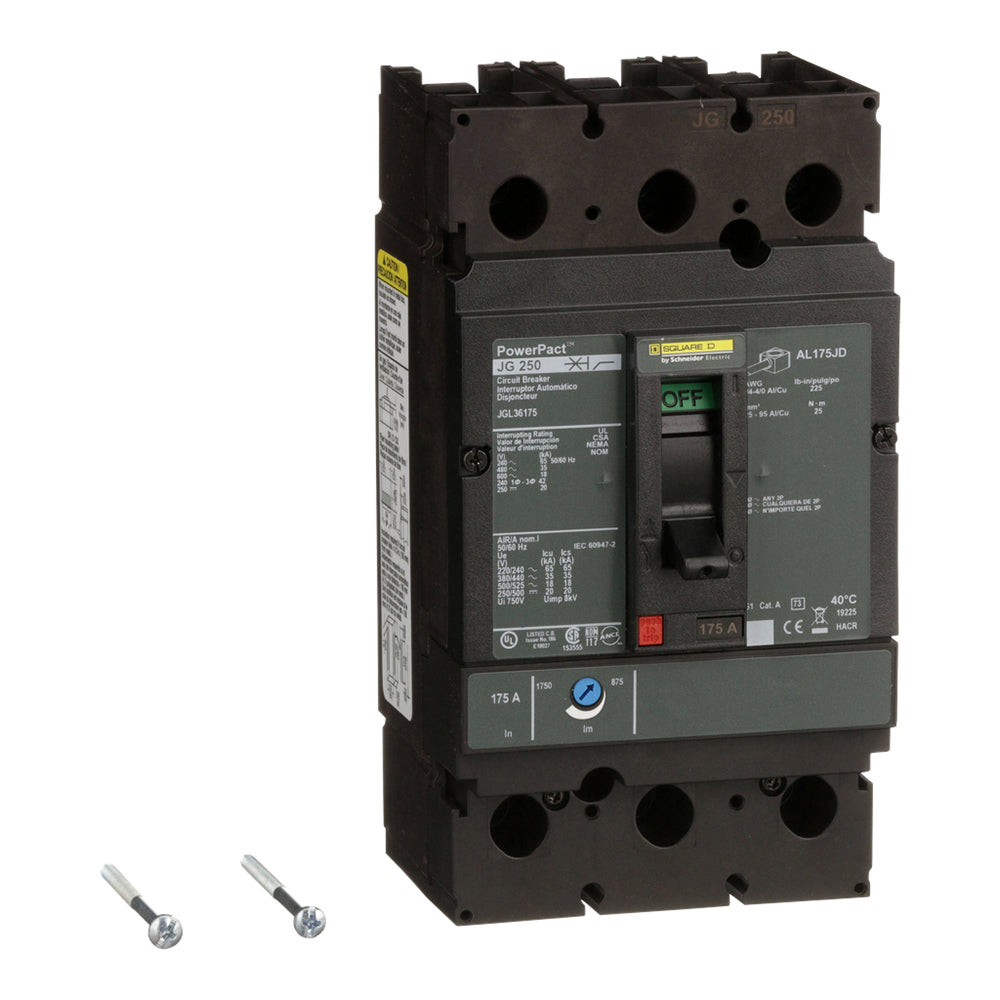

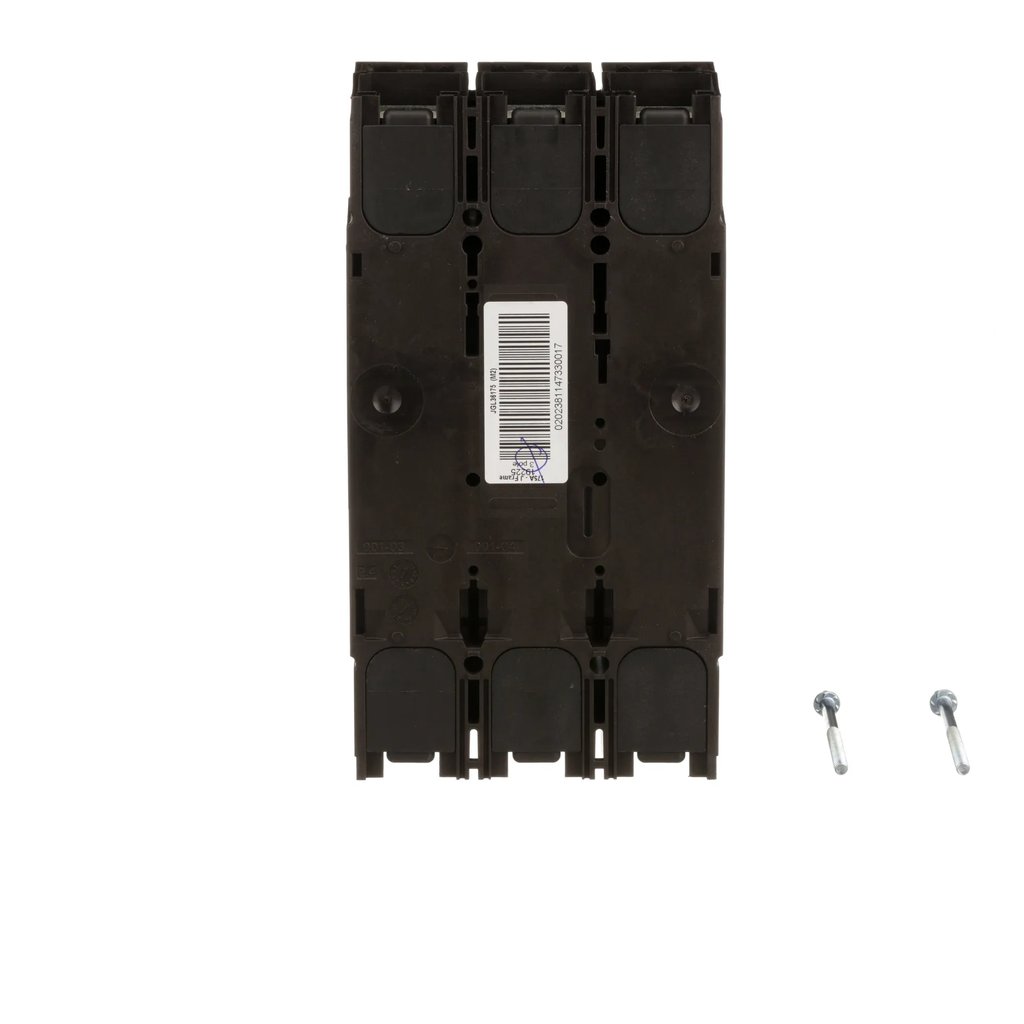

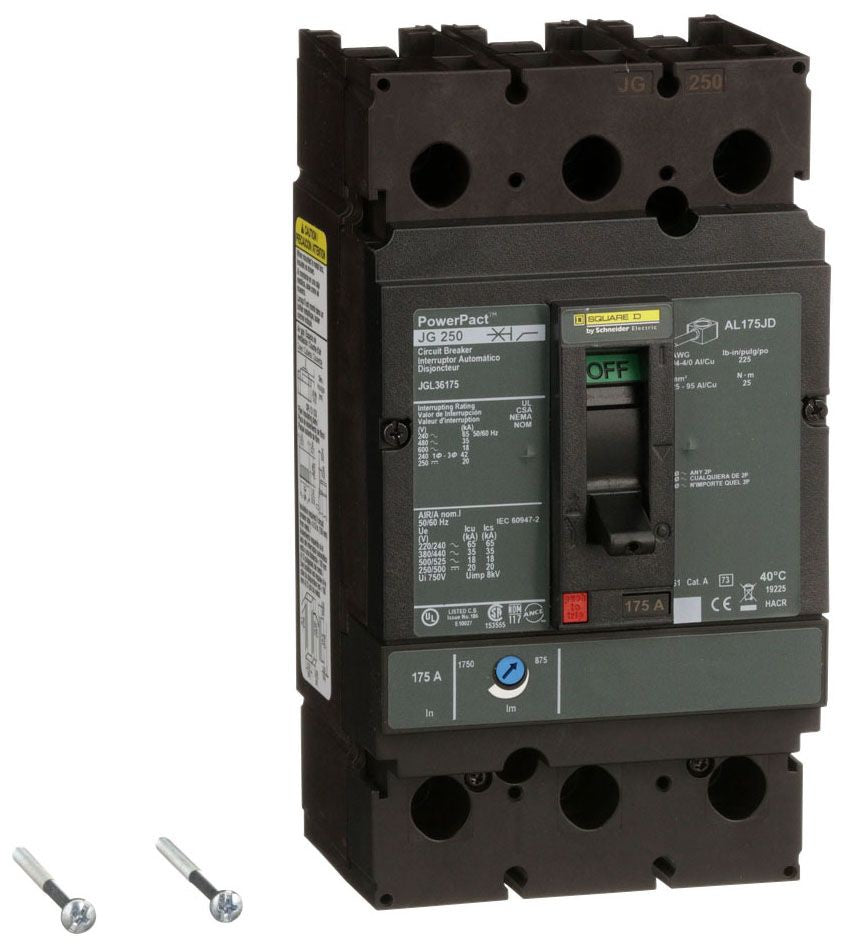

JGL36175 - Square D Powerpact J-Frame Molded Case Circuit Breaker 175A 600V 3 Pole Thermal Magnetic

JGL36175

JGL36175 is a Square D Powerpact J-Frame molded case circuit breaker providing reliable overload and short-circuit protection.This 3 pole, 175 amp, 600 volt breaker features a thermal-magnetic trip unit and is UL 489 listed for industrial applications.

• Amperage: 175 A
• Voltage Rating: 600 VAC / 500 VDC
• Number of Poles: 3
• Frame Type: J-Frame
• Trip Unit Technology: Thermal-magnetic
• Interrupting Capacity: 35 kA at 480 V AC, 18 kA at 600 V AC
• Mounting Type: Unit Mount (Feed-Thru)
• Connection Type: Lug line and load terminals
• Continuous Current Rating: 80%
• Certifications: UL 489, CSA, CE, NOM, IEC, UKCA

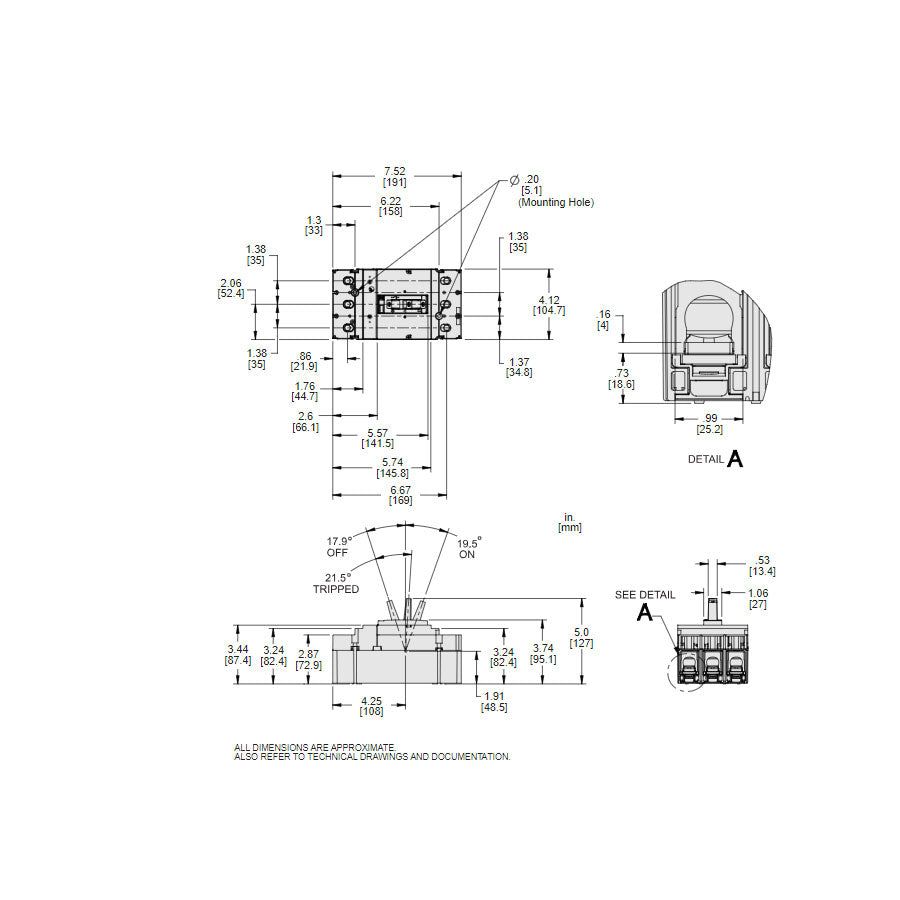

• Dimensions (HxWxD): 7.52 x 4.12 x 5 inches
• Magnetic Hold Current: 875 A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3 AWG Max. Wire Size 350 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901883746
• GTIN : 00785901883746
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.81
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
