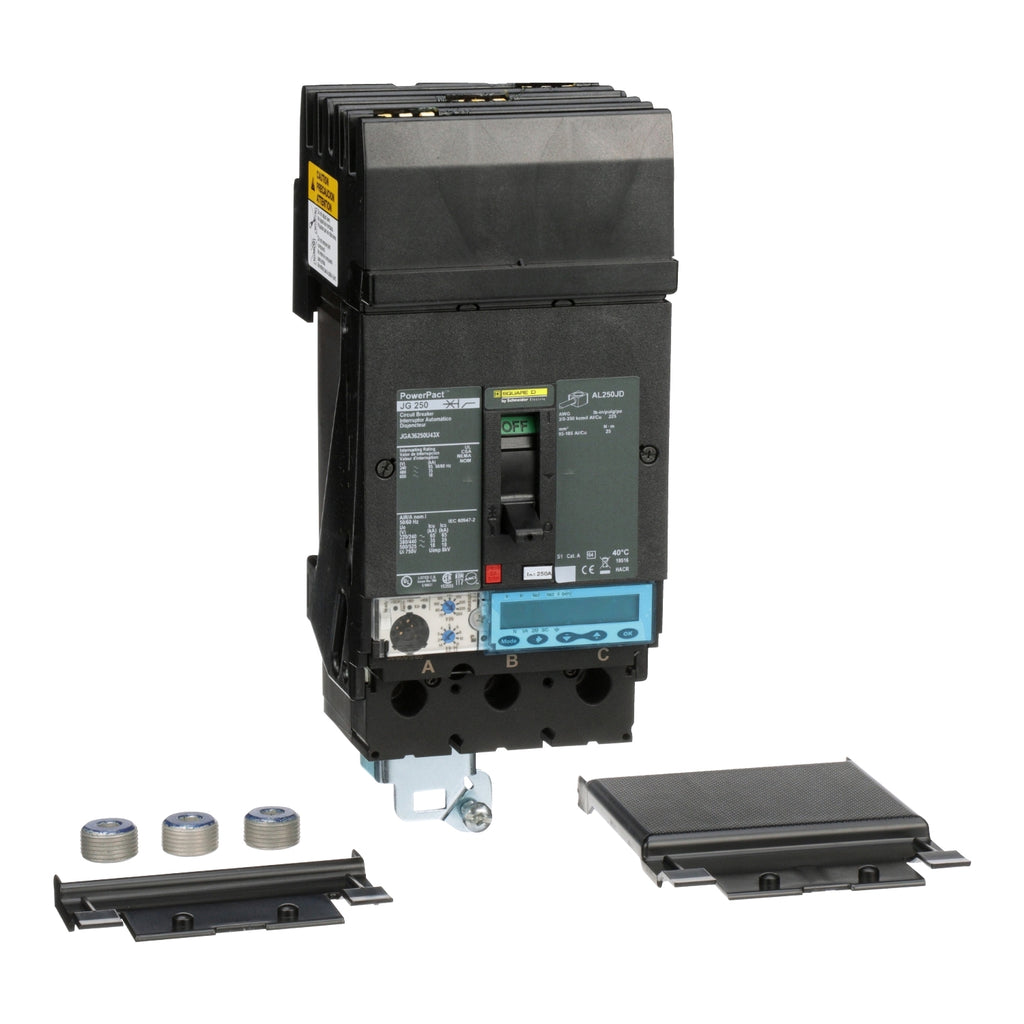

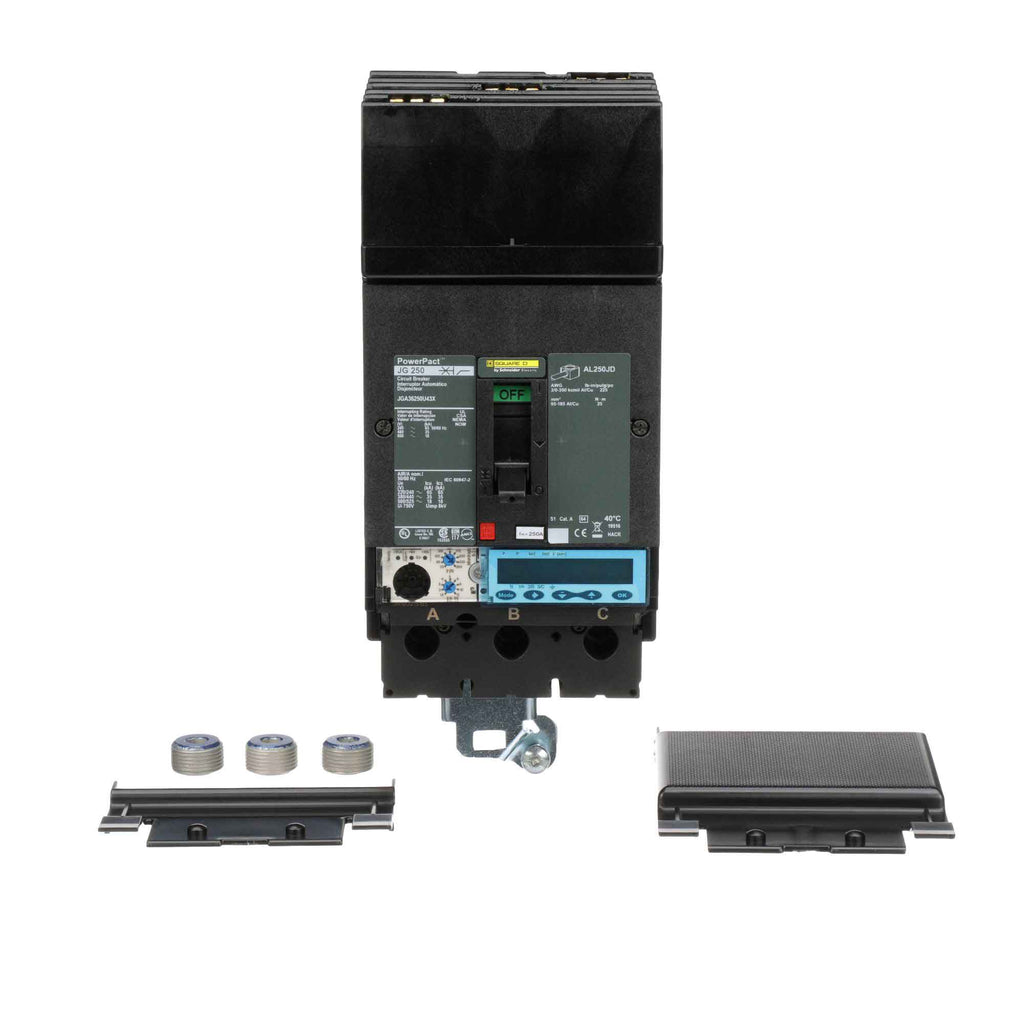

JGA36250U43X - Square D PowerPact J-Frame 250A 3-Pole 600V I-Line Molded Case Circuit Breaker with Micrologic 5.2A Trip

JGA36250U43X

JGA36250U43X is a 3-pole, 250A, 600V I-Line molded case circuit breaker from Square D's PowerPact J-Frame series, featuring Micrologic 5.2A electronic trip unit for reliable overcurrent protection and switching in AC systems. This breaker is designed for use in I-Line panelboards, offering high interrupting capacity and advanced protection features. It is suitable for distribution applications and provides compatibility with a wide range of accessories. The breaker is UL, CSA, and CE listed for safety and compliance.

• Part Number: JGA36250U43X
• Manufacturer: Square D
• Series/Frame: PowerPact J-Frame
• Amperage: 250A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Interrupting Rating: 18kA at 600V AC
• Mounting Type: I-Line Plug-In
• Trip Unit: Micrologic 5.2A (Electronic, LSI)
• Certifications: UL, CSA, CE
• Application: Distribution, AC Systems
• Continuous Current: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGA36250U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901147091
• GTIN : 00785901147091
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
